1080P HD Box Camera

This 1080P HD Analog Box Camera is a great drop-in replacement for older analog CCTV box cameras, especially if you're upgrading a legacy system that used traditional box-style enclosures. With its 2 Megapixel progressive scan CMOS sensor, this camera delivers Full HD 1080P video at a smooth 30 frames per second, providing clean, clear surveillance footage when paired with a compatible HD Analog DVR. Whether you're monitoring a warehouse, retail store, or industrial space, this camera provides crisp video in well-lit conditions and includes digital Wide Dynamic Range (WDR) to help balance scenes with shadows or glare from sunlight.

Unlike bullet or dome-style cameras, box cameras like this one offer greater flexibility for lens customization and professional-grade performance. This model accepts CS-mount security camera lenses rated for 2MP resolution, allowing you to select a fixed or varifocal lens that best fits your specific monitoring distance or field of view needs. The lens is not included, giving you freedom to customize.

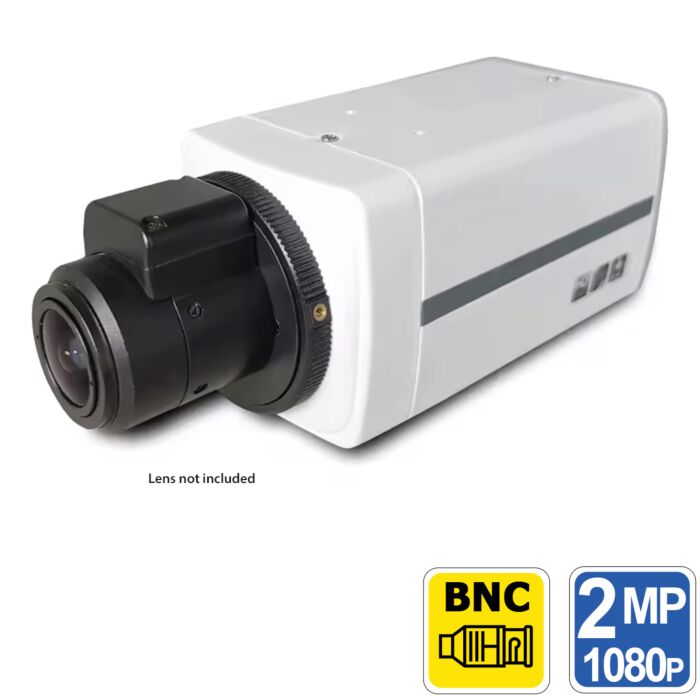

Below is an image of the front and side of the camera where the lens connect. There is a connection for an auto-iris lens on the side of the camera body.

While primarily intended for indoor use, this analog box camera can easily be used outdoors by pairing it with a weatherproof heater blower enclosure for colder environments. It supports both 24VAC and 12VDC input, making it a reliable option for new installations or retrofits, especially when used with a multi-channel power supply box.

Another advantage of this 1080P box camera is its dual video output. It supports HD over coax formats like HDCVI and HDTVI for high-resolution DVRs, and also provides support for analog CVBS output.

Whether you’re rebuilding a commercial-grade analog surveillance system or maintaining compatibility with legacy CCTV infrastructure, this camera offers excellent flexibility and performance in a professional box-style form factor.

Features

• 2MP HD Analog Box Camera
• 1080P Full HD Resolution at up to 30fps
• Dual Format Video Output:
  • HD over Coax: HDCVI, HDTVI or AHD
  • Standard Definition CVBS (Analog)
• Accepts 2MP CS-Mount Lens (sold separately)
• Accessible OSD (On-Screen Display) Menu via BNC Output
  • Adjust settings such as Exposure, White Balance, DNR, Day/Night Mode, and Backlight Compensation
• BNC Video Output for easy integration
• Dual Voltage Support: 12VDC or 24VAC
• Compatible with weatherproof camera housings for outdoor use
• Designed for use with HD Analog DVRs to take full advantage of HD resolution

What's included?

• (1) 2MP CCTV Box Camera

Specifications
