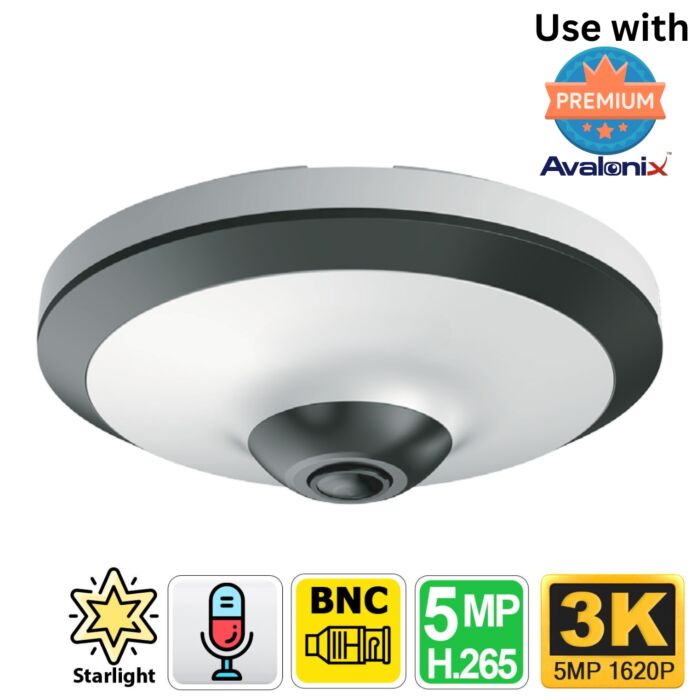

180 Degree and 360 Degree Wide Angle Dome Camera 5MP 3K

Experience true panoramic coverage with a single fisheye dome security camera by Avalonix. Built for simplicity and performance, this 5MP analog camera carries power and video up to 1500ft over standard RG59 coax cable - no network switches required. Mount it on the ceiling a full 360° surround view, or on a wall for a 180° panoramic sweep, and eliminate blind spots in retail spaces, lobbies, offices or any open area. Plus, with built‑in infrared LEDs, you’ll enjoy reliable night vision up to 30 ft, so nothing goes unseen once the lights go down.

Let's not forget that it also has a built-in mic for audio pickup from up to 30ft away. The audio gets combined with the video over the HD video output. We recommend using the HDCVI compatible DVRs from Avalonix for audio recording.

Avalonix’s built‑in dewarping engine available on Avalonix DVR recorders tackles the barrel distortion inherent to fisheye optics. Choose from ten dewarping modes - straight‑line, panoramic, quad‑view and more- right from your Avalonix XVR or DVR interface, or via the web client. Each mode’s field of view is fully adjustable, so you can tailor your live or recorded layout without stretching or cropping the image.

Since the camera uses a 1.4mm lens to provide a 360 degree Fisheye view, you can expect clear facial detail up to 10ft in daylight at 5MP. Below is a video sample from the actual camera.

For compatibility with other DVR brands, the camera can be switched between CVI, TVI, AHD, and CVBS video signals. If you do not have a CVI compatible recorder, please let us know which signal mode to set the camera to when purchasing. It can be set at 5MP or 4MP on either of the HD signal types. When set to CVBS it is 480P only with no audio.

Features

• 180 degree Fisheye Dome Camera
• 5MP Resolution
• Small and discrete design flushmount dome camera
• 360° surround view (ceiling/floor mount) or 180° panoramic view (wall mount)
• 1.4mm Lens provides a fisheye view
• Starlight Video with 0.005 Low Lux light sensitivity allows the camera to see in color at night
• 30ft IR night vision using 3 IR LEDs
• Day/Night sensor technology switches the camera to black & white in complete darkness
• Compatible with Avalonix XVR and DVR recorders supporting 5 MP or higher
• Audio output over CVI signal only
• OSD selectable resolution - requires compatible DVR
  • CVI: 5MP 20fps, 4MP 30fps
  • TVI: 5MP 20fps, 4MP 30fps
  • AHD: 5MP 20fps, 4MP 30fps
  • CVBS: 480P
• True WDR for glare compensation
• Works with RG59 Coax cable from a spool or HD Premade Siamese Cable
• Wall, Pole, Ceiling Mountable
• 12V DC Power Input
• Single BNC video output (signal switchable via OSD using compatible DVR)

What’s Included?

• (1) 5MP Fisheye Dome Camera
• (1) Mouning plate

Specifications
