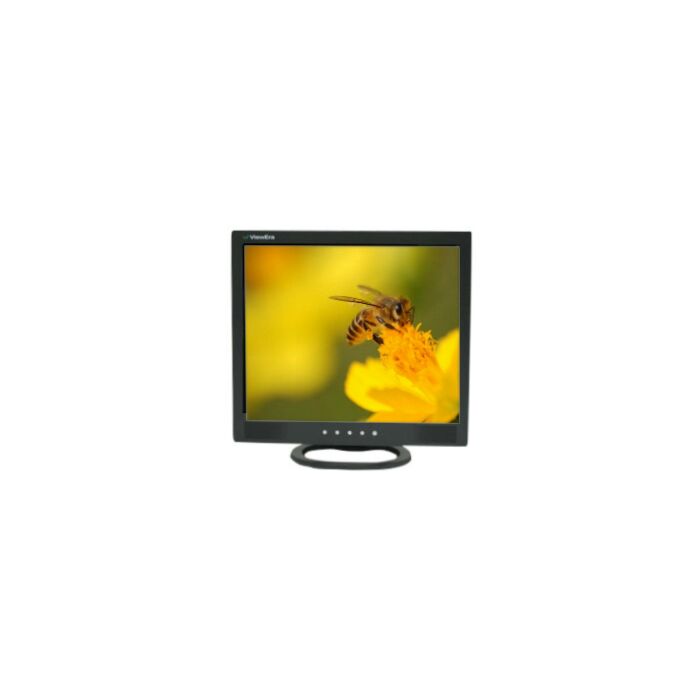

17" CCTV Monitor, BNC VGA Inputs

In stock
  • 17 inch LCD
  • 1280x1024 Resolution
  • For CCTV Use
  • BNC Video Input

17" LCD with BNC video input that is compatible with security cameras, time lapse VCRs, video multiplexers, quad video processors, and other industrial equipment that outputs in BNC. This CCTV Monitor is made of high quality components and built to last. It is very different from regular LCD TVs. It has a power supply external to the LCD screen, which is extremely important for 24/7 use so that the monitor does not heat up and burn out in a small period of time. It comes with a 3 Year Warranty against manufacturing defects.

There are also built-in speakers for audio, and a VGA input just in case you need to connect a computer or DVR. There is also a simple and friendly on-screen display menu to alter monitor settings. Let's not forget the super useful VESA mount on the back to mount this screen to any VESA compatible mount.


  • Sleek and compact design with Ultra Slim Bezel
  • Active TFT LCD
  • 17" Diagonal Screen
  • Max Resolution 1280x1024
  • 4:3 Aspect Ratio
  • Response Time 5ms
  • Contrast Ratio 1000:1
  • (1) BNC Video input
  • (2) RCA Audio Input (left & right channel)
  • (1) VGA Input
  • (1) BNC Video Output for relay
  • Built-in Speakers
  • 12V DC
  • VESA Wall Mount Compatible

What's Included?

  • (1) 17" CCTV Monitor, BNC VGA Inputs
  • (1) Power Supply
  • (1) VGA cable
  • (1) Audio Cable
  • (1) User Manual


LCD Display Size 17” Active Matrix TFT LCD Panel
Max Resolution 1280 (H) x 1024 (V) SXGA
Supported Resolutions VGA, SVGA, XGA, SXGA
Pixel Pitch 0.264mm
Color Depth 16.2 million
Contrast Ratio 1000 : 1
Brightness 250 cd/m²
Viewing Angle Horizontal: 160°, Vertical: 160°
Response Time 5 ms
Image Processing 3D Comb Filter and De-Interlace
Signal Input VGA Analog D-sub; Composite BNC
Audio-in (speaker) 3 Watts x 2
Connections D-sub VGA, Power DC IN, BNC IN x1, BNC OUT x1, Composite Audio-in (2x RCA)
Power Consumption 40 Watts (Max.); 3 Watts (standby)
Power Adapter AC Input: 100-240V~1.8A, 50-60HzDC
DC Output: 12V/5A
Front Control Menu, Down, Up, Auto Adjustment, Power
OSD Function Contrast, Brightness, Auto Image Adjust, H. Position, H. Phase, V. position, H. Width, Sharpness, Color Temperature, Hue, Saturation, Flesh tone,OSD position, Language, Recall, Volume
Monitor Size 14.80" (W) x 14.25" (H) x 5.5" (D)
Monitor Size Without Stand 14.80" (W) x 12.40" (H) x 1.89" (D)
Weight 8 lbs
Wall Mount VESA 75; Screw Spec: M4x8
Safety & EMI FCC-B, CE
Warranty 3 year
