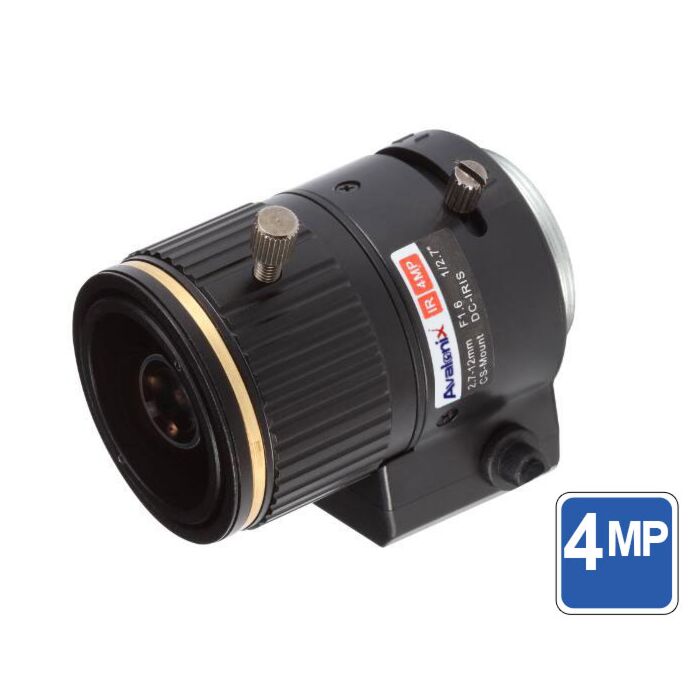

4MP 2.7-12mm Lens CS Mount

In stock
  • 4 Megapixel Lens
  • 2.7-12mm
  • Varifocal Lens
  • Auto Iris
  • CS Mount

This 2.7-12mm varifocal lens is made of high quality optics making it suitable for use with high definition box cameras up to 4MP in resolution. The lens can be adjusted by hand to set the desired zoom length and focus.


  • High Quality 4MP Varifocal Lens
  • For use with Box Cameras
  • Compatible with cameras up to 4MP resolution
  • 1/2.7" Auto Iris Lens F1.6
  • 2.7-12mm Manual Varifocal Lens
  • 102.6° to 29.9° Angle of View with a 1/2.7" image sensor
  • DC Drive Iris Control
  • CS mount compatible
  • Lens zoom can be easily adjusted by hand

What's Included?

  • (1) 4MP Varifocal camera lens


Image format1/2.7"
Focal length2.7-12mm
Lens pixel4MP
Field Angle(D*H*V)1/2.7''W: 137.8°(D)x102.6°(H)x74.3°(V)~T: 37.2°(D)x29.9°(H)x22.6°(V)
1/3"W: 120.1°(D)x91.3°(H)x66.3°(V)~T: 33.9°(D)x27.1°(H)x20.3°(V)
Minimum Object Distance 11.8" (0.3m)
IR CorrectionYes
Lens ControlFocusManual
Dimension33.7mm diameter x 57.6mm length
Weight3 oz
Operating temperature-22°F to 140°F
HumidityLess than 90% RH
More Information
Return Policy30 Days Return Policy
WarrantyNone for accessories
