SKU: JB130E
Series: Avalonix

Product overview

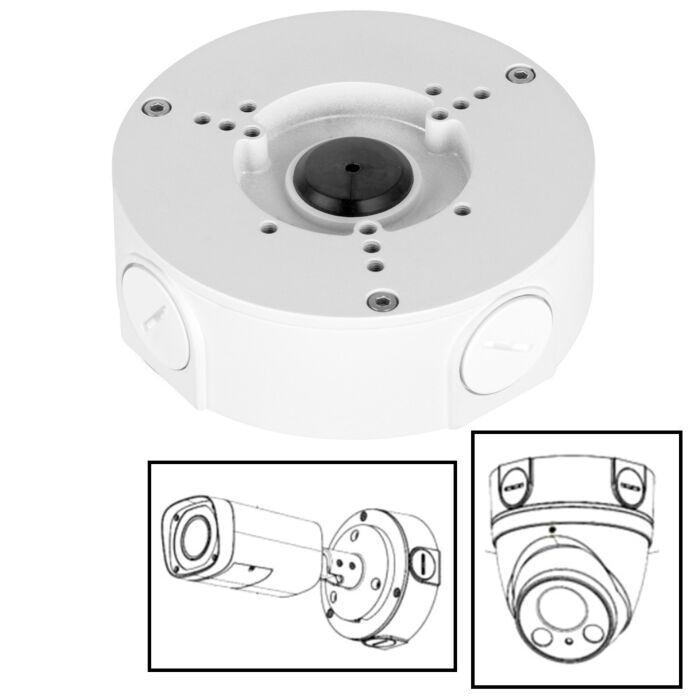

IP66 White Junction Box - Weather resistant aluminum junction box for select bullet and turret dome security cameras.

Pigtail Coverage - Helps conceal the camera pigtail and protect the connection area when properly installed.

Conduit Ready - G3/4 inch conduit thread cutout supports conduit-based wiring at the camera mount.

Wall Or Pole Mount Use - Can mount directly to a wall or connect to the compatible mini pole mount listed for this product.

Metal Camera Compatibility - Made for specific metal camera models with matching mounting holes.

Size And Load Rating - 4.88 inches diameter x 1.61 inches height with a 6.6 lb load rating.

Temperature Range - Rated for -40F to +140F operating temperature.

Compatibility Note - Check your camera description before ordering.

$25.00

In stock

  • 30 Day Returns
  • No Monthly Fees
  • US Based Support
  • Free Ground Shipping over $300 to Continental USA
Avalonix SeriesUse with Avalonix PoE cameras and NVRsMatched recorders, cameras and mounts from the same series set up together on one app.Browse Avalonix

Junction box for concealing the pigtail of select bullet and turret dome security cameras to protect against the weather and vandalism. This box is made of metal and when properly installed is weather resistant. It is compatible with specific security camera models that are metal with matching mounting holes to match the camera's mounting plate. There is also a cutout for connecting a conduit. This item is available in white only. It can be mounted directly on to a wall and connected to a conduit, or it can be connected to the following mini pole mount: Pole Mount Bracket Mini.

Please see your camera's description to determine whether it is compatible with this junction box.

Need the black version instead? See our black JB130E-B junction box for select cameras.

What's Included?

  • (1) Junction Box

Specifications

Material Aluminum
Dimensions 4.88" x 1.61" (diameter x height)
Conduit Thread Size G3/4"
Color White
Weather resistance IP66
Operating Temperature -40°F - +140°F
Humidity 0-90% RH
Load Bearing 6.6 lbs
Weight 0.77 lbs
Brand CCTVCameraWorld
Series Avalonix
Warranty None for accessories
Return Policy Accessories are non-returnable, non-refundable.
