PoE Power Splitter

SKU: POE101D

Write a Review

Availability: In stock

$15.00
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

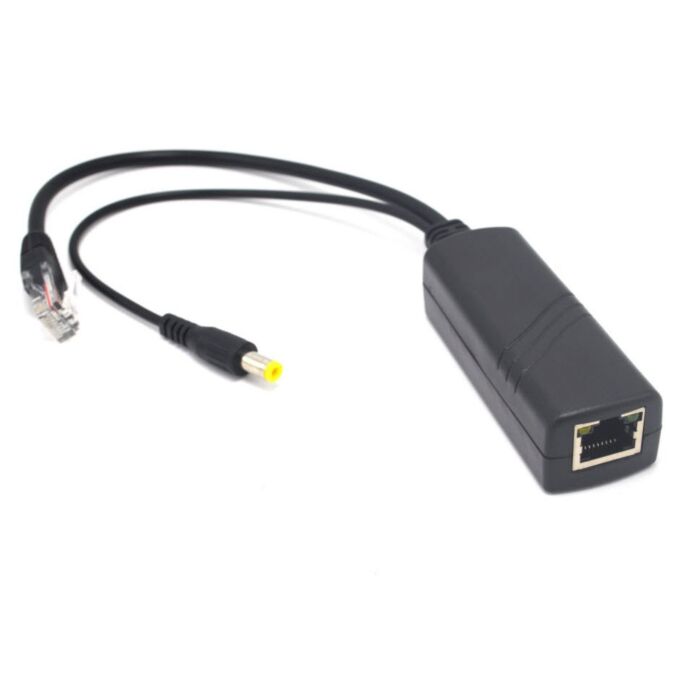

The Power Over Ethernet PoE Splitter is an adapter that allows conversion of 12V DC powered IP cameras in to PoE IP cameras. Usually IP Cameras are PoE and have an integrated PoE circuit board that allows the camera to accept power coming from a 802.3af/at compliant PoE switch. For cameras like our 5MP IP cameras with 300ft of night vision that don't have an integrated PoE power board and require 12V DC power, this adapter allows the user to convert the cameras to PoE so they can accept power from a PoE or PoE+ switch.

When used with a PoE+ switch, this adapter will allow up to 2A of 12V DC current output from its 2.1mm standard CCTV power plug, and it will support a 10/100Mbps network connection.

Pro user tip #1

In a scenario where you need to remove the Power component from a PoE signal, this splitter can come in handy. For example, to connect a PoE IP PTZ Camera that is PoE compatible to a PoE switch 150ft away, the PoE power provided from a switch will not be sufficient. The correct way is to connect the PTZ camera to the PoE switch for data transmission only, and provide power to the camera locally from a power outlet near the camera.

Pro user tip #2

If you have a PoE IP camera that has a malfunctioning PoE power board, you can use this PoE adapter to power the camera over PoE as long as the camera has a 12V DC power plug.



Features

  • PoE power splitter
  • Size 9 x 3 x 2 cm
  • DC cable length 14.5cm
  • RJ45 Plug cable length 14.5cm
  • Date transfer rate 10/100Mbps
  • Power Output DC12V 2A max
  • Complies with IEEE 802.3af/at Power over Ethernet
  • Data and power transmission distance up to 500ft



What's Included?

  • (1) PoE Power Splitter

More

More

Return Policy30 Days Return Policy
Warranty1 Year
