1080P HD Analog Bullet - Avalonix 2MP BNC bullet camera for upgrading coax systems to 1080P HD video with a compatible HD DVR.
103 Degree Wide View - The 2.8mm fixed lens provides a broad view for entrances, small lots, driveways, hallways, and general property coverage.
66ft Night Vision - Twelve IR LEDs provide black-and-white night video up to 66ft, with Smart IR to help reduce close-range glare.
HD Over Coax Setup - Supports HDCVI, TVI, AHD, and CVBS output when configured with compatible equipment or a UTC controller.
Outdoor Metal Housing - IP67 weatherproof metal construction, BNC video output, and 12V DC power make it suitable for indoor or outdoor analog camera installs.
Mini Bullet Camera Junction Box - White aluminum junction box for select mini bullet camera models.
Pigtail Protection - Helps conceal and protect the camera pigtail from weather exposure and tampering when installed correctly.
Conduit Ready - G1/2 conduit thread size for cleaner cable routing into the box.
Mounting Options - Can mount directly to a wall and can connect to compatible pole or corner mount brackets listed for this model.
Compact Size - Measures 3.54 x 1.42 inches with a 2.2 lb load rating and 0.53 lb product weight.
Compatibility Note - Front screws match select mini bullet camera brackets. Check your camera description before ordering.
PTZ Corner Mount - Outdoor corner mount bracket for select full size PTZ cameras.
Compatible Camera Types - Works with select analog, HDCVI, and IP based PTZ models with or without IR.
Not For Mini PTZ Cameras - This mount is not compatible with mini-size pan tilt zoom cameras.
Aluminum Construction - Aluminum bracket supports outdoor installations when mounted properly.
Load Rating - Supports up to 22 lbs, with 3.8 lb bracket weight.
Size Details - Dimensions are 9.6 x 6.7 x 5.5 inches.
Compatibility Note - Confirm your PTZ camera model and mounting pattern before purchase.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.

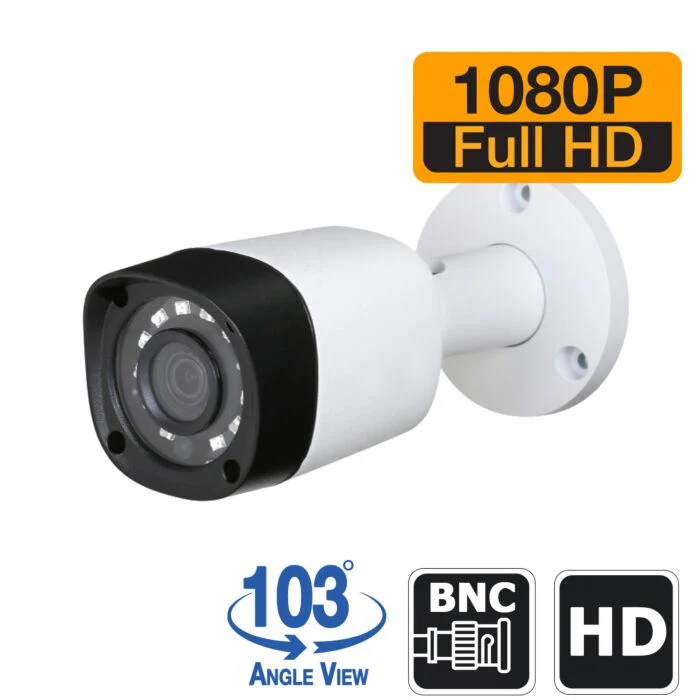

This 1080P HD Security Camera with Night Vision captures detailed 2MP video for home and business surveillance. While economically priced, it delivers a substantial upgrade over standard-definition analog cameras and many basic cameras included with low-cost security camera kits.
When paired with a compatible HD DVR, the camera sends high-definition video over traditional coax cable. With high-quality solid copper RG59 coax cable, the video signal can travel up to 1600 feet without the need to replace existing coax wiring with network cable. This makes the camera a practical choice for upgrading an existing analog security camera system to HD video while continuing to use compatible coax cabling.
The 2.8mm fixed lens provides a wide 103-degree angle of view for monitoring entrances, rooms, yards, storefronts, and other areas where broad coverage is important. Twelve high-intensity infrared LEDs provide up to 66 feet of infrared night vision, allowing the camera to continue monitoring in complete darkness.
The metal housing carries an IP67 weatherproof rating for outdoor installation and also works well indoors. The camera mounts to a wall, ceiling, or compatible pole-mount accessory. Its integrated mounting base helps protect the camera pigtail and cabling from easy access after installation.
HDCVI, HDTVI and AHD Compatibility
This multi-format analog HD camera works in HDCVI, HDTVI/TVI, and AHD modes at both 1080P and 720P resolution. The camera must be set to the video format supported by your DVR. A compatible DVR that supports camera video-mode configuration is required to change between HDCVI, HDTVI, and AHD.
By default, the camera ships configured for 1080P HDCVI mode. If your DVR requires HDTVI, AHD, 720P, or another supported configuration, contact CCTV Camera World after placing your order and ask us to configure the camera for your recorder before shipment.
You can request the correct video mode by replying to your order confirmation email, emailing us, submitting our contact form, or calling CCTV Camera World. Tell us the DVR model or the video format and resolution it requires so we can configure the camera correctly before it ships.
Works with Older Standard-Definition Analog Equipment in CVBS Mode
The camera also supports standard-definition CVBS analog video for compatibility with older analog DVRs, CCTV monitors, and other equipment that accepts composite video through a BNC or compatible RCA connection.
The camera must be placed in CVBS mode before it is connected to older standard-definition analog equipment. If you need CVBS output, contact CCTV Camera World after placing your order so we can configure the camera before shipment. Request CVBS configuration by replying to your order confirmation email, sending us an email, using our contact form, or calling us.
Features
2MP 1080P HD bullet security camera
Supports HDCVI, HDTVI/TVI, and AHD video formats
Supports both 1080P and 720P operation in HDCVI, HDTVI, and AHD modes
Ships configured for 1080P HDCVI by default
Video format and resolution can be changed using a compatible DVR
CCTV Camera World can configure the camera for your compatible DVR before shipment when requested after ordering
CVBS mode provides compatibility with older standard-definition analog DVRs and monitors
CVBS configuration must be requested after ordering when needed for legacy analog equipment
12 infrared LEDs
Up to 66ft infrared night vision
2.8mm fixed lens
103° angle of view
Facial identification up to 16ft in well-lit conditions
Can the 1080P HD Bullet Camera with Night Vision SKU: HD2452 Series: Avalonix, connect directly to a monitor for live viewing and if so, do you sell the adapters that would be necessary to connect to an HDMI port? Also, is this camera GSA compliant?
