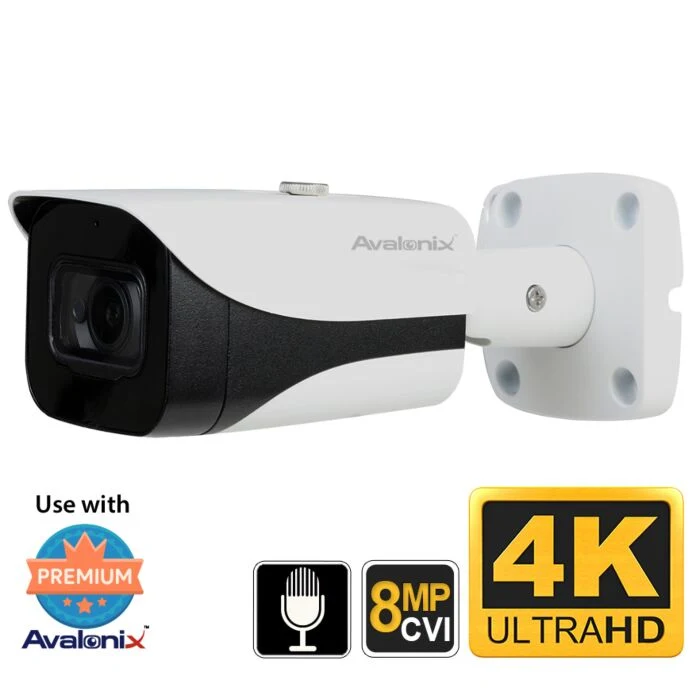

4K HDCVI Bullet Security Camera - Avalonix 8MP analog HD-over-coax bullet camera for upgrading compatible coax DVR systems to 4K video.
87 Degree View and 130ft Night Vision - The 3.6mm fixed lens provides an 87 degree view, while built-in IR supports black-and-white night video up to 130ft.
Starlight Low-Light Video - Starlight technology helps the camera remain in color in low-light scenes with available ambient light before switching to IR in darkness.
Built-in Audio - Integrated microphone captures nearby audio when supported by the connected DVR and enabled where legal.
HD Over Coax Upgrade - Sends 4K HDCVI video over quality RG59 coax to a compatible 4K DVR, with CVBS output available through OSD settings for supported use.
Outdoor Coax Camera Features - Includes IP67 weather resistance, metal housing, Smart IR, WDR, 12V DC power, and wall, ceiling, or pole mounting options.
IP66 White Junction Box - Weather resistant aluminum junction box for select bullet and turret dome security cameras.
Pigtail Coverage - Helps conceal the camera pigtail and protect the connection area when properly installed.
Conduit Ready - G3/4 inch conduit thread cutout supports conduit-based wiring at the camera mount.
Wall Or Pole Mount Use - Can mount directly to a wall or connect to the compatible mini pole mount listed for this product.
Metal Camera Compatibility - Made for specific metal camera models with matching mounting holes.
Size And Load Rating - 4.88 inches diameter x 1.61 inches height with a 6.6 lb load rating.
Temperature Range - Rated for -40F to +140F operating temperature.
Compatibility Note - Check your camera description before ordering.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
PTZ Corner Mount - Outdoor corner mount bracket for select full size PTZ cameras.
Compatible Camera Types - Works with select analog, HDCVI, and IP based PTZ models with or without IR.
Not For Mini PTZ Cameras - This mount is not compatible with mini-size pan tilt zoom cameras.
Aluminum Construction - Aluminum bracket supports outdoor installations when mounted properly.
Load Rating - Supports up to 22 lbs, with 3.8 lb bracket weight.
Size Details - Dimensions are 9.6 x 6.7 x 5.5 inches.
Compatibility Note - Confirm your PTZ camera model and mounting pattern before purchase.
With 4K HD over Coax cameras you are no longer restricted to using IP camera systems to get amazing detail. CCTV Camera World's new 4K HDCVI cameras allow for the best image quality security cameras have to offer without changing existing coax wiring. This 8MP Bullet Camera can transmit 4K video up to 2200ft when used with RG59U coax cabling from a roll that is good quality, i.e. the video conductor is RG59U 20awg solid copper wire. Note that economical pre-made siamese wire that is thiner than RG59U will not work with 4K HD over Coax Cameras. To decode the video signal from this 4K surveillance camera, our 4K HDCVI DVRs are required; you cannot take a CVI camera and connect it straight to a monitor or an older recorder.
In addition to 4K resolution video capture, this camera features Starlight technology that allows the camera to see in color in very low light. Starlight technology adjusts the digital shutter speed dynamically when the camera senses low light conditions, providing color night vision. In darkness the camera will switch to black & white mode assisted by its on-board infrared for night vision recording.
The camera's a 8MP sensor and 3.6mm fixed lens captures a 87 degree angle of view for recognizing a face up to 50ft away, like the example in our security camera guide. The Ultra HD 4K video recording will give you twice the clarity of 2K 4MP security cameras, giving digital zoom the power to magnify recorded or live video with less pixelation.
The camera also includes true Wide Dynamic Range (WDR) to decrease glare in situations where there is different lighting in the foreground and background. The camera has two super-IR LEDs for infrared night vision up to 130ft when viewing at night. Remember facial detail is up to 50ft in good lighting conditions. With a weatherproof rating of IP67 and metal design, the camera can be mounted almost anywhere without worry.
Features
8MP HDCVI Bullet Camera
Starlight technology for improved color performance in low light
Supports a variety of video resolutions
HDCVI: 4K 15fps, 6MP 20fps, 4MP 30fps**
TVI/AHD: 5MP 12fps
CVBS: 30fps D1 / 960H
2 Super-IR LED provides up to 130ft night vision
Smart IR technology to minimize IR glare
3.6mm fixed lens provides 87° angle of view
Built-in mic for audio listening up to 30ft away
IP67 weatherproof rating
Metal construction
Wall, ceiling, pole mountable
12V DC 1A power input required
One BNC video out
HDCVI or Analog CVBS Switchable video output from OSD
4K Security DVR that is HDCVI compatible is required for use and for OSD control
*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification. **Recording and display resolution/fps dependent on your 4K DVR. Not all DVRs support the highest frame rates available from the camera.
