Junction Box for Fixed Lens Bullet and Dome Cameras, White
Junction Box for Fixed Lens Bullet and Dome Cameras, White
SKU: SCJB
White Camera Junction Box - Metal junction box for select fixed lens bullet and turret dome camera installations.
Weather Resistant Design - Helps protect camera pigtails and cable connections from outdoor exposure when properly installed.
Clean Installation - Conceals wiring behind compatible cameras and gives wall or ceiling mounts a more finished appearance.
Conduit Connection - Built with a G3/4 conduit thread cutout for installations that route cable through conduit.
Compact Metal Body - Aluminum construction measures about 4.13 x 2.20 inches (10.5 x 5.6cm).
Compatibility Note - Check the camera description before ordering. This box is for select models with matching base plate holes.

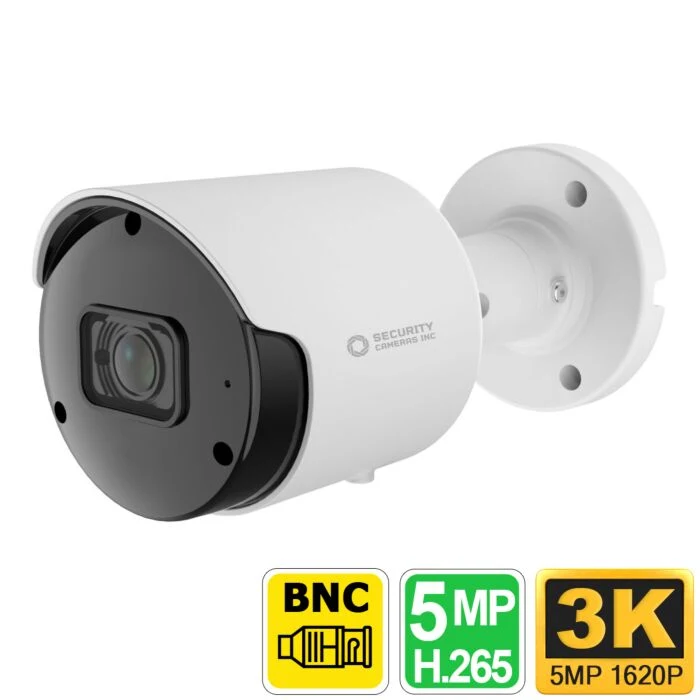

This 5MP HD Security Camera with Night Vision captures video in 3K 5MP resolution, providing image quality on par with that of IP cameras. An excellent feature of this
3K Analog security camera is its compatibility with commonly available RG59 coax cable. Using a high-quality solid copper conductor RG59 coax cable, the camera's
HD security over Coax technology allows the video signal to be run up to 800 feet without signal loss using a compatible HD-DVR recorder. It is a great option for people who want to upgrade to an HD security camera system but do not want to incur the cost of rewiring
their home or business with network cabling for IP cameras.
Whether you are upgrading an existing security camera system or putting together a brand-new one, this 5MP HD over Coax camera is a great choice. The 3.6 mm fixed
lens on this bullet camera captures a wide 87 degree field of view when in 5MP mode. You can keep watch over your property day & night thanks to the high-intensity super-infrared LED that provides night vision for distances of up to 100 feet.
The camera's metal construction makes it suitable for use in harsh weather conditions without protection from an overhang or eave. With the exception of a hurricane or tornado, you can rely on it to keep functioning no matter the
conditions. Mounting options for the camera include a wall, ceiling, or pole. Due to its compact size, it can be used anywhere, including inside. The camera bracket protects the camera pigtail from wire snipping and tampering.
The camera also has an on-screen display menu (OSD) that can be controlled using a DVR or XVR when the camera is in HD mode. The OSD
allows fine control of the video brightness, contrast, gain, and other key video features.
This camera supports a variety of video signal types thanks to its 4-in-1 switchable TVI/ AHD / CVI / CVBS technology. You can choose 5MP in TVI or AHD mode, 4MP in HDCVI mode, or analog CVBS video output for compatibility with a standard-definition older 480P, D1, or 960H DVR. To switch the video signal type, there is a convenient dip-switch located on the pigtail.
Compatibility note: the camera does support 1080P mode in CVI/TVI/AHD mode but requires a compatible 5MP DVR to access the OSD menu to lower the resolution. If you have a DVR that supports a max of 1080P resolution, please contact us after placing the order to set it to the desired resolution. Otherwise the camera will ship in 5MP mode.
*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.
