Small Grey Junction Box - Grey metal junction box for compatible small dome security camera installs.
HD2462 Compatibility Note - Can fit HD2462 cameras, though the color may not be an exact match.
Cable Protection - Helps cover camera cabling and pigtails at the mounting point.
Metal Construction - Small metal body suited for clean dome camera mounting when compatible.
Drillable Install Option - Installers may drill their own holes to accommodate other smaller camera models when appropriate.
Color Option - Grey finish, with a white version also available separately.

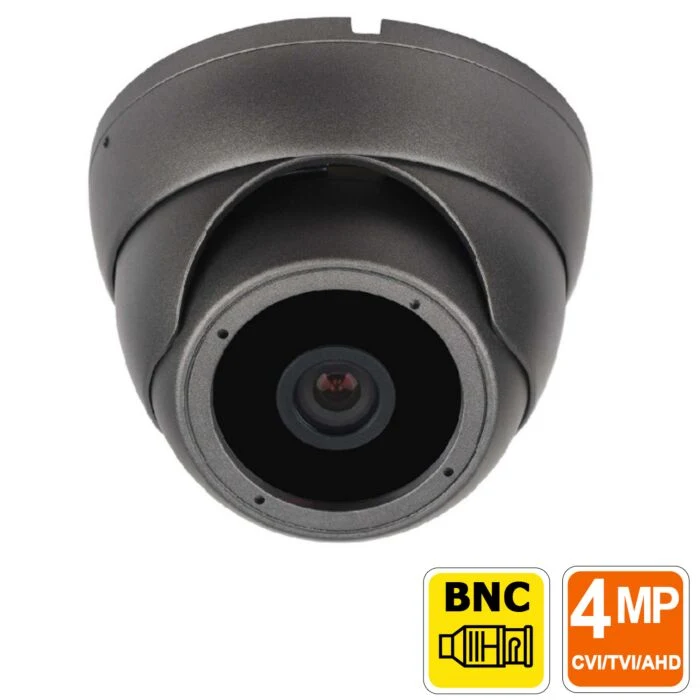

This is an indoor turret dome camera with 4MP sensor can be used with a HD security DVR that support CVI/TVI/AHD signal types. There is a joystick on the camera pigtail that let's you easily switch the signal type. The camera provides a 75 degree view, and up to 75ft of night vision in complete darkness. If you're using it in HD mode, you can expect facial detail up to 30ft from the camera in lit conditions. It can be used in a HVAC controlled indoor environment with temperature between 50°F and up to 90°F.
Please note this indoor camera must be used in a temp range of 68 to 80 degrees. It is not rated for cold weather.
Features
4MP Resolution
Easy to mount turret dome design
Supports Real Time video at 4MP
Video signal switchable by joystick on pigtail
BNC Video Output
4MP TVI, CVI , or AHD
IR Night Vision up to 75ft
Smart IR to minimize glare
3.6mm fixed lens
75° Wide angle of view
IR On/Off Control
2D Noise Reduction
BLC/HLC/DWDR
Indoor Use Only in temperature controlled environment
Metal construction
Wall, ceiling mountable
12V DC 0.5A power input required
Clearance item - all sales final, test on video to be in working order before shipment
What’s Included?
(1) 4MP Indoor Turret Dome Analog Security Camera
Specifications
Image Sensor
1/3" Progressive Scan CMOS
Resolution
4 MP
Effective Pixels
2688 (H) x 1520 (V)
Frame Rate
30fps 4MP
Shutter Speed
1/30 - 1/100,000s
Lens
3.6mm Fixed Lens
Angle of View
75°
Distance to Recognize*
50ft
Distance to Identify*
30ft
Minimum Illumination
0.1 Lux, 0 Lux IR On
IR Distance
75ft max
IR Control
Auto / Manual
Day/ Night
Auto (ICR) / Manual
Backlight Compensation
BLC / HLC / DWDR
White Balance
Auto, Manual
Noise Reduction
2D
Smart IR
Auto, Manual
Video Connector
1x BNC
Video Signal
HDCVI, TVI, AHD
Microphone
None
OSD
Via Joystick on Cable
Operating Temperature
+50°F to +90°F
Weather Resistance
None
Construction
Aluminum
Dimensions
3.68" x 3.13"
Power
12V DC 5W
*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.
