Wall Mount Arm Bracket - For installing compatible turret and dome cameras on walls where ceiling mounting is not practical.
Clean Camera Installation - Arm style design positions the camera away from the wall and gives room to conceal pigtail connectors.
White Aluminum Construction - Solid aluminum body with a white finish to match many camera housings.
Outdoor Or Indoor Use - Suitable for exterior walls, garage walls, fence posts, columns, and similar mounting surfaces.
Compatibility Note - Intended for select compatible camera models. Check the camera page before ordering.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.

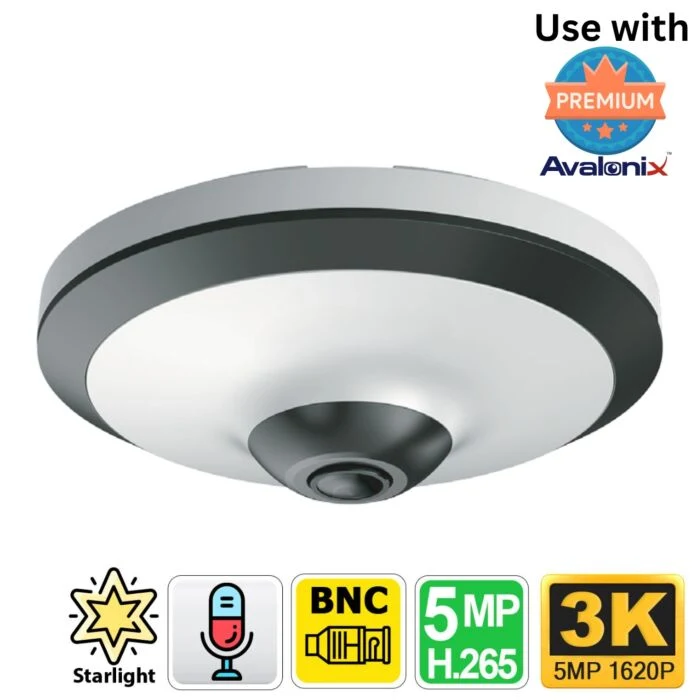

Experience true panoramic coverage with a single fisheye dome security camera by Avalonix. Built for simplicity and performance, this 5MP analog camera carries power and video up to 1500ft over standard RG59 coax cable - no network switches required. Mount it on the ceiling a full 360° surround view, or on a wall for a 180° panoramic sweep, and eliminate blind spots in retail spaces, lobbies, offices or any open area. Plus, with built‑in infrared LEDs, you’ll enjoy reliable night vision up to 30 ft, so nothing goes unseen once the lights go down.
Let's not forget that it also has a built-in mic for audio pickup from up to 30ft away. The audio gets combined with the video over the HD video output. We recommend using the HDCVI compatible DVRs from Avalonix for audio recording.
Avalonix’s built‑in dewarping engine available on Avalonix DVR recorders tackles the barrel distortion inherent to fisheye optics. Choose from ten dewarping modes - straight‑line, panoramic, quad‑view and more- right from your Avalonix XVR or DVR interface, or via the web client. Each mode’s field of view is fully adjustable, so you can tailor your live or recorded layout without stretching or cropping the image.
Since the camera uses a 1.4mm lens to provide a 360 degree Fisheye view, you can expect clear facial detail up to 10ft in daylight at 5MP. Below is a video sample from the actual camera.
For compatibility with other DVR brands, the camera can be switched between CVI, TVI, and AHD video signals. If you do not have a CVI compatible recorder, please let us know which signal mode to set the camera to when purchasing. It can be set at 5MP or 4MP on either of the HD signal types.
Please note this camera cannot be used with old school standard definition DVRs that are CVBS.
