Wall Mount Arm Bracket for Security Cameras

Product questions Write a review

Request volume pricing

Loading secure form…
SKU: JB203W
Series: Avalonix

Product overview

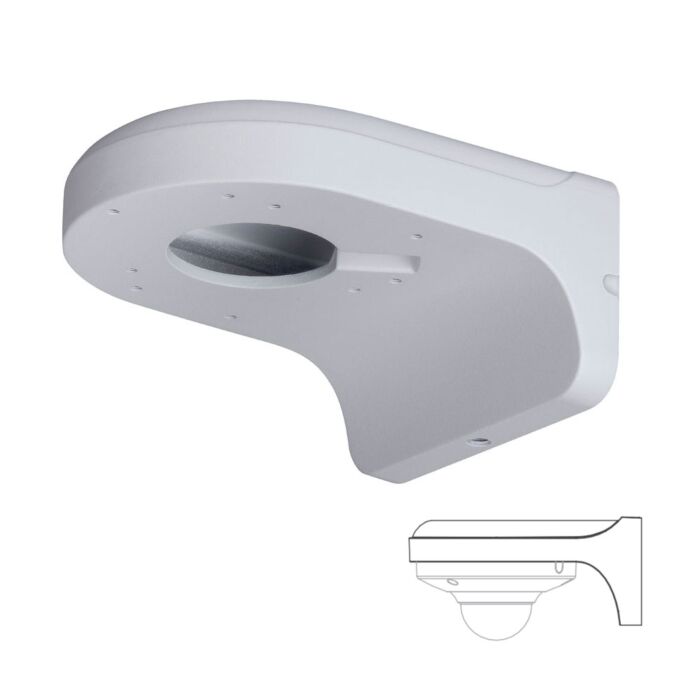

Wall Mount Arm Bracket - For installing compatible turret and dome cameras on walls where ceiling mounting is not practical.

Clean Camera Installation - Arm style design positions the camera away from the wall and gives room to conceal pigtail connectors.

White Aluminum Construction - Solid aluminum body with a white finish to match many camera housings.

Outdoor Or Indoor Use - Suitable for exterior walls, garage walls, fence posts, columns, and similar mounting surfaces.

Compatibility Note - Intended for select compatible camera models. Check the camera page before ordering.

$26.00

In stock

  • 30 Day Returns
  • No Monthly Fees
  • US Based Support
  • Free Ground Shipping over $300 to Continental USA
Avalonix SeriesUse with Avalonix PoE cameras and NVRsMatched recorders, cameras and mounts from the same series set up together on one app.Browse Avalonix

The Avalonix White Wall Mount Arm Bracket is designed for installing turret and dome security cameras on a wall when ceiling mounting is not practical. The arm-style design positions the camera slightly away from the mounting surface while providing room to conceal the camera’s pigtail connectors inside the bracket.

Made from solid aluminum and finished in white to match most camera housings, this bracket helps create a clean installation while protecting exposed connectors from weather and damage. It also helps maintain the proper viewing angle when installing cameras on vertical surfaces such as exterior walls, garage walls, fence posts, and building columns.

This mount is intended for use with Avalonix Premium Series cameras, including turret and dome security cameras. These cameras are typically ceiling mounted, but the wall arm bracket makes it easy to install them on vertical surfaces.

If the mounting holes on your camera do not line up with the factory holes on the bracket, the aluminum housing can be drilled using a metal drill bit to create a custom mounting pattern.

If you need this bracket in black, see the Avalonix Black Wall Mount Arm Bracket.

Installer mounting an Avalonix turret security camera to a white wall junction box bracket on a post

Why Install a Camera with a Wall Mount Arm?

Many turret and dome cameras are designed primarily for ceiling installations. When installing on a wall instead, a dedicated arm bracket helps keep the camera properly oriented and provides room to store the wiring connections.

  • Keeps the camera properly aligned on vertical surfaces
  • Provides space to hide pigtail connectors and wiring
  • Improves the camera’s viewing angle
  • Creates a cleaner installation
  • Reduces stress on the camera cable

This bracket is commonly used for installations on building exteriors, garage walls, storefronts, warehouses, and fence posts.

Camera Compatibility

The bracket works with many turret and dome security cameras, particularly Avalonix Premium Series cameras that are typically ceiling mounted but need to be installed on a wall.

If the camera mounting holes do not line up with the bracket holes, the aluminum housing can be drilled to create a custom mounting pattern.

Features

  • Wall Mount Arm Bracket
  • Durable Aluminum Construction
  • Pass-through outlet for camera pigtail
  • Compatible with turret and dome security cameras
  • Suitable for indoor or outdoor installations
  • White finish to match white camera housings

What's Included

  • (1) Wall mount arm bracket
  • Camera mounting screws

Specifications

Material Aluminum
Dimensions 6.3” x 4.8” x 3.0”
Color White
Operating Temperature -40°F - +140°F
Humidity 0-90% RH
Load Bearing 2.2 lbs
Weight 1.1 lbs
Brand CCTVCameraWorld
Series Avalonix
Warranty None for accessories
Return Policy Accessories are non-returnable, non-refundable.
