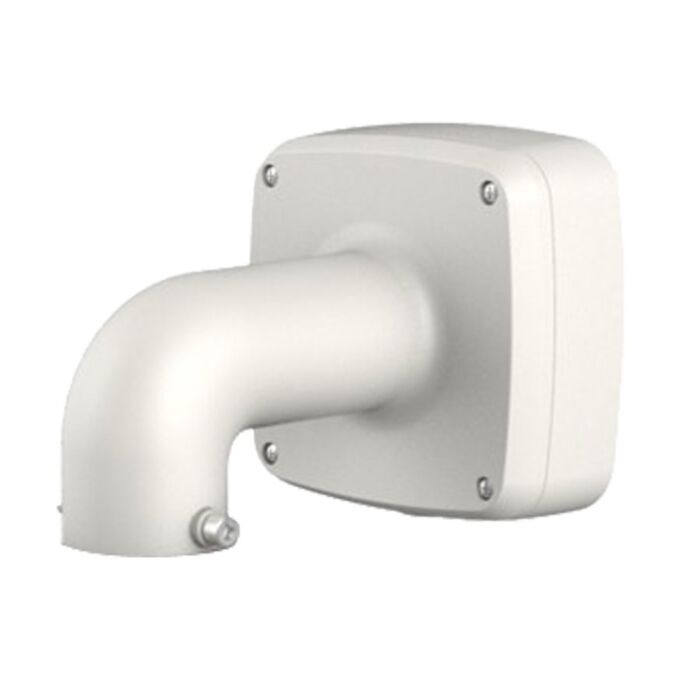

Wall Bracket for Mini PTZ IP Camera
$51.00
Overview
Wall Bracket Arm - Wall mount arm bracket for select mini PTZ and dome cameras carried by CCTV Camera World.
Mounting Plate Required - Requires a compatible mounting plate such as JB100, JB101, JB102, or JB103, depending on the camera.
Outdoor Ready Design - IP66 rated bracket suitable for outdoor use when properly installed with compatible equipment.
Aluminum Construction - White aluminum arm with pass-through outlet for the camera pigtail.
Load Rating - Rated for up to 8.8 lbs when mounted on a suitable surface.
Dimensions - Measures about 5.28 x 5.25 x 7.38 inches, width by height by depth.
Thread Detail - Uses G3/4 inch pipe thread.
Wall Bracket for select Mini PTZ Cameras and dome cameras that we carry. It converts a ceiling mount PTZ or dome camera to a wall mount for outdoor use. To connect the camera to this mount, and additional mounting plate is required. You can choose from the following mounting plates. Please check the individual product description for compatibility with this mount.
Compatible mounting plates:
- Wall Mount Adapter for Dome Cameras, JB100
- Wall Mount Adapter, JB101
- Hanging Mount Adapter, Wide, JB102
- Hanging Mount Adapter, JB103
Features
- Wall Mount Arm Bracket
- Aluminum Construction
- Pass thru outlet for camera pigtail
- Suitable for indoor or outdoor use
What's Included?
- (1) Wall bracket
Specifications
| Material | Aluminum |
| Dimensions | 5.28” x 5.25” x 7.38” (W x H x D) |
| Pipe thread | G 3/4” |
| Weight | 1.54 lbs |
| Load bearing | 8.8 lbs |
| Color | White |
| Protection | IP66 |
| Operating temperature | -40°F - 140°F |
| Humidity | 0-90% RH |
| Brand | Avalonix |
|---|---|
| Warranty | None for accessories |
| Return Policy | Accessories are non-returnable, non-refundable. |
