16 Channel Video Balun Transceiver, Passive HD

SKU: HD16PR1U

Write a Review

Availability: In stock

$119.00
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

16 Channel Passive Balun Transceiver that can function as a transmitter or receiver for 16 security camera video signals sent over CAT5 or other twisted pair cabling. You can use two of these as a pair to send and receive video signals, or you can use it with a single channel HD video balun. There are two different configurations that this balun transceiver can be used in:

  1. You can have passive video baluns acting as video transmitters from each camera and send up to 16 camera signals to this unit acting as the receiver. The BNC out from this unit will plug in to a DVR.
  2. You can run video longer distances by connecting two of these balun receivers in series using the RJ45 connections on them, and then terminate the video to BNC outputs on the balun receiver located closest to the DVR.

The video transmission distance possible when using this balun transceiver is determined by the signal type of the security cameras being used:

  • Analog CVBS 1300ft
  • AHD or HD-CVI 720P 1050ft
  • AHD or HD-CVI 1080P 750ft
  • TVI 720 or 1080P 623ft

This 16 Camera balun transceiver is also rack mountable using the included ears and simplifies the cabling in a large CCTV project. It is also a must have for long distance security camera video transmission in installations done in industrial locations such as factories where the 800ft limitation of analog coax cable is not going to cut it.

On one side of the transceiver are screw terminal inputs and RJ45 ports for video input/output, and on the other side are 16x BNC outputs for terminating the video to a BNC to connect to a DVR. Be sure to purchase some BNC patch cables for your install.

What's Included?

  • (1) 16 Channel Passive Balun Transceiver
  • (1) Rack-mount ears

Specifications

Transceiver Type16 Channel Passive Balun Transmitter / Receiver
VideoFrequency Response Range: DC-6MHz;  Common-Mode / Differential-Mode rejection: 15KHz-6MHz 60dB type
Wire Type24AWG UTP CAT5 or higher
ImpedanceUTP or Connection or RJ-45: 100Ω;  BNC Coax:75Ω
Power Input None required
Dimensions

17" x 3.3" x 1.7"

Weight4 lbs

More

More

Return Policy30 Days Return Policy
Warranty1 Year

Reviews

Write Your Own Review

You're reviewing: 16 Channel Video Balun Transceiver, Passive HD

How do you rate this product? *

 1 star2 stars3 stars4 stars5 stars
Quality
Price
Value

Product Questions

Ask a question... Type Here

Total 3 question(s)

Can this be used with coax cable instead of cat5?

Question by: Walter on: 2016-08-10

This is a video balun transceiver. The premise for this product is to convert signals runs run over CAT5e using video baluns to coax.

Answer by: Tech Support on: 2016-08-31

Is this price for one or a pair of the transceiver?

Question by: ken on: 2016-11-08

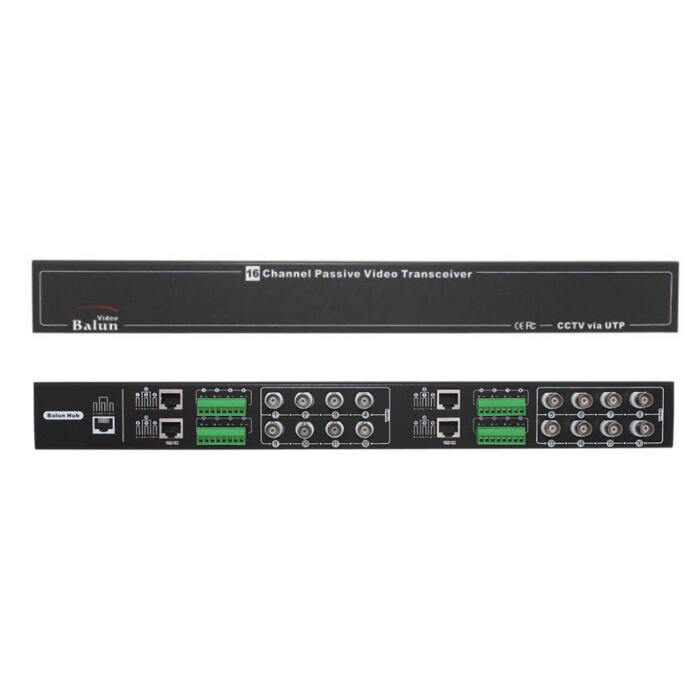

This is one transceiver. The picture show the front and back of the unit.

Answer by: Tech Support on: 2016-11-08

Is the Transceiver be mounted to a standard 19" server rack?

Question by: Lou on: 2017-02-17

Depends on the depth of your rack. The unit is a standard width for a rack.
