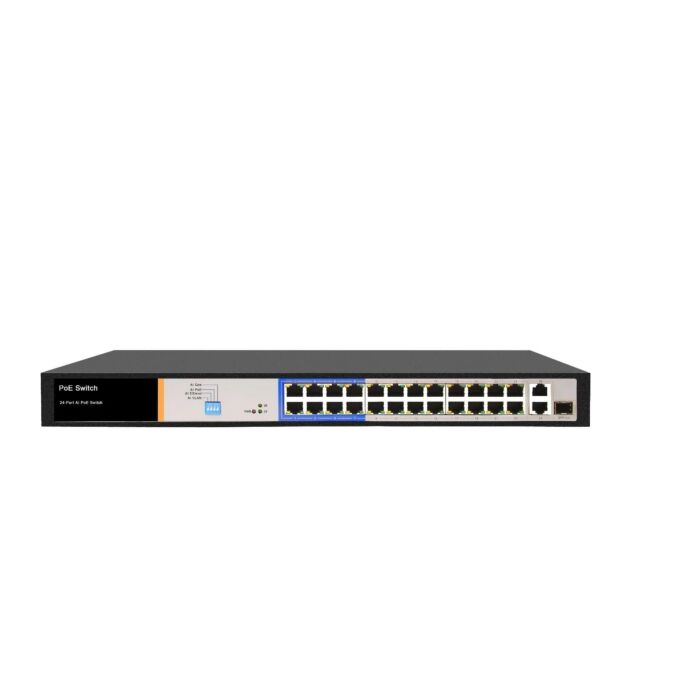

The High Power 24 port PoE+ Switch is an unmanaged PoE switch that requires no configuration. Simply connect your PoE cameras to any of the 24 PoE+ ports on the switch, and connect the switch to your NVR or router using one of the two Gigabit uplink LAN ports. This high power PoE Plus Switch can supply data and power to up to 24 network based devices that are 802.3af or 802.3at Power over Ethernet compliant. Just like all of the PoE switch models we carry, this 24 port switch makes it possible to consolidate power and data for IP cameras in to one network cable for easy setup of an IP camera system.


  • 24 10/100 Mbps PoE+ Ports
  • Max 30 Watts per PoE+ port
  • 240W Total PoE Power Output
  • 2 Gigabit 10/100/1000 Mbps Uplink Ports
  • IEEE 802.3x Flow control
  • Power transmission up to 328ft
  • 4 KV surge protection for PoE ports
  • Rack Mountable 1U metal case

What's Included?

  • (1) 24 Port PoE+ Switch 240W
  • (1) Power Cord
  • (1) Pair of Rack Mount Ears



PoE Ports24, 10/100 Mbps RJ45 ports
Uplink Ports2, 1Gbps RJ45 Ports
Network ProtocolsIEEE802.3, 802.3u, 802.3x, 802.3af, 802.3at
Switching Capacity8.8Gbps
Max. Forwarding Rate6.55Mpps
High Priority PortsPorts 1-8
Forwarding ModeStore-and-forward
MAC Address Table4K
Flow ControlIEEE802.3x full duplex
PoE StandardIEEE802.3af, IEEE802.3at
PoE Power OutputPoE+ (up to 30W)

PoE Power Budget240W
LED IndicatorsPWR, PoE, Link/Act LED
Input voltage100V~240V AC, 50/60Hz
Power consumption440W Max
Surge Protection4KV
Operating Temperature32°F – 104°F
Working Humidity10 - 90% (non-condensing)
Storage Temperature-40°F – 158°F
Relative humidity5 - 90% (non-condensing)
Thermal methodsBuilt-in Fan
Rack MountableYes, includes rack mount ears
Dimensions17.4 x 11.3 x 1.7 inches (W x D x H)



Return Policy30 Days Return Policy
Warranty1 Year


Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

You need to log in to ask a question.

Total 1 question(s)

24POEU We see that this unit has two fiber uplink ports. Are they simply SFP sockets or are they a specific connection that's not stated?

Question by: jeff on: 2018-09-05

They are SFP ports.

Answer by: Tech Support on: 2018-09-10
