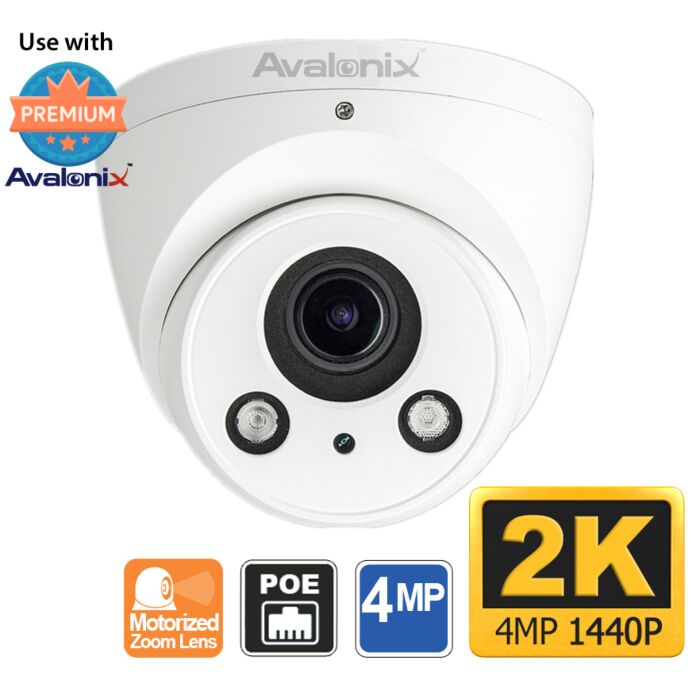

2K Turret Dome Camera with Motorized Zoom Lens

SKU: IP4DEMZVP

Write a Review

Availability: In stock

Regular Price: $349.99

On Sale: $299.99

If you would like on-board storage, you can choose to have a factory installed SD card.

You can choose from the following optional brackets to aid in installation.

  • Junction Box for Dome Cameras
  • Wall Mount Arm Bracket for Security Cameras
  • Pole Mount Bracket Mini
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2 days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

This 2K Turret Dome Camera is an economical yet powerful Eyeball Turret type dome security camera. It provides vivid and detailed video that will simply amaze thanks to its 4MP CMOS image sensor. With a 2.7-12mm motorized zoom lens you can have anywhere from a wide 100° angle of view to a telescoped 35° angle of view. The 2K 1440P resolution video provides great detail allowing the user to digitally zoom into an image to identify a face, even after the video has been recorded. When set at the widest angle of view, you can expect facial detail up to 30ft away, and when the motorized optical zoom lens is set to full zoom power you can expect facial detail up to 70ft away.

Its video capabilities don't end there. It has two Super IR LEDs that aid the camera to see in low light or darkness up to 200ft away. All of our surveillance cameras come with some standard features that set them apart, and one those features is Smart IR technology to intelligently reduce IR intensity to minimize IR glare on a nearby object in the foreground. This IP camera also features True WDR for glare compensation, and it features H.264+ video compression that allows bandwidth savings up to 50% compared to standard H.264. To take advantage of this feature you would need to use one of our NVR with H.264+ support.

It is a rugged dome camera and can be mounted indoors or outdoors with its IP67 weather protection rating. You don't need an eaves or other structure to protect it from the elements. Since it is an eyeball style dome it can be mounted directly to a wall or ceiling. We also have optional junction boxes and mounts available for the professional user.

Like all of our IP cameras, it can be viewed remotely over the internet from your smartphone, computer, or NVR. It is also available with a factory installed internal microSD card to function as a standalone camera by using video based motion detection to record events of interest. Since it is ONVIF compatible, you can also record its video stream to many software platforms on the market. But if you want to control and take advantage of all the features this camera has to offer, then you will need a compatible NVR that we carry. By using one of our NVR recorders you will be able to easily control the optical zoom lens, set camera parameters like encoding settings, and take advantage of the motion detection feature of the camera.

Generally powered via PoE (Power over Ethernet) this camera only needs one network cable to communicate zoom controls, send video and data, and power the camera from a PoE switch or one our PoE NVRs.

Features

  • Turret Dome IP Camera
  • H.264+, H264 Video Encoding
  • H.264+ provides up to 50% bandwidth savings compared to standard H.264
  • Dual Video Streams: Main Stream, Sub Stream
  • 1/3" 4MP Progressive Scan CMOS Image Sensor
  • Selectable recording resolution:
    • 20 fps at 4MP (2688 x 1520)
    • 30 fps at 3MP (2304 x 1296)
    • 30 fps at 1080P (1920 x 1080)
  • 2.7-12mm Motorized Zoom Lens controllable from NVR, Smartphone or Computer
  • 100° Wide Angle of View to 35° Telescoped Angle of View
  • Day & Night Automatic Switching
  • 200ft Max Night Vision Distance
  • Advanced Image Features: True WDR / BLC / HLC / AGC / 3DNR
  • Eyeball turret dome design makes it easy to mount and point in any direction
  • Mounts easily to wall or ceiling
  • Optional junction box, pole mount and arm mount available
  • PoE connectivity sends video/power/data over one network cable
  • Factory installed internal MicroSD support up to 128GB (optional)
  • Records to NVR, Computer, NAS, FTP, or internal MicroSD
  • View from NVR, Web Browser, Smartphone or Tablet
  • IP67 Weather Proof - Safe to use outdoors or indoors in cold or hot weather
  • Metal construction
  • PoE or 12V DC Input
  • ONVIF Compliant

What's included?

  • (1) 2K Turret Dome Camera with Motorized Zoom Lens

Specifications

Image Sensor1/3" 4MP Progressive Scan CMOS
Effective Pixels2688 (H) x 1520 (V)
Electronic Shutter SpeedAuto/Manual, 1/3 – 1/100000s
Minimum Illumination0.1 Lux F1.4 (Color), 0 Lux (IR On)
S/N RatioMore than 50dB
IR DistanceUp to 200ft
IR On/Off ControlAuto, Manual
IR LEDs2 Super IR LEDs
Lens TypeMotorized
Focal Length2.7–12mm
Max ApertureF1.4
Angle of ViewHorizontal: 100°–35°, Vertical: 54°–20°
Focus ControlMotorized
Close Focus Distance1ft
DORI DistanceLensDetectObserveRecognizeIdentify
Wide223ft89ft49ft23ft
Tele633ft253ft128ft62ft
Bracket RangePan: 0° - 360°, Tilt: 0° - 78°, Rotation: 0° - 360°
CompressionH.264+, H.264
Video AnalyticsMotion Detection
Advanced AnalyticsNone
Streaming Capability2 Streams (Main Stream, Sub Stream)
Resolution4MP (2688x1520), 3MP (2304x1296), 1080P (1920×1080), 720P (1280x720), D1 (704x480), CIF (342x240)
Frame RateMain Stream: 4MP (1-20fps), 3MP/1080P (1-30fps), Sub Stream: D1/CIF (1-30fps)
Bit Rate ControlCBR, VBR
Bit RateH264: 24–8192Kbps
Day/NightAuto (ICR), Color, B/W
BLC ModeBLC, HLC, True WDR (120db)
White BalanceAuto, Natural, Street Lamp, Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Smart IRYes
Digital Zoom16X
Flip0°, 90°, 180°, 270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio InputNo
Audio CompressionNone
Alarm InputNone
EthernetRJ-45 100Mbps
ProtocolsHTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users
Recording MethodNVR, NAS (Network Attached Storage), Local PC for instant recording, MicroSD
MicroSDmicroSD up to 128GB, factory installed microSD card
Web ViewerIE, Chrome, Firefox, Safari
Smart PhoneiPhone, iPad, Android Phone
Power Supply12V DC or PoE (802.3af)
Power Consumption10W
Operating Conditions-22°F – +140°F, Less than 95% RH
Weather ProtectionIP67
Vandal ResistanceN/A
CasingMetal
Dimensions4.80" x 4.20" (diameter x height)
Net Weight1.3 lbs
CertificationsCE, UL, FCC Part 15 Subpart B

More

More

Return Policy30 Days Return Policy
Signal TypeIP
Camera Resolution4MP
Image Sensor1/3" CMOS Sensor
Night Vision200ft
Lens2.7-12mm
Optical ZoomMotorized Zoom
Angle of View100° - 35°
Wide Dynamic Range (WDR)WDR 120db
MicrophoneNo
Pan Tilt ZoomNo
Video AnalyticsNo
Important FeaturesNo
SD Card SlotYes, factory installed
Power Input12V DC / PoE
Operating Temperature-22°F to +140°F
Dimensions4.80" x 4.20" (diameter x height)
Weight1.3 lbs
Weather ProofYes, IP67
Camera ColorWhite
Video EncodingH.264+/H.264
Warranty1 Year
