4 Channel NVR PoE 4K H.265 H.264

SKU: NVR044K

Availability: In stock

Regular Price: $299.99

On Sale: $249.99

Please select the size of the hard drive you would like installed inside your DVR Recorder.

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2 days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

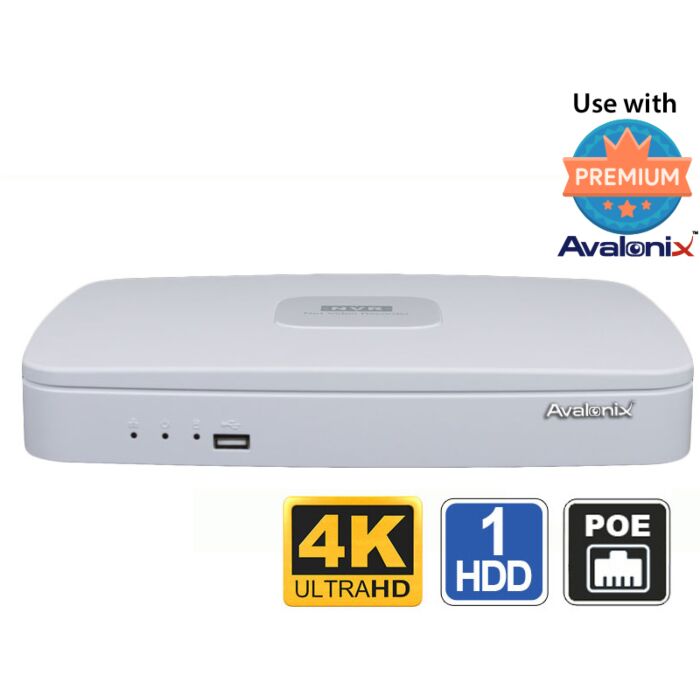

4 Channel Network Video Recorder with built-in PoE ports for use with 2 megapixel IP cameras, 3MP IP cameras, 4MP IP cameras, and 8MP 4K security cameras that are PoE (Power over Ethernet). This network video recorder will store video from up to 4 IP cameras, at resolutions up to 8 megapixels. The important point is that this NVR has PoE ports which will also power the cameras, thus there is no need for having a separate PoE switch. There is no need for an external power supply as the built-in 4 port PoE will power all 4 cameras as well as transmit video. Just plug each camera via CAT5e/CAT6 cable and you now have a self-contained High Definition 4K Security System. It is required that you use compatible PoE IP Cameras. All of the cameras we sell are compatible for use with this NVR.

The 4 camera NVR is standalone or self-contained because you do not have to connect it to a computer. It is a computer itself, and comes with its own embedded processor and Linux Operating System which stays virus free. It will never need any maintenance from a computer IT person, saving you a lot of undue costs. It has a friendly easy to use graphical user menu that can be controlled using the included mouse with point & click. It has HDMI and VGA video outputs so you can view your HD security cameras on a HDTV without any loss in video quality. It even supports IP cameras with audio and can record sound from cameras with microphones. When viewing your cameras, you can view 4 cameras in a grid, or view each camera in full screen mode.

This 4 Channel PoE NVR comes with 1 SATA port for 1 hard drive up to 6TB in capacity. If you need more room, you can set some or all of your cameras to record on motion detect only. It also has a USB port so you can connect a USB DVD burner or external hard drive to back up your footage. You can also back up video via FTP. Be sure to use our security video calculator to determine which hard drive size is best for you.

This NVR comes with Free Technical Support from our team based in the USA. All the cameras we sell at CCTV Camera World are compatible with our NVR recorders, Hybrid DVR, and Tribrid DVR. If you are looking for compatibility with cameras purchased elsewhere, please be sure to review our IP camera compatibility list.

Features

  • 4 Camera NVR recorder for IP network cameras with POE
  • H.265 and H.264 Video Encoding
  • Records IP cameras up to 8MP
  • Real Time Viewing and Playback
  • H.265 encoding provides up to 50% savings in bandwidth when used with a H.265 IP camera
  • Total 80Mbps recording bit rate
  • Supports 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P resolution cameras
  • Up to 4 Channel Grid Display Via HDMI
    • 2 Channels at 4K
    • 4 Channels at 4MP
    • 4 Channels at 1080P
  • 4 Plug & Play PoE+ Ports - Total 50W
  • Real Time Live Viewing for all cameras on DVR, iPhone, Android, iPad, Tablet, PC or Apple Computer
  • Live Monitoring and video playback on Smartphones including iPhone, iPad, and Android based phones and tablets
  • Auto Camera Detection using CCTV Camera World IP Cameras to easily configure cameras on the same network
  • HDMI & VGA Output for High Resolution Output to a HD TV or Computer Monitor
  • Central Monitoring Software for remote viewing via Windows or Apple computers
  • Motion activated recording or schedule based recording
  • Motion and video loss alerts to your mobile device
  • Allows for remote backups to a NAS, FTP, windows computer, or mirroring to another NVR unit
  • Easy video offload to a USB drive or optional external DVD burner
  • Supports 1 SATA Hard Drive up to 6 TB
  • Allows up to 10 simultaneous users to view or playback video remotely
  • 4 Built-in POE ports for easy connection to PoE IP cameras by CCTVCameraWorld
  • Dual Monitor Outputs: (1) VGA, (1) HDMI
  • ONVIF 2.4

What's Included?

  • (1) 4 Channel NVR with POE
  • (1) Power Supply
  • (1) Mouse

Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 4 channel
Audio Input4 channel over IP, camera dependent
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface1 HDMI, 1 VGA
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Fisheye Display No Dewarp
Recording
CompressionH.265, H.264, H.264H, H.264B, MJPEG
Resolution8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
Record Rate80 Mbps
Bit Rate 16kbps - 20Mbps Per Camera
Record Mode Manual, Schedule (Regular, Continuous), Alarm, Motion Detection, Tampering, Video Loss, Stop, Smart Detect (Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, People Counting, Heat Map)
Record Interval 1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank
Alarm Input N/A
Relay Output N/A
Playback & Backup
Sync Playback 1/4
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Drive, Network
Network
Ethernet 1 RJ-45 port (100Mbps)
PoE 4 PoE+ ports (IEEE802.3at/af), 4Mbps recommended per channel
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Avalonix IP camera, DVR, NVR and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 1SATA III port, 6 TB Max
eSATA N/A
Auxiliary Interface
USB2 USB2.0
RS232N/A
RS485N/A
General
Power Supply DC 48V 1.5A
Power Consumption NVR: 7.5W (without HDD)
PoE: Max 25.5W per Port, 50W Total
Working Environment 14°F - +131°F, 10% - 90% RH
Dimension (W×D×H)8.1" x 8.1" 1.8"
Weight 3.3 lbs (without HDD)
InstallationFlat table top / shelf
UL Listed Yes

More

More

Return Policy30 Days Return Policy
Recorder TypeNVR
CPUEmbedded Dual Core
Total Cameras Supported4
Supported Camera SignalsIP
Number of BNC InputsDoes Not Support BNC Cameras
Number of IP Cameras Supported4
Number of PoE Inputs4
Number of Audio Inputs4 IP Streams
Encoding SupportedH.264, H.265
Encoding Support DetailH.265, H.264, H.264H, H.264B, MJPEG
Recording Resolutions8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
BNC Recording Frame RateNo
Total Incoming IP Bandwidth80 Mbps
Total IP Recording Bandwidth80 Mbps
Max Hard Drive Capacity1HDD, 6TB
RAID RedundancyNo
Hot Swap HDDNo
eSATA PortNone
USB Ports(2) USB 2.0
Video Outputs(1) HDMI, (1) VGA
Total PoE Power50 W
Power Input110-220V AC
RackmountableNo
Warranty1 Year

Reviews

Customer Reviews

Far exceeded my expectations ! Review by Robert E
Price
Value
Quality
As a brand new shopper in this arena, not only did this product exactly fit my needs, but the outstanding "hand holding", patience, and willingness to address any and all concerns, often proactively to avoid potential issues by my insistence on going wireless. This firm is well managed and their products are well worth the slight premium you may pay above going the discount method. My neighbor still has his heavily discounted "wired" camera security system from Costco sitting in its box, a year now after he purchased it !?? (Posted on 9/21/17)

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

Ask a question... Type Here

Total 7 question(s)

I am looking at the NVR04WP NVR, for viewing this remotely do you need to have a DDNS?

Question by: William on: 2016-08-09

Use off DDNS depends on whether you have a static or dynamic ip address for your internet connection. We do not recommend using a P2P service as it is not secure. We focus on professional systems, and P2P QR code based remote viewing is not secure and unreliable. Please review information on our Remote Viewing and Networking for security cameras section for more information about how our systems work. You can also find information on how to set up free DDNS for your system here.

Answer by: Tech Support on: 2016-08-09

In regards to SKU: NVR04WP (4 Channel Network Video Recorder with POE). If I buy without hard drive, I can just add one and get started? The software is in built into the hardware, not the hard drive?

Question by: Jun Mitsumoto on: 2016-08-09

Yes all of our NVRs and DVRs have a embedded Linux operating system which allows the recorder to operate even without a hard drive. You can add a SATA 3.5 inch hard drive at any time to start recording.

Answer by: Tech Support on: 2016-08-09

Does this come with a free DDNS or do I have to pay for my own?

Question by: wiliam on: 2016-08-09

We recommend using a Free DDNS service provide like no-ip.

Answer by: Tech Support on: 2016-08-31

what is the power supply that comes with the unit? What is the power requirements for the NVR/DVR NVR04WP? We are looking to use at a remote location with 24V DC power available.

Question by: Dave on: 2017-02-27

This NVR comes with a 110V AC to 48V DC Power Adapter. All PoE NVRs have a high power requirement and cannot be powered with 24V DC Power.

Answer by: Tech Support on: 2017-02-28

What is the software used for remote viewing (on the network)? What OS is compatible?

Question by: Robert on: 2018-03-21

You can find out about the software by watching videos on this page:

Best Internet Security Cameras.

Answer by: Tech Support on: 2018-03-23

Is your 4 Channel NVR PoE 4K H.265 H.264 SKU: NVR044K compatible with my Pulse Indoor/Outdoor HD Mini Dome Camera model #MDC835?

Question by: Jaime on: 2018-04-04

The Pulse series cameras are not compatible with our security camera NVR as they are a proprietary cloud based camera from ADT.

Answer by: Tech Support on: 2018-04-07

Using a router and access point, can this be used with the WD3MP wireless cameras?

Question by: Brent on: 2018-06-01

Yes any of our NVR can be used with an access point to connect to any of our IP security cameras.

Answer by: Tech Support on: 2018-06-04
