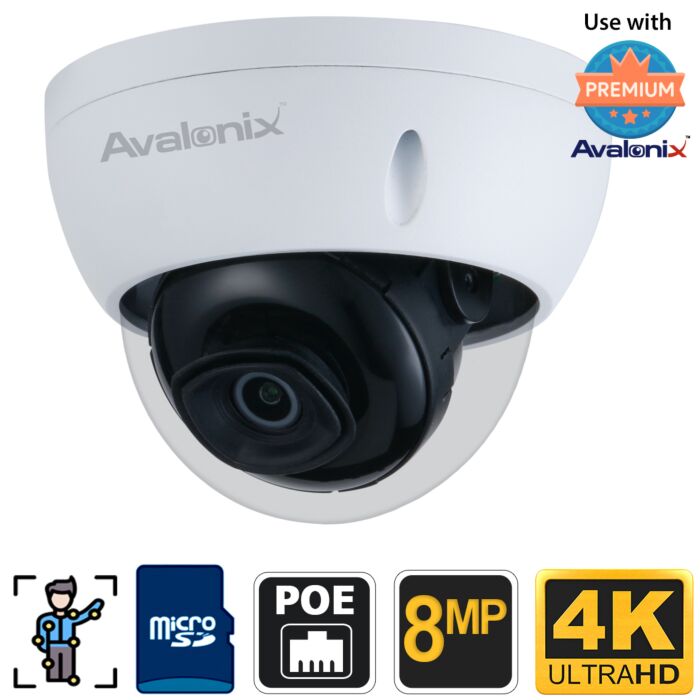

4K IP Camera Dome H.265, Video Analytics

SKU: IPC4K11D

Write a Review

Availability: In stock

Regular Price: $399.99

On Sale: $299.99

You can choose from the following optional brackets to aid in installation.

  • Junction Box for Mini Dome Cameras
  • Wall Mount Arm Bracket for Security Cameras
  • Pole Mount Bracket Mini
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2 days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

For mid- 2018 and beyond, the IPC4K11D comes with a high end Starvis image sensor for enhanced low light sensitivity and a plethora of Smart Detection features that provide video analytics usable on the camera itself or with one of our compatible NVR recorders.

This 8 Megapixel (8MP) IP camera produces 4K Ultra HD resolution video that surpasses any HD quality camera on the market in terms of clarity and resolution. You can record video from this camera to one of our 4K NVR or to a PC based NVR software. 4K Security cameras offer unparalleled video resolution that allows for video recordings that can be zoomed in to while maintaining clarity. This camera has a 8MP CMOS image sensor that allows the camera to record at 4K resolution (3840 x 2160 pixels). It comes standard with a 4mm lens that provides a 88 degree angle of view. Being 4K resolution, the actual image size is huge, meaning you can digitally zoom in up to 60ft away in daytime to recognize a face on video playback. You can use digital zoom on the camera or the NVR to magnify video of interest during live view or playback as shown in our video here.

The camera also has up to 100ft of night vision provided with by its infrared LEDS, and offers advanced image exposure compensation features such as BLC/ HLC/ True WDR.

All these professional features are packed in to a compact dome camera case that is vandal resistant and weather proof IP67. You can use the camera indoor or outdoors and rest assured it is tamper resistant if mounted correctly. This 4K IP Dome Camera can be mounted on a wall or ceiling. If you want the absolute best resolution available for security cameras, we suggest you get one of these.

Be sure to also consider the bullet version of this camera which comes with equal infrared night vision, you can find it here: 4K IP Camera Bullet

Powering the camera is easy. You can use either our PoE Switches, or a 12V DC power adaptor. This camera also has extended PoE technology that is compatible with select NVRs we carry that have extendedPoE techonology to allow PoE distances up to 1600ft.

Since this is a IP camera, it can be streamed directly to your computer using our PC/Mac viewing client or Chrome, NVR, mobile phone, or tablet device. We include our free Windows/Mac client suite to view video, or you can use any third-party video recording suite that accepts ONVIF compatible IP cameras.

For best compatibility and ease of use we recommend using one of our 4K NVRs which also support H.265 for bandwidth savings. H.265 encoding offers a more efficient way to compress video than H.264. It offers nearly double the data compression ratio delivering the same video quality saving bandwidth and storage space. It is also compatible with PC based video recording suites that support IP cameras such as Luxriot, Milestone, and NUUO.

Features

  • 4K IP Camera Dome
  • 8MP CMOS Image Sensor
  • Up to 4K Video Resolution 3840x2160 pixels
  • 15fps Recording Capability at Ultra HD 4K
  • H.265+, H.265, H.264+, H.264
  • H.265+ Provides up to 70% in bandwidth savings compared to H.264
  • Triple Video Streams
  • True WDR, 3D Noise Reduction, Back Light Compensation
  • Day & Night IR Cut Filter
  • 4mm Fixed Lens - 88° Angle of View
  • 100ft Max Night Vision
  • MicroSD card slot supports up to 128GB
  • Weather proof IP67 for outdoor use
  • IK10 Impact and Vandal Resistant
  • Indoor use suitable as well
  • Video Analytics
    • Tripwire
    • Intrusion
    • Object Abandoned/Missing
  • Advanced Analytics: Face Detection
  • Usable with NVR recorder, PC Windows Software, or Mobile Applications
  • Accepts PoE, 12V DC Power, or extended PoE

What's included?

Specifications

Image Sensor1/2.5" 8MP Progressive Scan Starvis CMOS
Effective Pixels3840 (H) x 2160 (V)
Electronic Shutter SpeedAuto/Manual, 1/3- 1/100000s
Minimum Illumination0.05 Lux F1.6 (Color), (0 Lux IR On)
S/N RatioMore than 50dB
IR DistanceUp to 100ft
IR On/Off ControlAuto, Manual
IR LEDs18
Lens TypeFixed
Focal Length4mm
Max ApertureF1.6
Angle of ViewHorizontal:88° Vertical:48°
Focus ControlFixed
DORI DistanceLensDetectObserveRecognizeIdentify
4mm290ft118ft59ft30ft
CompressionH.265+, H.265, H.264+, H.264
Bracket RangePan: 0° - 355°, Tilt: 0° - 64°, Rotation: 0° - 355°
Smart AnalyticsTripwire, Intrusion, Object Abandoned/Missing
Video AnalyticsFace Detection
Streaming Capability3 Streams (Main Stream, Sub Stream 1, Sub Stream 2)
Resolution4K (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 3MP (2048x1536), 1080P (1920×1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x480), VGA (640x480), CIF (342x240)
Frame RateMain Stream: 4K (1-15fps), 5MP (1-25fps), 3MP (1-30fps), Sub Stream 1: D1 (1-30fps), Sub Stream 2: 720P (1-30fps)
Bit Rate ControlCBR, VBR
Bit RateH.265: 14 - 9984Kbps, H264:24K - 10240Kbps
Day/NightAuto (ICR), Color, B/W
BLC ModeBLC, HLC, WDR 120db
White BalanceAuto, Natural, Street Lamp, Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Smart IRYes
Digital Zoom16X
DefogYes
Flip0°, 90°, 180°, 270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio InputYes, RCA-In and RCA-Out
Audio CompressionG.711a, G.711Mu, AAC, G.726
Alarm

1 channel In: 5mA 5VDC, 1 channel Out: 300mA 12VDC

EthernetRJ-45 100Mbps
ProtocolsHTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users
Record MethodNVR, NAS (Network Attached Storage), Local PC for instant recording, MicroSD up to 128GB
Web ViewerIE, Chrome, Firefox, Safari
Smart PhoneiPhone, iPad, Android Phone
Power Supply12V DC, PoE (802.3af), extended PoE
Power Consumption6W
Operating Conditions-22°F – +140°F, Less than 95% RH
Weather ProtectionIP67
Vandal ResistanceYes IK10 impact and vandal resistant
CasingMetal, Plastic
Dimensions4.33" diameter x 3.19" height
Net Weight0.91 lbs
CertificationsCE, UL, FCC Part 15 Subpart B

**Updated in 2017 to H.265 / H.264 Model

More

More

Return Policy30 Days Return Policy
Signal TypeIP
Camera Resolution4K 8MP
Image Sensor1/2.5" 8MP CMOS Sensor
Night Vision100ft
Lens4mm
Optical ZoomNo
Angle of View87°
Wide Dynamic Range (WDR)WDR
MicrophoneMic Input
Pan Tilt ZoomNo
Video AnalyticsFace Detection, Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
Important FeaturesNo
SD Card SlotYes
Power Input12V DC / PoE
Operating Temperature-22°F to +140°F
Dimensions4.33" x 3.2" (diameter x height)
Weight1 lb
Weather ProofYes, IP67
Camera ColorWhite
Video EncodingH.265+, H.265, H.264+, H.264
Warranty1 Year

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

Ask a question... Type Here

Total 13 question(s)

Does the lens have auto focus?

Question by: Joshua Lowles on: 2016-10-19

This camera is a fixed lens camera, which means the camera has a fixed focal or zoom length. The camera is able to see just like your eyes, sans binoculars. Here is a sample image.

Answer by: Tech Support on: 2016-10-19

ONVIF version?

Question by: jim on: 2016-09-01

ONVIF 2.4 Profile S Compliant.

Answer by: Tech Support on: 2016-09-06

What is the best recorder to suit this camera?

Question by: Tony on: 2017-04-06

This 16 Channel 4K NVR with PoE is the best 16 camera NVR that we have.

Answer by: Tech Support on: 2017-04-07

What are the limits of the manual pan and tilt adjustments? Is there an adjustment for lens rotation, too?

Question by: Todd Patrick on: 2017-06-11

Please note manual adjustments to the inside camera allow for:



  • Pan: 0° - 355°

  • Tilt: 0° - 64°

  • Rotation: 0°~355°


Answer by: Tech Support on: 2017-06-12

Is there a pan-tilt-zoom version of this, or if not, is there a similar 4k dome camera available?

Question by: Bruce on: 2017-06-15

4K PTZ cameras are due to arrive later this year. We do have a 4MP PTZ camera, if you are interested.

Answer by: Tech Support on: 2017-06-20

What is the exterior operating temperature range for this camera?

Question by: Wade on: 2017-07-14

As stated in the product description it is: -22°F to +140°F, Less than 95% RH

Answer by: Tech Support on: 2017-07-14

1.Does this camera Support IR functionality to provide Night vision?
2. What will be the data size of storage for running this for one full hour continuously?
3. Can this be used for capturing bus drivers driving pattern and condition during night drivings, by installing this in driver's cabin?

Question by: Gokul Kumar on: 2017-08-29

1. Yes this 4K Dome has built-in IR LEDs that provide night vision.

2. Recording 4k video at 15fps for 24hrs requires 85GB.
3. As long as you are not trying to see through the windshield or any other glass surface, and looking to see a person inside the same cabin or room as the camera, then it would work fine. We have customers using this camera in the dark for sleep studies.

Answer by: Tech Support on: 2017-09-01

Is the camera digital zoom?

Question by: Tim on: 2017-10-01

Yes all of our HD cameras including our 4K Security Cameras allow for digital zoom of the picture as it high resolution video and can be further zoomed in to. For example, you can watch the daytime video sample for this 4K dome camera located next to the product picure thumbnail. Or you can see the snapshot taken below with a digital zoom window placed for illustration of video zoomed in to digitally from the video.


Answer by: Tech Support on: 2017-10-02

hi,
1. im looking for a timelapse function, like programming the camera for doing one foto every 24hours and save it on SD card (timelapse movie will be done by myself). is it possible with this type of camera?
2. are shipping to Switzerland?
thanks!
Lukas

Question by: Lukas on: 2017-10-02

All of our IP cameras with SD card storage allow for snapshot to be taken at select intervals. This camera will allow snapshots to be taken at intervals between 1 and 50,000 seconds. Below is a screenshot from the camera's web interface that illustrates what the snapshot menu looks like.

We can ship to Switzerland. Please email us with your delivery address and we can provide a shipping quote, and Proforma Invoice.


Answer by: Tech Support on: 2017-10-02

Does the cameras support gigabit PoE?

Question by: George Edwards on: 2017-10-05

All IP cameras are PoE 100mbps. Gigabit PoE is overkill as a 4K security camera requires no more than 20mbps.

Answer by: Tech Support on: 2017-10-05

Please clarify your definition of "fixed lens." I have a Vivotec dome camera that has a fixed lens (meaning NOT remote PTZ), but on the INITIAL SETUP of the camera, it IS POSSIBLE to set and lock the zoom and focus point of the lens. In my application, the camera is inside of an American Kestrel (falcon) nest box, and the focal distance is about 12 inches. Is that adjustment possible with this camera?

Are the pdf user and installation manuals available online for review?

Question by: KestrelCamMan on: 2017-10-21

A fixed lens means you cannot move it. So you cannot change the focus.

Answer by: Tech Support on: 2017-11-07

can i paint the exterior of the camera? white will stand out horribly against the brown wall

Question by: Jay Laurent on: 2017-12-21

You could paint the camera as long as you don't damage the glass or the pigtail. Any modification of the camera's internal circuits, or its pigtail will void the warranty.

Answer by: Tech Support on: 2017-12-26

Can you provide more information about the web interface. Are multiple users able to log into the interface at once. Would they all have separate accounts? Is there an app that goes along with this camera?

Question by: Samori Price on: 2018-01-24

You can view any of our IP cameras, NVRs and DVRs from a web browser, including chrome for this model. Here is a tutorial demonstrating web viewing with our IP cameras from a computer browser:


How to use Chrome to view your security cameras


For viewing from an app on a phone or tablet please see videos located on the top of this page:


Best security cameras for remote viewing


Multiple users can login to the camera to view. No more than 5 users are recommended.

Answer by: Tech Support on: 2018-01-24
