Description
Details

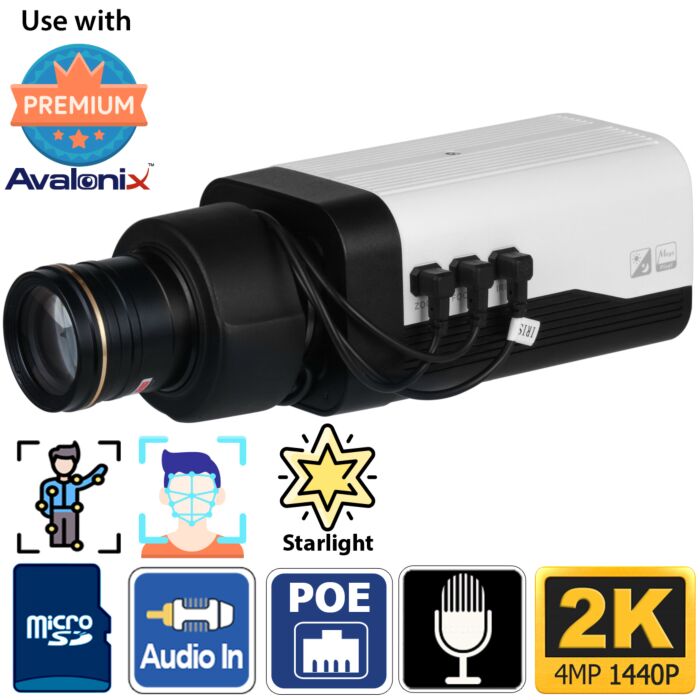

This box camera is one of the highest resolution professional security cameras we offer. It provides clear crisp video captured from its 4 megapixel image sensor. You can also toggle the resolution to a lower level down to 720P. This camera has True Wide Dynamic Range (WDR) which is a sought after feature only available in advanced IP cameras that allows for improvement of video quality in situations with light glare. You can also place this outdoors when combined with one of our outdoor camera enclosures.
To use the camera, you will need to also purchase a lens from the drop down options above the add to cart button. To record video from this IP Box Camera you will need a NVR or you can use our free IP camera software to record to your computer. Using our NVRs you can take advantage of the smart analytics that this camera offers.
Features:
- Professional Box Camera
- Also usable in external enclosure for outdoor applications
- 4MP Progressive Scan CMOS Image Sensor
- H.264 / MJPEG Video Encoding
- 20 fps at 4MP (2688 x 1520)
- 30 fps at 3MP (2048 x 1536)
- 30 fps at 1080p (1920 x 1080)
- CS Lens Mount Compatible (choose lens above)
- BLC, HLC, WDR
- Video Analytics to detect events:
- Tripwire
- Intrusion
- Abandoned/Missing Object Detection
- Built-in Microphone and Mini Mic Plug for add-on microphone
- MicroSD Slot supports up to 128GB
- DC12V / AC24V Dual Voltage, and PoE (802.3af)
What's Included?
- (1) 4MP Box Camera
Lens sold separately. Please make selection above.
Specifications:
| Resolution | 4MP |
| Image Sensor | 1/3" 4 MP Progressive Scan Image Sensor |
| Effective Pixels | 2688 (H) x 1520 (V) |
| Compression | H.264, H.264B, H.264H, MJPEG |
| Resolutions Supported | 4M (2688×1520), 4M (2560×1440), 3M (2304×1296), 1080P (1920×1080), 720P (1280×720), D1 (704×576, 704×480), CIF (352×288, 352×240) |
| Audio Compression | G.711a , G.711u, AAC |
| Audio | Built-in, 1 channel-in, 1 channel-out |
| Electronic Shutter | Auto/Manual, 1/3 - 1/100000s |
| Day/Night | Auto(ICR)/Color/B/W |
| Backlight Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto/Sunny/Night/Outdoor/Customized |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Lens Mount | CS |
| Minimum Illumination | 0.01 Lux / F1.2 (Color); 0.001Lux / F1.2 (B&W) |
| LEDs | None |
| IR Distance | None |
| OSD | Yes |
| Operating Temperature | -22°F to +140°F (without enclosure) |
| Power Input | AC24V, DC12V, or PoE |
| Power Consumption | 10W |
| Dimension | 2.9" x 2.6" x 5.4" (L x W x H) |
More
More
| Return Policy | 30 Days Return Policy |
|---|---|
| Signal Type | IP |
| Camera Resolution | 4MP |
| Image Sensor | 1/3" 4MP CMOS |
| Night Vision | None |
| Lens | Varies |
| Optical Zoom | No |
| Angle of View | No |
| Wide Dynamic Range (WDR) | WDR 120db |
| Microphone | Built-in |
| Pan Tilt Zoom | No |
| Video Analytics | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection |
| Important Features | No |
| SD Card Slot | Yes |
| Power Input | 12V DC / PoE |
| Operating Temperature | -22°F to +140°F |
| Dimensions | 2.9" x 2.6" x 5.4" (L x W x H) |
| Weight | 1 lb |
| Weather Proof | Indoor Use |
| Camera Color | White |
| Video Encoding | H.264 |
| Warranty | 1 Year |
Reviews
Customer Reviews
- Amazing quality and analytics Review by Eugene
Before buying this camera I bought a cheaper camera from Amazon. It was no name brand that turned out to be utterly useless. The web interface was buggy and the video did not look sharp. I ended up returning that after I purchased one of these cameras to test. There is a world of difference between how clear the picture is from this camera and cheaper 2K cameras. I did learn my lesson and decided not to cheap out. I am using these to look at 2 inch lettering 40ft away on skids before they are shipped. I used a 2.8 to 12 lens. I was also surprised that this camera has video analytics. I programmed it to record video when a skid was move past a certain point so I could save more video. The setup worked well with a 4 camera network recorder from this company. (Posted on 6/13/19)Value Quality Price - lab use Review by H Young
My university needed a camera to watch an instrument cluster in a clean room remotely. We tried some Lorex cameras but their infrared was getting in the way in our low light environment, and the resolution wasn't that great of their sensor. With the 10-50mm lens option we were able to watch what we needed from 30 feet away with the detail my PI was looking for. We used the free software this company provided over google drive. (Posted on 7/3/17)Value Quality Price - Wow Review by Ron Hicks
I was using an older Arecont box camera that was network based with Milestone. I got tired of those cameras outrageous pricing. 4mp cameras are expensive but shouldn't be more than $700. I was this camera was cheaper but the video footage is amazing. I can't complain. Configuration was easy using onvif and milestone picked it up. (Posted on 5/3/17)Price Value Quality
Product Questions
You need to log in to ask a question.
Total 7 question(s)
I have the 10-50mm lens. It's plugged into the camera. It is auto focusing correct?
Question by: aaron on: 2017-06-12
Please note manual lenses are not motorized and not autofocus. A motorized 10-50mm 4mp lens would could cost several hundred dollars. You have to loosed the lens adjustment knobs by turning the screw for the knob counter clockwise by 2 turns and then toggle the lens rings for Focus and Zoom.
Answer by: Tech Support on: 2017-06-12
I need to know more about the Box Camera specifically what size is the CCD Chip?
Question by: Daniel H Shields on: 2017-11-06
This camera uses a 4 Megapixel CMOS sensor that is 1/3" in size.
Answer by: Tech Support on: 2017-11-07
I'm looking at the 4MP Box camera with 5-50mm lens. What is the closest focus range? I hope to work at maybe 6".
Question by: Peter Bennett on: 2018-05-25
With the 5mm lens setting the Minimum Object distance is 3.3ft as described in the 5-50mm lens description page.
Answer by: Tech Support on: 2018-05-29
Does this camera stream via the usual RTSP?
Question by: Chris on: 2018-08-21
Yes all of our IP cameras allow for a user authenticated RTSP stream.
Answer by: Tech Support on: 2018-08-21
Is the audio input on this camera capable of stereo left/right audio channels?
Question by: PJ on: 2018-11-09
No it is not a stereo microphone input. It is a mono channel audio input.
Answer by: Tech Support on: 2018-11-09
Is this camera compatible with Lorex 4k NVR?
Question by: Paul on: 2019-11-07
Most of CCTV Camera World IP cameras are compatible with Lorex NVRs. To be sure, please submit a tech support ticket or product question with the model number of the NVR you have.
Answer by: Tech Support on: 2019-11-11
Can this camera see IR light from a IR LED emitter?
Question by: Daniel on: 2020-03-11
Yes this camera's sensor is sensitive to 850nm wavelength infrared illuminators.
Answer by: Tech Support on: 2020-04-09
