4MP Pro Series Dome Surveillance Camera, 4X Zoom

SKU: 42240

Write a Review

Availability: In stock

Regular Price: $298.99

On Sale: $259.99

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

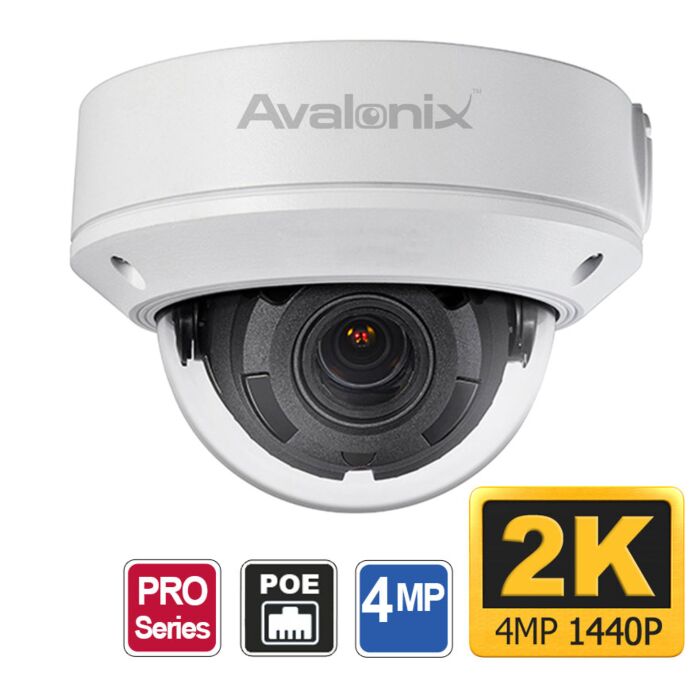

This Avalonix Pro Series 4MP Dome Camera is a network surveillance camera with motorized zoom lens that offers up to 4X optical zoom in live view mode. Using this camera you can identify a face up to 75ft away in lit conditions when zoomed in all the way. To understand the different between optical and digital zoom, please watch a great video we have explaining how it works on security camera systems.

Please note this is not a PTZ camera, i.e. that you cannot change where the camera is pointing. It is a motorized zoom security camera. You can control the zoom lens on this camera to zoom in or out while viewing in live view mode from either the NVR, computer, or smartphone. It is a must have for retail businesses to have a camera that can be set at a precise angle of view or zoom level to see money being exchanged from a cash register. It is also very popular among schools for perimeter security or long hallways where one camera can be installed and the optimal angle of view can be selected after installation.

This camera's 4MP image sensor provides stunning 2K resolution video that will prove useful in any application where detail beyond HD 1080P is required. This IP dome camera also offers up to 100ft of infrared night vision. With an IK10 impact resistant rating, this security camera can resist up to 5kgs of force and is vandal resistant and difficult to tamper with. The camera is also weather proof and has an IP67 rating, meaning it can operate in indoor or outdoor conditions without an overhang for weather protection.

Utilize plug-and-play technology as this camera supports Power Over Ethernet (PoE) to be used with one of our Pro Series PoE NVRs. To record video, we suggest using one of our Pro Series NVR for best compatibility. This network camera is also ONVIF compliant and will work with several brands of professional surveillance recording solutions. If you plan to use it with a recording solution other than our Pro Series NVRs, please click on the product question button underneath the product title to check for compatibility.

Features:

  • Compatible with Avalonix Pro Series NVRs
  • Weather Proof Network Dome Camera with Motorized Zoom
  • 4MP Progressive Scan CMOS Image Sensor
  • H.264+/H.264 Dual Stream Video Encoding
  • H.264+ provides up to 50% bandwidth savings over H.264
  • Selectable recording resolution:
    • 20 fps at 4MP (2688x1520)
    • 20 fps at 3MP (2304x1296)
    • 30 fps at 1080P (1920 x 1080 or 1280x720)
  • 2.8-12mm Motorized Zoom Lens
  • 108° - 31° Angle of View
  • Up to 100ft night vision
  • IR glare reduction via Smart IR function
  • True WDR for glare reduction
  • IR Cut Filter (ICR), 3D Noise Reduction
  • Motion detection with user configurable regions
  • Built-in Web Server for configuration
  • Use as standalone camera for viewing with web browser or Smartphone
  • Use Pro Series NVRs for recording and easy management
  • Hikvision Compatible
  • Supports up 128GB microSD card
  • ONVIF Profile S, Profile G Compliant
  • Use outdoors or indoors
  • IK10 Impact Resistant and Vandal Resistant
  • IP67 Weather Proof Rating
  • 12VDC or PoE (802.3af) Power Input
  • Ceiling and wall mount design

What's included?

  • (1) 4MP Avalonix Pro Series IP Dome Camera, 2.8-12mm Varifocal Lens

Specifications:

Image Sensor1/3" 4MP Progressive Scan CMOS
Effective Pixels2688(H) x 1520(V)
Electronic Shutter SpeedAuto/Manual, 1/3 - 1/100000s
Minimum Illumination0.01 Lux/F1.2 (Color), 0 Lux (IR on)
IR Distance100ft max
IR On/Off ControlAuto, Manual
Lens TypeMotorized
Focal Length2.8-12mm
Angle of ViewHorizontal: 108° - 31°
Focus ControlMotorized
Close Focus DistanceN/A
Distance to Recognize*Wide: 49ft, Tele: 125ft
Distance to Identify*Wide: 40ft, Tele: 75ft
CompressionH.264+, H.264
Streaming Capability2 Streams (Main Stream, Sub Stream)
Main Stream4MP (2688x1520), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720)
Sub Stream640x360, 352x240
Frame Rate4MP/3MP (1 - 20fps), 1080P / 720P / D1 / CIF (1 - 30fps)
Bit Rate ControlCBR, VBR
Bit RateH264: 32Kpbs - 16Mbps
Day/NightAuto (ICR), Color, B/W
BLC ModeBLC, HLC, WDR 120db
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (1 Zone)
Smart IRYes
Digital ZoomYes
Flip0°, 90°, 180°, 270°
MirrorOff, On
Privacy MaskingOff, On (4 Area, Rectangle)
Audio InputNo
EthernetRJ-45 100Mbps
ProtocolsHTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, IPv4/v6, UPnP, NTP, Bonjour, 802.1x, ICMP, IGMP, SNMP
InteroperabilityONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Max. User Access5 Users
Recording MethodBuilt-in microSD, NVR, NAS (Network Attached Storage), Local PC for instant recording
MicroSDmicroSD slot support up to 128GB
Web ViewerIE
Smart PhoneiPhone, iPad, Android Phone
Power SupplyDC12V, PoE (802.3af)
Power Consumption11W
Operating Conditions-22°F – +140°F, Less than 95% RH
Weather ProtectionIP67
Vandal ResistanceIK10 Impact and Vandal Resistant
CasingMetal, Plastic
Dimensions5.6" x 3.9" (diameter x height)
Net Weight1.8 lbs

*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.

More

More

Return Policy30 Days Return Policy
Signal TypeIP
Camera Resolution4MP
Image Sensor1/3" 4MP CMOS
Night Vision100ft
Lens2.8-12mm
Optical ZoomMotorized Zoom
Angle of View108° - 31°
Wide Dynamic Range (WDR)WDR 120db
MicrophoneNo
Pan Tilt ZoomNo
Video AnalyticsNo
Important FeaturesNo
SD Card SlotYes
Power Input12V DC / PoE
Operating Temperature-22°F to +140°F
Dimensions5.6" x 3.9" (diameter x height)
Weight1.8 lbs
Weather ProofYes, IP67
Camera ColorWhite
Video EncodingH.264+/H.264
Warranty1 Year

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

Ask a question... Type Here

Total 1 question(s)

Looking for black housing in the same camera capabilities.

Question by: Daniel on: 2019-04-11

This model is only available as a white housing.

Answer by: Tech Support on: 2019-04-11
