7 inch CCTV Monitor, VGA BNC Inputs

7 Inch LCD Monitor with HDMI, VGA, RCA, and BNC Compatible Video Inputs

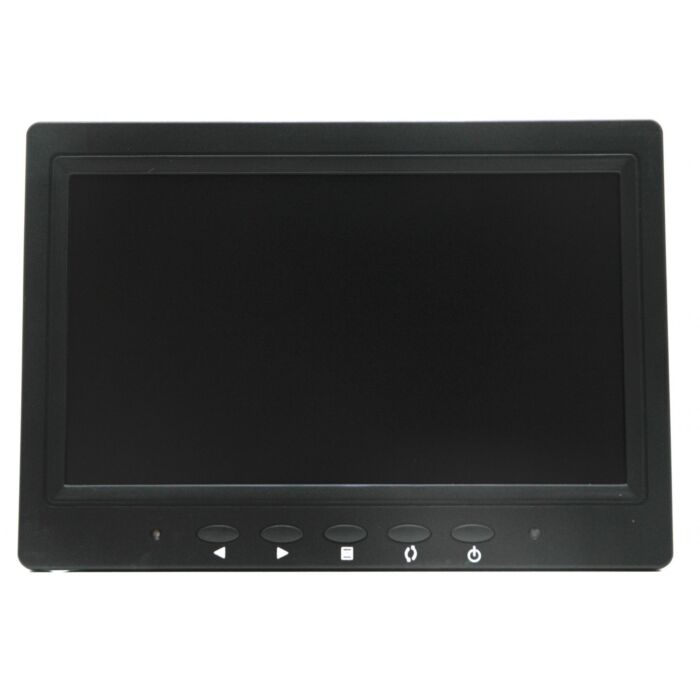

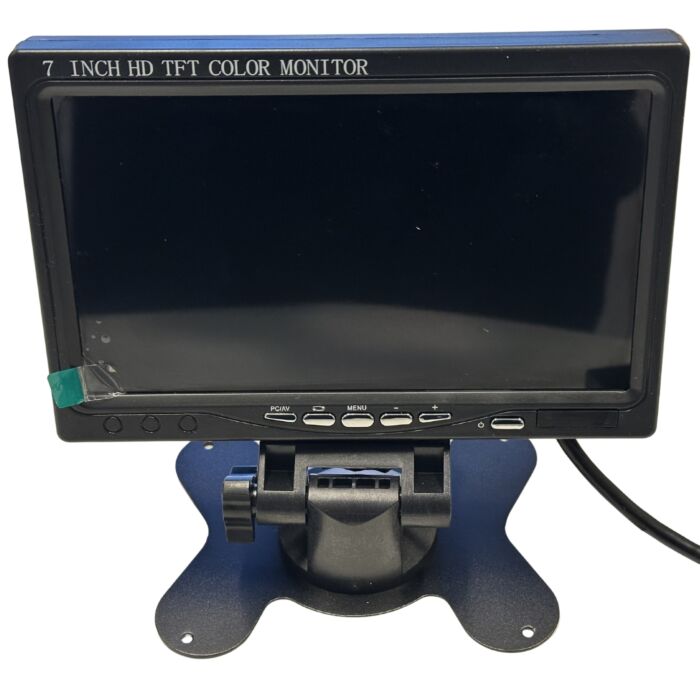

The AvaEye 7 inch LCD monitor is a compact display for security cameras, DVRs, NVRs, small computer setups, and other video devices that need a portable screen. It supports HDMI, VGA, and analog RCA video input, and includes BNC female to RCA adapters so it can also be used with standard BNC video connections from standard definition analog CCTV cameras.

This monitor is useful when you need a small screen near a recorder, inside an equipment cabinet, at a workbench, or for quick setup and troubleshooting. It can display video from compatible security DVRs, NVRs, analog cameras, video processors, and other devices with HDMI, VGA, RCA, or BNC style output.

Watch the 7 Inch LCD Monitor Video

Watch the video below to see the AvaEye MTF7 7 inch LCD monitor connected to common CCTV equipment, including an analog security camera, DVR, and NVR. The video shows how the HDMI, VGA, RCA, and BNC-compatible inputs are used in real setup and testing situations.

The monitor has a 7 inch TFT LCD screen with a 1024 x 600 maximum display resolution. The aspect ratio can be adjusted between 16:9 and 4:3, making it flexible for widescreen video sources as well as older analog CCTV video formats. Brightness, contrast, and color can be adjusted through the on-screen menu using the front buttons or the included IR remote control.

For analog video, the included breakout cable provides two yellow RCA video inputs and one red RCA audio input. Two BNC female to RCA adapters are included so you can connect BNC video cables from compatible CCTV equipment. The monitor also includes built-in side ports for HDMI, VGA, an optional legacy AV input jack, and a 12V DC backup power input.

This is a practical small monitor for installers, technicians, and users who need a simple local display for CCTV and electronics use. For longer cable runs, compatible adapters, and camera wiring accessories, browse our security camera cables, BNC connectors, and video baluns.

Features

• 7" AvaEye LCD monitor
• 1024 x 600 maximum display resolution
• Adjustable 16:9 and 4:3 aspect ratio
• Color TFT LCD display
• HDMI input
• VGA input
• 2 RCA video inputs through the breakout cable
• 1 RCA audio input through the breakout cable
• BNC compatible using the included BNC female to RCA adapters
• Supports PAL and NTSC analog video formats
• Adjustable brightness, contrast, and color
• Front panel buttons and IR remote control operation
• 12V DC powered
• Low power consumption
• Detachable stand / mount included

Common Uses

• Viewing analog security cameras with BNC or RCA video output
• Connecting to a DVR, NVR, or video processor for local display
• Using as a compact VGA display for older computers or equipment
• Installer bench testing and troubleshooting
• Small equipment room, counter, or cabinet monitor setups

What's Included?

• (1) 7" LCD monitor
• (1) Detachable stand / mount
• (1) IR remote control
• (1) 12V DC power supply
• (1) Monitor breakout cable with RCA video, RCA audio, 12V DC power, and ground wire
• (2) BNC female to RCA adapters

Connection Notes

• The HDMI and VGA ports are built into the side of the monitor.
• The yellow RCA connectors on the breakout cable are video inputs.
• The red RCA connector on the breakout cable is the audio input.
• BNC video devices can connect using the included BNC female to RCA adapters.
• The green wire is a ground wire used for automobile applications
• The side AV input jack is a legacy optional input and is considered deprecated.
• The 12V DC side input is a backup power input.
