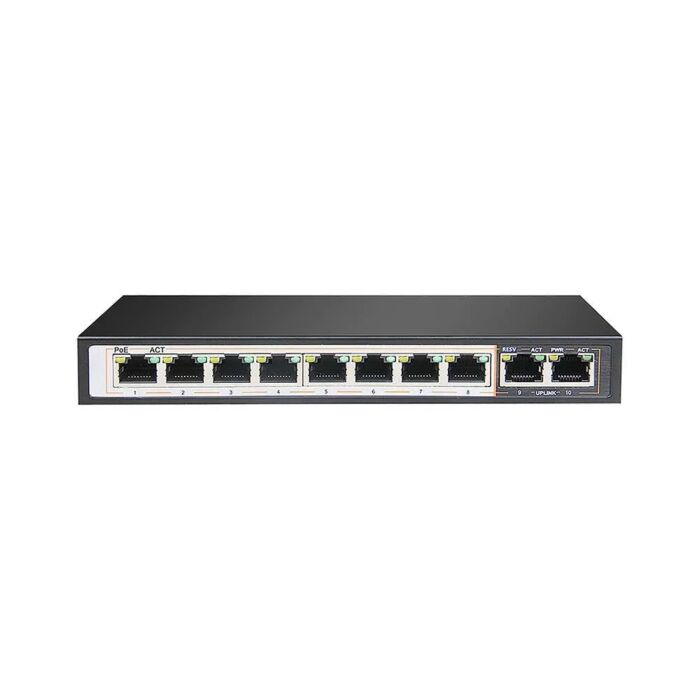

8 Port PoE Plus Switch

SKU: 8POEU

Availability: In stock

Regular Price: $215.00

On Sale: $149.99

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

This 8 Port PoE switch has 8 PoE+ ports that can supply data and power to up to 8 devices that are PoE or PoE+ compatible. It makes it easy to consolidate power and data for an IP camera in to one network cable for each camera. It is an unmanaged network switch and is 802.3af/at compliant. Our 8 port switches have two uplink ports to connect to the network, and directly to a NVR recorder. If you're unsure of how to use a PoE switch with your security camera system, we recommend reading our guide on how to setup an IP camera system on the network.

Features

  • Total of 8 10/100 Mbps PoE+ ports
  • Up to 25.5W output per port
  • Port 1 is capable of 60W output for use with High-PoE PTZ cameras such as our 4K PTZ Camera
  • Total 96W PoE Power Budget
  • Two Gigabit uplink ports
  • Comes with external AC/DC power supply
  • IEEE802.3x Flow control
  • Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af/at
  • Surge protection for power port and data ports
  • EMI standards complies with FCC, CE class B
  • High quality construction yet cost effective compared to popular brand name switches
  • Small size desktop switch

What's Included?

  • (1) 8 Port PoE+ switch
  • (1) Power Supply



Specifications

Uplink PortsTwo 1000Mbps Uplink Ports
PoE PortsEight 10/100Base-TX ports
Total PoE Output96W
PoE StandardIEE802.3af/at, 25.5W per port
Port 1 Support 60W PoE
Pin assignmentV+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8)
LED IndicatorsPWR, PoE, Link/Act VLAN LED
Input voltage100V~240V AC, 50/60Hz
Switching capacity5.6Gbps
MAC address table16K
Traffic controlIEEE 802.3x full-duplex flow control
Thermal methodsPassive
Operating temperature32°F – 104°F
Relative humidity20% - 85% (non-condensing)
Power SupplyDC48 - 57V power adapter
Weight1.1 lbs
Dimensions7.5" x 4" x 1.2"
CertificationsUL, FCC

More

More

Return Policy30 Days Return Policy
Warranty1 Year

Reviews

Customer Reviews

8port no brainer Review by Luis Garza
Price
Value
Quality
I use this with 6 4K cameras and did not have any problem with long cabling. Works with my cord being 200ft each. I used CAT6. (Posted on 1/26/20)

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

You need to log in to ask a question.

Total 1 question(s)

I do not have a network, just Internet service and a router. So, is my understanding below correct?
1. Connect the IP camera system to router.
2. Connect this 8 port PoE switch also to the router.
3. Then the IP camera system will receive the audio/video streams from the 8port PoE switch and be visible on the Monitor connected via HDMI?
4. Or, the 8port PoE switch should be connected to the IP camera system, via the gigabit RJ45 uplink?

Question by: Ed Roberts on: 2019-01-19

You can connect the NVR from our IP camera systems to a PoE switch either of the following two ways:



  • Connect the NVR to the Uplink port on the PoE switch and then connect the second Uplink port from the PoE switch to your router

  • Connect the NVR and the PoE switch to your router


The HDMI output from the NVR is unaffected by the network setup. You can read more about how to setup an IP camera system here.


Answer by: Tech Support on: 2020-01-26
