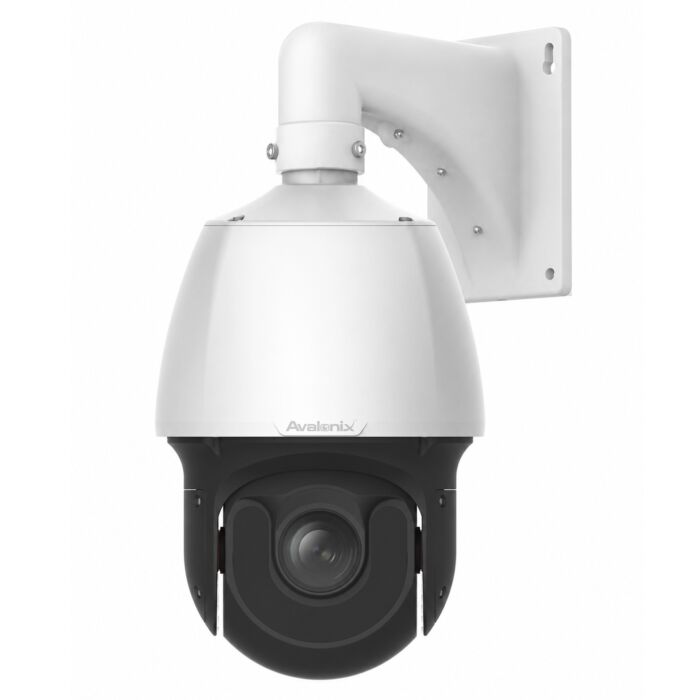

AvaEye 4K Auto Tracking PTZ Camera, 25X Zoom, 656ft IR, NDAA

The AvaEye AEPTZAT4K25 is an NDAA-compliant outdoor 4K PoE PTZ camera with 25X optical zoom, auto tracking, intelligent event detection, and Smart IR illumination up to 656 feet. Its large 1/1.8-inch image sensor records 3840 x 2160 video at up to 30 frames per second for monitoring parking lots, campuses, industrial yards, warehouse exteriors, farms, equipment lots, and other large properties.

The 6-150 mm motorized lens moves from a 60.5-degree overview to a narrow 3.1-degree telephoto view. The camera also provides 360-degree endless pan, 1,024 presets, multiple patrol options, local microSD recording, AvaEye NVR integration, and intelligent classification of people and vehicles. Installation requires a compatible high-power PoE source and a compatible wall or ceiling mount.

Key features

• 4K video: Records 3840 x 2160 video at up to 30 frames per second.
• Large image sensor: Uses a 1/1.8-inch CMOS sensor for detailed daytime and low-light video.
• 25X optical zoom: The 6-150 mm motorized lens moves from a 60.5-degree overview to a narrow 3.1-degree telephoto view.
• Auto tracking: Tracks people and slow-moving vehicles in low-population areas where it can maintain a clear lock on one target.
• AI detection: Classifies people, non-motor vehicles, and motor vehicles while filtering false alarms.
• Smart IR: Provides black-and-white infrared illumination up to 656 feet in darkness.
• Professional PTZ control: Supports 1,024 presets, multiple patrol types, a home position, and 360-degree endless pan.
• Flexible recording: Records to a compatible AvaEye NVR, a microSD card up to 512GB, or supported NAS storage.
• External audio: Provides one audio input and one audio output for compatible external microphone and speaker equipment.
• Outdoor operation: IP66 housing, built-in heater, 6kV surge protection, and operation from -40 to 158 degrees F.
• NDAA compliant: Suitable for projects that require compliant video-surveillance equipment.

Built for large outdoor areas

The wide end of the lens helps an operator orient the camera across a yard, parking area, entrance, access road, or perimeter. The telephoto end concentrates the 4K image on a smaller portion of the scene for closer inspection of distant activity.

Optical zoom changes the lens magnification before the image reaches the sensor, preserving more useful detail than enlarging captured pixels with digital zoom. The camera also supports 16X digital zoom for additional on-screen enlargement after the optical lens reaches its maximum telephoto position.

The published DORI planning distances range from approximately 469 to 10,223 feet for detection, 187 to 4,089 feet for observation, 93 to 2,044 feet for recognition, and 46 to 1,022 feet for identification, depending on lens position. DORI figures are standardized planning references rather than guarantees of facial identification or license-plate readability under every installation condition.

A PTZ camera works best alongside fixed cameras that maintain uninterrupted views of entrances, gates, loading areas, traffic lanes, and other critical locations. Browse the PTZ camera category when planning coverage for the complete property.

Auto tracking

The camera can automatically track people and slow-moving vehicles as they move through the monitored area. Auto tracking works best in low-population scenes where the camera can maintain a clear lock on one target, such as a gated entrance, remote parking area, warehouse yard, farm road, access lane, or property perimeter.

Crowded scenes with several people or vehicles moving at the same time can make target selection and continuous tracking less reliable. Use fixed PoE cameras for uninterrupted coverage of busy areas and use the PTZ for active tracking, presets, patrols, and closer inspection.

For direct operator control, add the AvaEye PTZ keyboard controller for joystick-based pan, tilt, zoom, patrol, and preset operation.

Intelligent detection

Intelligent event functions include cross-line detection, intrusion detection, enter-area detection, and leave-area detection. These rules can classify people, non-motor vehicles, and motor vehicles while filtering motion from unrelated objects.

The camera also supports removed-object detection, left-behind-object detection, people-flow counting, crowd-density detection, face detection, and best-snapshot selection. Available functions and search options can depend on the recorder and configuration used with the camera.

Read the AvaEye event-detection setup guide for help planning and configuring intelligent rules.

Smart IR night vision up to 656 feet

The camera uses high-output 850 nm Smart IR with automatic or manual control. In complete darkness, it switches to black-and-white video and can illuminate scenes up to 656 feet away. Smart IR adjusts infrared output to help reduce overexposure as a person or vehicle moves closer to the camera.

The quoted 656-foot specification describes the maximum reach of the infrared illumination. The practical distance for identifying a face, reading a license plate, or resolving another small detail will be shorter and depends on zoom position, target size, lighting, weather, scene contrast, mounting height, viewing angle, and movement.

A 0.003 lux color rating and automatic day-and-night switching support color video in low ambient light before the camera changes to infrared mode. Digital wide dynamic range helps balance scenes containing bright and dark areas.

AvaEye NVR integration and local recording

Pair the AEPTZAT4K25 with a compatible AvaEye NVR for centralized live view, recording, playback, PTZ control, remote access, and supported intelligent-event management.

The camera also supports a microSD card up to 512GB, NAS storage through NFS, and Automatic Network Replenishment with compatible recorder workflows. ONVIF Profiles S, G, T, and M provide standards-based integration with compatible third-party recorders.

A properly configured AvaEye NVR, microSD card, or supported NAS can continue recording over the local network without internet service. Internet access is only required for off-site remote viewing, notifications, or other internet-based functions.

External audio and alarm connections

The camera provides one audio input and one audio output for compatible external microphone and speaker equipment. This allows two-way audio when the required external devices are installed, but the camera does not contain a built-in microphone or speaker.

Two alarm inputs and one alarm output allow connection to compatible sensors, alarm devices, or other supported security equipment.

High-power PoE requirements

The camera draws up to 58W and must not be powered from a standard PoE port on an AvaEye NVR. Use the compatible 60W PoE injector or a compatible high-power port on the 4-port Hi-PoE switch.

Connect the separately powered camera and the AvaEye NVR to the same network for recording, playback, PTZ control, and remote access. The camera also supports compatible 24VAC or 24VDC power when the installation is designed for those power methods.

Outdoor installation and compatible mounts

The camera measures 227 mm in diameter x 384.8 mm high, or approximately 8.9 x 15.1 inches. It weighs 12.36 lb and uses a G1 1/2 top mounting interface.

A compatible mount is required and is sold separately. Select either the compatible large PTZ wall mount or ceiling pendant mount from the options above the Add to Cart button. A pole mount or corner mount can be added when required by the installation surface.

The IP66 housing, built-in heater, 6kV surge protection, and -40 to 158 degrees F operating range support exposed outdoor installations. Weatherproof cable connections and follow applicable grounding, surge-protection, and structural-mounting requirements.

NDAA-compliant PTZ camera

The AEPTZAT4K25 is NDAA compliant, making it suitable for businesses, schools, government contractors, and other projects that require compliant video-surveillance equipment.

Its combination of 4K detail, long optical reach, intelligent detection, and extended infrared illumination makes it well suited to commercial security camera systems and school and institutional security systems covering large outdoor areas.

Why purchase from CCTV Camera World?

CCTV Camera World can help match this camera with the correct mount, 60W injector or Hi-PoE switch, recorder, storage plan, and network layout. This planning is especially important for a large PTZ that has higher power requirements than a standard PoE camera.

Our team can also help determine whether a PTZ should be combined with fixed overview cameras, which mounting hardware fits the installation surface, and which AvaEye recorder is appropriate for the required recording and intelligent-event functions.

AEPTZAT4K25 vs. active-deterrence 4K 25X PTZ

Choose the AEPTZAT4K25 when longer infrared illumination, a larger image sensor, NDAA compliance, and AvaEye NVR integration are the priorities. Choose the IRPTZ4KAD active-deterrence 4K PTZ when built-in warning lights and speaker-based deterrence are more important.

For a lower-power 4MP AvaEye alternative with PoE+, shorter infrared illumination, and IK10 protection, compare the AvaEye PTZIR2K25.

What is included?

• 1 AvaEye AEPTZAT4K25 PTZ camera

Required accessories

• Power: A compatible 60W PoE injector or 4-port Hi-PoE switch is required.
• Mounting: A compatible wall mount or ceiling pendant mount is required and sold separately.

Optional accessories

• Compatible pole mount
• Compatible corner mount
• AvaEye PTZ keyboard controller
• Compatible AvaEye NVR
• Compatible microSD card up to 512GB
• Compatible external microphone and speaker equipment
• Fixed overview cameras for uninterrupted coverage of critical views
