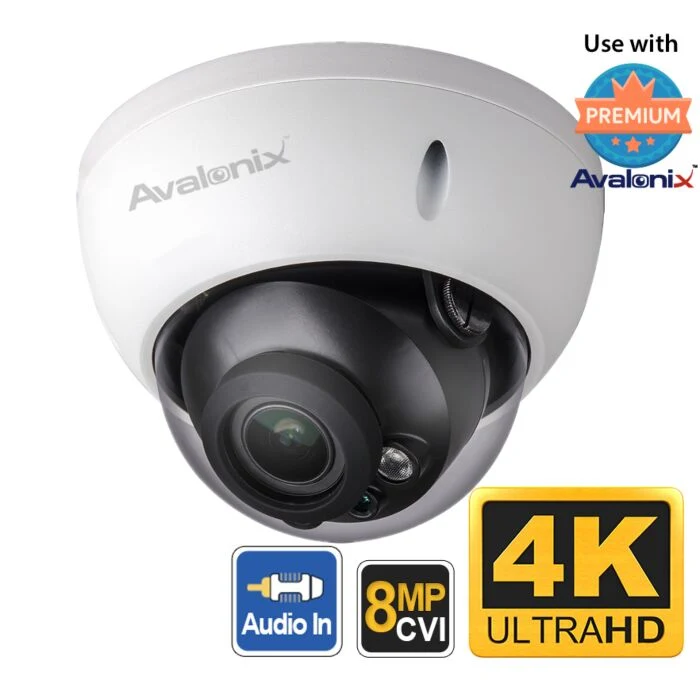

4K HDCVI Vandal Resistant Dome Camera - Avalonix 8MP HD-over-coax dome camera for compatible 4K HDCVI DVR systems.
110 Degree View and 100ft Night Vision - The 2.8mm fixed lens provides a wide 110 degree view, while built-in IR supports black-and-white night video up to 100ft.
Starlight Low-Light Video - Starlight imaging helps the camera stay in color in low-light scenes when there is usable ambient light.
Vandal Resistant Dome Housing - IK10 impact resistance and a metal IP67 housing make it suitable for indoor or outdoor locations where a dome camera is preferred.
HD Over Coax Installation - Sends 4K HDCVI video over quality coax cabling to a compatible 4K DVR, with CVBS output available for supported use.
Outdoor Camera Features - Includes WDR, Smart IR, 12V DC power, and optional wall, ceiling, or pole mounting support.
4.8 Inch Dome Camera Junction Box - White aluminum junction box for select dome camera models with matching mounting holes.
Cable Protection - Helps conceal and protect the camera pigtail from outdoor exposure and tampering when installed correctly.
Conduit Ready - G1/2 inch conduit thread size for installations where conduit needs to enter the junction box.
Mounting Options - Can mount directly to a wall or be used with a compatible mini pole mount bracket when supported by the installation.
Size And Load Rating - Measures 4.80 x 1.35 inches and supports up to 2.2 lb according to the product specs.
Compatibility Note - Review the camera description before ordering, since this is not a universal dome camera junction box.
Wall Mount Arm Bracket - For installing compatible turret and dome cameras on walls where ceiling mounting is not practical.
Clean Camera Installation - Arm style design positions the camera away from the wall and gives room to conceal pigtail connectors.
White Aluminum Construction - Solid aluminum body with a white finish to match many camera housings.
Outdoor Or Indoor Use - Suitable for exterior walls, garage walls, fence posts, columns, and similar mounting surfaces.
Compatibility Note - Intended for select compatible camera models. Check the camera page before ordering.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
Recessed Ceiling Mount - In-ceiling mount for select dome cameras where only the lower dome section should remain visible below the ceiling tile.
3.34 Inch Clearance - Short description lists 3.34 inch diameter clearance for compatible dome camera fitment.
Plastic Body - White plastic recessed mount for indoor ceiling tile style installations.
G3/4 Thread Size - G3/4 pipe thread size for compatible mounting setups.
Load Rating - Supports up to 2.2 lb according to the listed specifications.
Size Details - Mount dimensions are 6.54 x 2.98 inches, diameter x height.
Compatibility Note - Check the camera product description before ordering because this recessed mount only fits select dome cameras.
8MP 4K video resolution is no longer limited to IP cameras. With CCTV Camera World's new 4K 8MP line of HDCVI cameras you can expect state of the art HD security cameras over coax without having to change existing coaxial cabling. This 8MP Dome Camera works with RG59U coax cabling from a roll. Note that cheap pre-made siamese wire that is thin wire will not support HD over coax cameras. This 4K HD camera requires a compatible 4K security DVR to decode the video stream and provides up to 15fps at 4K depending on the specifications of the recorder.
This dome security camera captures video at 4K resolution even in low light thanks to the Starlight technology that is part of its 8MP image sensor. This surveillance camera's Starlight technology dynamically adjusts the shutter speed to allow the camera to see color in low light conditions, providing you color night vision. In complete darkness the camera will switch to black & white night vision mode aided by its on-board infrared LEDs.
The camera has one super-IR LED producing infrared night vision up to 100ft for viewing in complete darkness.
The 2.8mm fixed lens provides a 110 degree angle of view that allows for facial clarity up to 50ft away during the day as shown in our security camera buying guide. The Ultra HD 4K footage will give you significantly better clarity than 2K security cameras, which means you can use digital zoom to see further in recorded or live video
The dome camera supports actual Wide Dynamic Range (WDR) to minimize glare from different lighting in the foreground and background. There is also an RCA audio-in connector to connect a security camera microphone.
With a weatherproof rating of IP67 and metal design, this 4K HD security camera can operate in virtually any weather. The camera is also vandal and impact resistant to IK10 standards. We recommend it for any ceiling mount installation without needing additional mounting brackets. If you're mounting it to a wall or pole, we suggest using the optional wall mount bracket.
Features
8MP HDCVI Dome Camera
Starlight technology for improved color performance in low light
Supports a vartiey of video resolutions
HDCVI: 4K 15fps, 6MP 20fps, 4MP 30fps**
TVI/AHD: 5MP 12fps
CVBS: 30fps D1 / 960H
1 Super-IR LED provides up to 100ft night vision
Smart IR technology to minimize IR glare
2.8mm fixed lens provides 110° angle of view
IP67 weatherproof rating
Metal construction
Wall, ceiling, pole mountable
12V DC 1A power input required
One BNC video out
HDCVI or Analog CVBS Switchable video output from OSD (requires compatible DVR)
4K Security DVR that is HDCVI compatible is required for use
*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification. **Recording and display resolution/fps dependent on your 4K DVR. Not all DVRs support the highest frame rates available from the camera.
