4.8 Inch Dome Camera Junction Box - White aluminum junction box for select dome camera models with matching mounting holes.
Cable Protection - Helps conceal and protect the camera pigtail from outdoor exposure and tampering when installed correctly.
Conduit Ready - G1/2 inch conduit thread size for installations where conduit needs to enter the junction box.
Mounting Options - Can mount directly to a wall or be used with a compatible mini pole mount bracket when supported by the installation.
Size And Load Rating - Measures 4.80 x 1.35 inches and supports up to 2.2 lb according to the product specs.
Compatibility Note - Review the camera description before ordering, since this is not a universal dome camera junction box.
Wall Mount Arm Bracket - For installing compatible turret and dome cameras on walls where ceiling mounting is not practical.
Clean Camera Installation - Arm style design positions the camera away from the wall and gives room to conceal pigtail connectors.
White Aluminum Construction - Solid aluminum body with a white finish to match many camera housings.
Outdoor Or Indoor Use - Suitable for exterior walls, garage walls, fence posts, columns, and similar mounting surfaces.
Compatibility Note - Intended for select compatible camera models. Check the camera page before ordering.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
Recessed Ceiling Mount - In-ceiling mount for select dome cameras where only the lower dome section should remain visible below the ceiling tile.
3.34 Inch Clearance - Short description lists 3.34 inch diameter clearance for compatible dome camera fitment.
Plastic Body - White plastic recessed mount for indoor ceiling tile style installations.
G3/4 Thread Size - G3/4 pipe thread size for compatible mounting setups.
Load Rating - Supports up to 2.2 lb according to the listed specifications.
Size Details - Mount dimensions are 6.54 x 2.98 inches, diameter x height.
Compatibility Note - Check the camera product description before ordering because this recessed mount only fits select dome cameras.
Compatible set · All 2 products below are added together.
Pendant Mount Bracket for Dome Surveillance Cameras
Pendant Mount Bracket for Dome Surveillance Cameras
SKU: JB220
Dome Camera Pendant Bracket - Pendant mount bracket for select dome security cameras from CCTV Camera World.
Ceiling Drop Mounting - Converts a compatible dome camera into a pendant-style ceiling mount setup with a drop-down rod.
Adapter Plate Required - A compatible camera mount adapter plate is needed to attach the camera to this pendant bracket.
Compatibility Note - Confirm compatibility from the camera product description before ordering.
White Aluminum Build - White aluminum bracket for supported indoor or outdoor professional installations.
Key Specs - 5.07 inch diameter x 22.25 inch length, 4.40 lb load rating, 2 lb weight, -40F to 140F operating range.
Mini Dome Adapter - Metal mounting plate for select compatible mini dome cameras.
Wall Or Ceiling Use - Connects compatible cameras to the JB305W arm mount or JB220 ceiling mount.
Clean Cable Path - Camera pigtail can route through the adapter and mount to keep wiring tucked away.
Aluminum Construction - White aluminum adapter plate with a 2.2 lb load rating.
Compatibility Check Required - Confirm compatibility on the camera description page before ordering. Third-party camera use is at the buyer's risk.

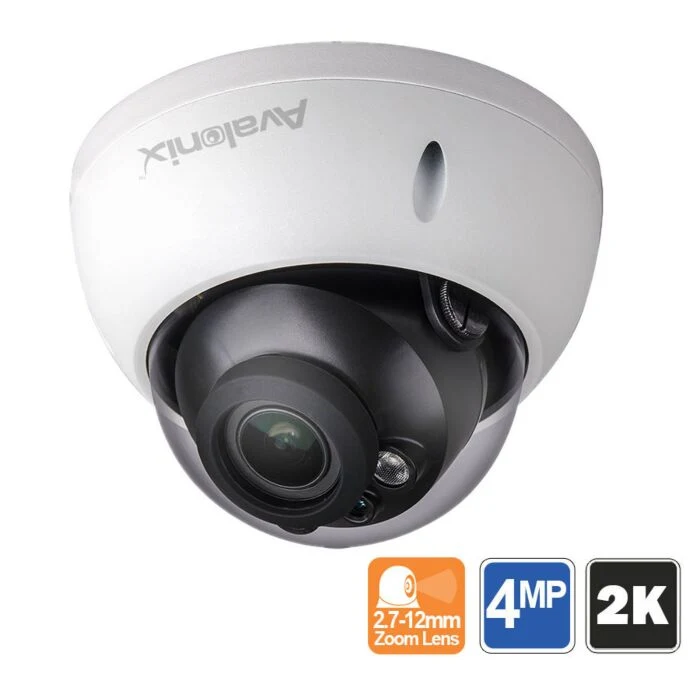

This vandal resistant dome camera is the latest in HDCVI cameras to provide a 2K resolution picture when using a 4MP HDCVI DVR. By using RG59 coax from a spool or HD quality premade siamese cables, you can now send better than HD signals over coax wiring. Our HDCVI cameras allow customers with existing analog camera systems a path to upgrade by simply upgrading cameras and recorders while keeping existing cabling infrastructure.
This 4MP Dome camera allows a 4MP HDCVI DVR to record up to real-time at 4MP, 1080p, or 720p. This camera has a 2.7-12mm motorized zoom lens that can be controlled from the recorder, or from the Smartphone App or Computer Software. With the touch of a button you can control the zoom lens of the camera and attain an angle of view as wide as 98° and as narrow as 20°.
This dome camera has 2 IR LEDs that provide up to 100ft of night vision for the camera to see general detail in complete darkness. The crisp, 2K video recording will give you significantly better clarity than 1080P cameras and allows for a clearer, less pixilated digital zoom. With 2K resolution at 80° view you can expect to see a face up to 40ft away when you digitally zoom in on live or recorded video.
Our 4MP HDCVI cameras offer True Wide Dynamic Range (WDR) technology, which will recognize and adjust bright/dim areas of your video, such as a light or glare from the sun, without darkening the rest of the objects in frame.
This camera has two separate BNC video outputs, one for HDCVI and one for CVBS output (aka analog) so you can use an analog CCTV tester when installing the camera.
Features
4MP Vandal Resistant Dome Camera with Motorized Zoom
Supports Real Time video at 4MP, 1080P, or 720P
True WDR for glare compensation
Up to 100ft of Night Vision
Smart IR to minimize IR glare
2.7-12mm Motorized Zoom Lens adjustable from the DVR, Smartphone, or Computer
98° to 26° angle of view
RG59 Coax cable from a spool or HD Siamese Cable required
3D Digital Noise Reduction
Low Lux light sensitivity allows the camera to see in color at night
Day/Night sensor technology switches the camera to black & white in complete darkness
Is there a way to disable the IR illuminator? And if I disable the illuminator, can the camera still see well at night with moonlight?
Question by: Inge on Mar 31, 2026, 3:31 PM
Using a compatible DVR that can access the HDCVI protocol you can toggle the camera's imaging mode to color only which turns off the IR LEDs. The camera can then see in color mode according to the Lux rating of the image sensor.
Answer by: CCTV Camera World on Apr 1, 2026, 1:03 PM
