Mini Dome Camera Junction Box - White metal junction box for select metal eyeball dome camera models with matching holes.
Weather Resistant When Installed - Helps protect the camera pigtail and connection area from outdoor exposure.
Conduit Cutout - Built with a G3/4 conduit thread size for routing cable into the junction box.
Direct Or Pole Mount Use - Can mount directly to a wall or connect to the compatible mini pole mount bracket listed for this item.
Compact Aluminum Body - Measures 3.81 x 1.32 inches with a 2.21 lb load rating and 0.36 lb product weight.
Compatibility Note - Listed for specific mini dome models, including the 2K vandal resistant IP dome camera noted in the row data.
Wall Mount Arm Bracket - For installing select turret and dome cameras on a vertical wall surface.
White Aluminum Body - Metal construction with a white finish for indoor or outdoor camera mounting areas.
Cable Pass Through - Provides space for the camera pigtail so wiring can be routed through the bracket for a cleaner install.
Select Camera Fit - Check the camera product description before ordering because the pre-drilled holes match specific dome models.
Size And Load - Measures 6.3 x 4.8 x 3.0 inches and supports up to 2.2 lbs.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
Compatible set · All 2 products below are added together.
Pendant Mount Bracket for Dome Surveillance Cameras
Pendant Mount Bracket for Dome Surveillance Cameras
SKU: JB220
Dome Camera Pendant Bracket - Pendant mount bracket for select dome security cameras from CCTV Camera World.
Ceiling Drop Mounting - Converts a compatible dome camera into a pendant-style ceiling mount setup with a drop-down rod.
Adapter Plate Required - A compatible camera mount adapter plate is needed to attach the camera to this pendant bracket.
Compatibility Note - Confirm compatibility from the camera product description before ordering.
White Aluminum Build - White aluminum bracket for supported indoor or outdoor professional installations.
Key Specs - 5.07 inch diameter x 22.25 inch length, 4.40 lb load rating, 2 lb weight, -40F to 140F operating range.
Mini Dome Adapter - Metal mounting plate for select compatible mini dome cameras.
Wall Or Ceiling Use - Connects compatible cameras to the JB305W arm mount or JB220 ceiling mount.
Clean Cable Path - Camera pigtail can route through the adapter and mount to keep wiring tucked away.
Aluminum Construction - White aluminum adapter plate with a 2.2 lb load rating.
Compatibility Check Required - Confirm compatibility on the camera description page before ordering. Third-party camera use is at the buyer's risk.

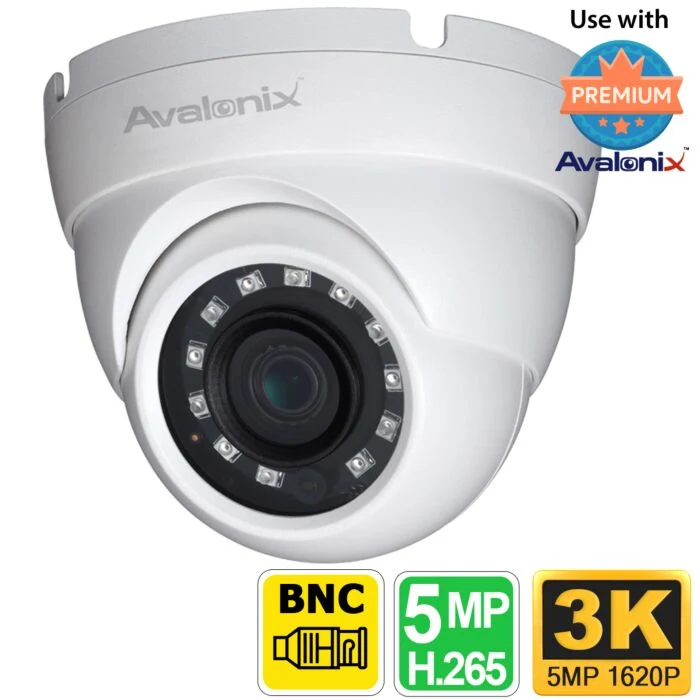

This 3K 5MP turret dome camera is one of our latest HD analog cameras that works over coaxial cabling. It captures video at 5MP, which is a higher resolution than 4MP 2K, and is a part of our 4-in-1 series. Our 4-in-1 cameras have the ability to switch to the most common coaxial video signals, so they can work with most DVRs out there, including HDCVI, HD-TVI, AHD, and CVBS. You can set the camera to work with almost any DVR, but we recommend pairing it with one of our HD Analog DVR recorders for optimal performance. Using this camera with our DVR and solid copper coaxial siamese cable means you can run it up to a staggering 1600 feet away! These HD upgrades over coax technology have resulted in cameras that can compete with IP cameras, which is excellent for anyone who doesn't want to go through the cost and effort of rewiring their home or business to achieve an HD security camera system.
The camera’s 5MP 3K image sensor records video at 2592x1944 resolution, producing visual clarity that is over double the standard high-definition 1080P. Even at the lower resolution of 960H CVBS mode, the camera surpasses the performance of traditional analog cameras. In daylight, the camera's 3.6mm lens and sensor combine to provide a viewing angle of 77.5 degrees, enabling it to see facial detail up to 30 feet away. In the dark, the camera automatically switches to black-and-white and beams infrared light up to 100 feet away with its 12 IR LEDs.
This camera, with support for the older analog signal type CVBS, is also a great choice if you need a camera to work with old systems in restaurants and healthcare facilities. Simply let us know what your DVR is, and we’ll set the camera to the right mode to work for you.
Its low-profile design, measuring around 3.6 inches in diameter and 3.1 inches in height, makes it an excellent choice for securing areas that require a smaller, more inconspicuous camera. With an IP67 weather-resistant rating, you can use the camera indoors or outdoors without worrying about rain, and you can install it without any overhang or eaves. The camera can be wall or ceiling mounted, and we recommend that you protect the pigtail in the camera’s bracket or tuck it in the wall or ceiling to prevent vandalism to the wiring.
The camera also has an on-screen display menu (OSD) that can be controlled through our DVR systems, or other compatible 3rd party recorders where available. The OSD will allow you to toggle the video signal output, resolution, video brightness, contrast, gain control, and other key video features.
Compatibility note: some older DVR or XVR may require a firmware update to be compatible with the latest 4MP/5MP CVI protocol. Such firmware is unavailable for older video recorders.
Features
Outdoor Dome Security Camera
White Colored Camera
5MP Sensor
5MP, 4MP, 1080P or 960H Video output selectable using a compatible HD DVR
Supported Resolutions:
5MP CVI at 20fps
4MP, 1080P at 30fps
960H or D1 CVBS at 30fps
12 IR LEDs
100ft Night Vision
3.6mm fixed lens
77.5° angle of view
Built-in IR cut filter (ICR)
SMART IR to minimize IR glare
HDCVI, TVI, AHD, Analog CVBS switchable video output
