AvaEye AEJ54 Junction Box for Small Dome Security Camera, White
$18.00
Overview
AvaEye Dome Camera Junction Box - White aluminum junction box designed for the AvaEye AE4KTDL dome security camera.
Pigtail Protection - Helps conceal and protect the camera pigtail and cable connection from weather exposure and tampering when installed correctly.
Conduit Ready - G 3/4" pipe thread side connection plus bottom cable entry for flexible cable routing.
Mounting Options - Can be used for compatible wall or ceiling installations on a suitable flat mounting surface.
Compact Size - Measures 11 cm in diameter x 3.7 cm high, approximately 4.33 x 1.46 inches.
Compatibility Note - Designed for the AvaEye AE4KTDL mounting pattern and is not a universal junction box. Check camera compatibility before ordering.

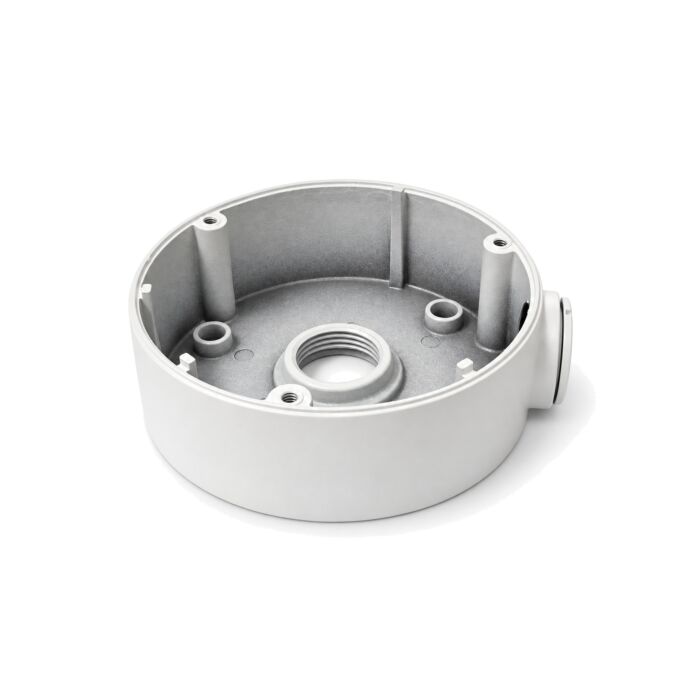

The AvaEye AEJ54 is a white aluminum junction box made for the AE4KTDL dome security camera. It provides a clean mounting base while enclosing the camera pigtail and cable connection instead of leaving them exposed behind the camera.
Use the AEJ54 for compatible wall or ceiling installations where wiring enters through the mounting surface or approaches from conduit. Bottom and side cable-entry options help accommodate different wire routes, and the side opening uses a G 3/4" pipe thread connection.
Cleaner camera cable management
The round aluminum enclosure creates space behind the camera for its pigtail and network connection. This keeps the connection area organized and gives the installed camera a more finished appearance on a wall or ceiling.
A gasket is included to help seal the mounting interface. For an outdoor installation, seal the conduit and cable entry correctly and fasten the box to a suitable flat surface using installation methods appropriate for the wall or ceiling material.
Designed for the AvaEye AE4KTDL
The pre-drilled mounting pattern is intended for the AvaEye AE4KTDL camera. The AEJ54 is not a universal junction box, so match the camera model before ordering. The camera is sold separately.
Browse the AvaEye security product collection for compatible cameras, recorders, and installation accessories.
Installation features
- Aluminum construction: Provides a sturdy mounting base for the compatible camera.
- White finish: Coordinates with the white AE4KTDL camera housing.
- Bottom cable entry: Routes wiring directly through the mounting surface when rear access is available.
- Side conduit entry: Uses a G 3/4" pipe thread connection for surface-routed wiring.
- Enclosed connection area: Provides space for the camera pigtail and cable connection.
- Wall or ceiling use: Supports compatible installations on a suitable flat mounting surface.
- Compact size: Measures 11 cm in diameter and 3.7 cm high, approximately 4.33 inches in diameter and 1.46 inches high.
What is included?
- 1 AvaEye AEJ54 junction box
- 1 gasket
- Mounting screws
Technical specifications
| Brand | AvaEye |
|---|---|
| Model | AEJ54 |
| Product type | Security camera junction box and mounting base |
| Compatible camera | AvaEye AE4KTDL |
| Application | Wall or ceiling mounting on a suitable flat surface |
| Material | Aluminum |
| Color | White |
| Dimensions | 11 cm diameter x 3.7 cm height (approximately 4.33 x 1.46 inches) |
| Cable entry | Bottom or side entry |
| Side conduit connection | G 3/4" pipe thread |
| Included hardware | Gasket and mounting screws |
| Warranty | 1 year limited warranty |
Frequently asked questions
Which camera fits the AEJ54 junction box?
The AEJ54 is designed for the AvaEye AE4KTDL camera. It is not intended as a universal junction box for cameras with different mounting-hole patterns.
Can wiring enter from behind or from the side?
Yes. Wiring can enter through the bottom opening from behind the mounting surface or through the side G 3/4" pipe thread connection.
Can the AEJ54 be installed outdoors?
The aluminum box has a weather-resistant design and includes a gasket. Outdoor performance depends on correct mounting and proper sealing of the cable or conduit entry.
| Brand | CCTVCameraWorld |
|---|---|
| Series | AvaEye |
| Warranty | None for accessories |
| Return Policy | Accessories are non-returnable, non-refundable. |
