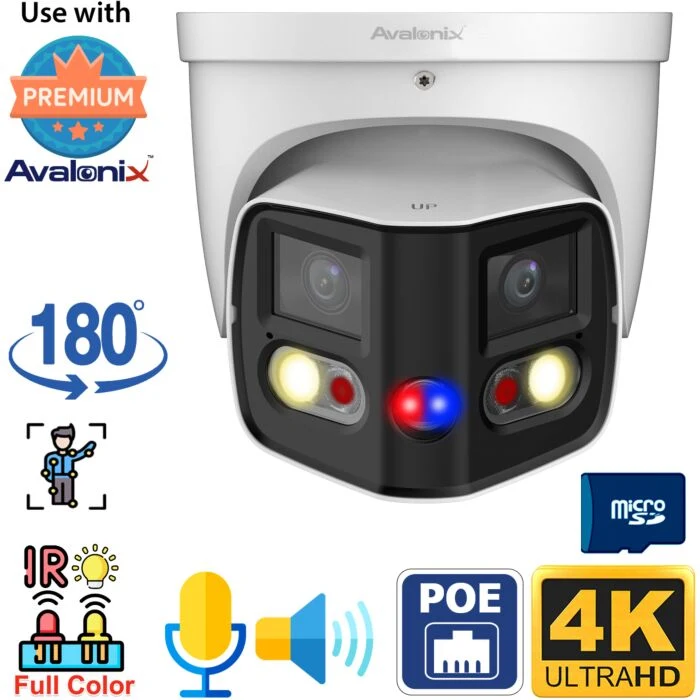

4K 180 Degree Panoramic Camera - Dual-sensor Avalonix PoE camera that creates an ultra-wide stitched view for storefronts, lobbies, warehouses, lots, and open areas.
Wide Coverage From One Camera - The 180 degree view helps reduce blind spots where multiple standard fixed cameras might otherwise be needed.
Smart Color Night Vision - Camera can use IR black-and-white night viewing, then switch on white light LEDs to capture color when motion or a rule is triggered.
Active Deterrence - Red and blue warning lights, built-in speaker, siren support, microphone, and two-way audio help respond to activity near the camera.
Smart Detection - Supports Smart Motion Detection, tripwire, intrusion, and audio detection to focus alerts on more useful events.
Flexible Camera Features - Supports PoE+, 12V DC, H.265/H.264 video, microSD up to 256GB, IP67 outdoor housing, and audio input/output connections.
128GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
256GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
30W PoE Injector - Adds PoE power to one compatible IP camera, access point, VoIP phone, or network device.
Single Device Power - Practical when one PoE device needs power but the router or network switch does not provide PoE.
802.3Af/At Support - Compliant with standard PoE and PoE+ devices that accept 802.3af or 802.3at input.
10/100Mbps Data - Supports 10/100Mbps network connections for compatible devices.
Camera Installation Use - Connect the powered device to the PoE side and connect the data side back to a router, switch, or recorder network.
Distance Note - Intended for standard Ethernet cable runs up to 300ft when installed with proper cable and compatible equipment.
6ft Cat5E Patch Cable - Pre-made network cable for short indoor network connections, IP cameras, PoE camera systems, and other RJ45 devices.
RJ45 Ends Installed - Factory-terminated connectors save time compared with cutting and crimping your own cable.
Booted Connectors - Booted RJ45 tips help protect the connector latch from accidental damage or disconnection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for clean indoor wiring paths, racks, cabinets, and short patch runs.
Protected Use - Best used indoors or inside conduit where the cable is protected from water.
25ft Cat5E Patch Cable - Pre-made network cable for IP cameras, IP systems, and general RJ45 network connections.
RJ45 Ends Installed - Ready-to-use cable avoids the need to crimp connectors in the field.
Booted Connectors - Connector boots help protect the latch and support a more secure connection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable works well for clean indoor cable routing and short network runs.
Protected Use - Intended for indoor use or conduit-protected runs where the cable is not exposed to water.
50ft Cat5E Network Cable - Pre-made cable for IP cameras, camera systems, and general RJ45 network connections.
RJ45 Tips Installed - Comes with RJ45 connectors already attached, reducing field crimping work.
Booted Connectors - Booted ends help prevent accidental disconnection and protect the connector tab.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for indoor installations, equipment rooms, and protected network runs.
Protected Use - Use indoors or in conduit where the cable is protected from water.
100ft Cat5E Patch Cable - Pre-made white network cable for IP camera, NVR, and general network connections.
Booted RJ45 Connectors - Factory-installed RJ45 ends help avoid field crimping and reduce accidental unplugging.
Indoor Or Protected Runs - Good for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy patch cable for standard network and camera system wiring needs.
150ft Cat5E Patch Cable - Pre-made white network cable for IP cameras, NVRs, and general network connections.
Factory RJ45 Ends - RJ45 connectors are already installed, which saves time compared with crimping ends in the field.
Booted Connector Design - Booted RJ45 ends help protect the latch and reduce accidental unplugging.
Indoor Or Protected Runs - Suitable for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy cable option for standard camera system and network wiring.
150ft Solid Copper Cat5E Cable - Pre-made white network cable for longer IP camera, NVR, and network patch runs.
350Mhz Rated Wire - Solid bare copper CAT5e construction supports reliable data and video signal quality.
Booted RJ45 Connectors - Factory-installed RJ45 ends reduce field crimping work and help prevent accidental disconnects.
Gigabit Ready When Supported - Can be used in Gigabit network applications with compatible network cards and switches.
Indoor Or Protected Installs - Best for indoor use or conduit runs where the cable is protected from water.
Includes One Cable - Includes one 150ft CAT5e cable with RJ45 connectors already attached.
4.8 Inch Dome Camera Junction Box - White aluminum junction box for select dome camera models with matching mounting holes.
Cable Protection - Helps conceal and protect the camera pigtail from outdoor exposure and tampering when installed correctly.
Conduit Ready - G1/2 inch conduit thread size for installations where conduit needs to enter the junction box.
Mounting Options - Can mount directly to a wall or be used with a compatible mini pole mount bracket when supported by the installation.
Size And Load Rating - Measures 4.80 x 1.35 inches and supports up to 2.2 lb according to the product specs.
Compatibility Note - Review the camera description before ordering, since this is not a universal dome camera junction box.
Wall Mount Arm Bracket - For installing compatible turret and dome cameras on walls where ceiling mounting is not practical.
Clean Camera Installation - Arm style design positions the camera away from the wall and gives room to conceal pigtail connectors.
White Aluminum Construction - Solid aluminum body with a white finish to match many camera housings.
Outdoor Or Indoor Use - Suitable for exterior walls, garage walls, fence posts, columns, and similar mounting surfaces.
Compatibility Note - Intended for select compatible camera models. Check the camera page before ordering.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
Compatible set · All 2 products below are added together.
Pendant Mount Bracket for Dome Surveillance Cameras
Pendant Mount Bracket for Dome Surveillance Cameras
SKU: JB220
Dome Camera Pendant Bracket - Pendant mount bracket for select dome security cameras from CCTV Camera World.
Ceiling Drop Mounting - Converts a compatible dome camera into a pendant-style ceiling mount setup with a drop-down rod.
Adapter Plate Required - A compatible camera mount adapter plate is needed to attach the camera to this pendant bracket.
Compatibility Note - Confirm compatibility from the camera product description before ordering.
White Aluminum Build - White aluminum bracket for supported indoor or outdoor professional installations.
Key Specs - 5.07 inch diameter x 22.25 inch length, 4.40 lb load rating, 2 lb weight, -40F to 140F operating range.
Camera Mount Adapter - Aluminum adapter for select compatible turret and dome cameras.
Wall Or Ceiling Setup - Designed for use with compatible JB305W wall arm mounts or JB220 pendant ceiling mounts.
Clean Installation - Provides a transition between the mounting pipe and camera while helping route the pigtail through the mount.
White Aluminum Alloy - 5.28 x 5.28 x 3.29 inch adapter with 1.84 inch pipe thread and 2.2 lb load rating.
Compatibility Check Required - Intended for select compatible cameras only. Third-party camera use is at the buyer's risk.
We’re proud to introduce this powerful Active Deterrence Full Color Panoramic Camera to our selection of professional security cameras to assist our customers with protecting their homes and businesses. As a part of our Premium Series line of PoE cameras, this camera is a top-of-the-line panoramic camera. It combines the power of two cameras in a single housing for an astonishingly high-quality panoramic view. To achieve this level of quality, it has two separate 2K 4MP image sensors that are stitched together for a fantastic 4K view, providing enough quality to see faces up to 35 feet away even with the ultra-wide angle!
This camera not only produces high-quality 4K video, it acts as a vigilant guard against intruders with it's Active Deterrence features. The built-in red and blue LEDs can be turned on manually using the smartphone app for remote viewing or automatically by one of the various smart detection rules. For audio deterrence, it has a built-in speaker that can be used as a siren to play alerts and sounds to scare off unwanted visitors. The built-in microphone and speaker also enable two-way audio communication.
Don’t worry about nighttime capture with this camera, as it has several ways to light up the area for color or black-and-white recordings. To illuminate the area and stay in color mode, it contains two white light LEDs providing up to 66 feet of visible light. If you prefer a camera that doesn’t stand out as much, then you’ll want to switch it to it’s infrared mode using the two IR LEDs that beam up to 82 feet for black-and-white recording. By default, the camera stays in IR mode with black and white video until motion is detected or one of the event detection rules is triggered. Upon sensing motion, the camera switches on its warm light LEDs to light up the view in color at night.
All of our 4K security cameras, including this one, have H.264 and H.265 encoding, as well as some minor encoding improvements when paired with an Avalonix Premium Series NVR. H.265 offers up to 70% in storage savings compared to H.264. However, with support for traditional H.264, it also works with our older Premium Series NVRs.
Upgrade your surveillance system to the next level with this camera and it’s Smart Detection features. These beneficial analytic features are powered by AI algorithms that actively monitor footage as it’s recorded to check for objects. You can either customize your own rules or take advantage of Smart Motion Detection (SMD), an improvement over old-school pixel-based motion.
Tripwire Detection: Define virtual lines within the camera's panoramic view, and receive instant notifications the moment they are crossed. This feature is crucial for monitoring entrances, restricted areas, or sensitive boundaries, ensuring immediate awareness of any potential security breach.
Intrusion Detection: Our advanced algorithms enable the camera to distinguish between routine movements and potential threats. Any unauthorized entry or suspicious activity within predefined areas is promptly detected and reported, offering you peace of mind and enhanced security.
Smart Motion Detection: Experience unparalleled accuracy with our Smart Motion Detection. The camera distinguishes motion caused by humans and vehicles, ensuring high precision in event detection and significantly reducing false alarms from environmental factors. This means you only receive alerts that matter, making security management more efficient and reliable. You can select from a human and/or vehicle filter.
Audio Detection: Get alerted and start recording when loud noises are heard around the camera.
Beyond the visual and detection capabilities of the camera is it’s built-in audio. The camera has both a built-in microphone and speaker for recording audio, enabling Audio Detection, and using the speaker as a siren or for two-way audio. If the built-in audio devices don’t quite meet the needs for your mounting location, you can use the camera’s audio input and outputs to use our high-quality two-way audio kit.
This camera utilizes Power over Ethernet technology to receive power and uses the same Ethernet cable to send back video, audio, and other data. You can easily run this camera up to 328 feet away directly from your NVR or connect it to your local computer network with daisy chained PoE switches for further distances.
Last but not least, its IP67 weather resistance rating means it’s ready to be installed anywhere inside or outside.
Investing in this camera for your system means you’re getting more than just an ultra-wide view; you’re getting a top-of-the-line active deterrence surveillance beast! Pair it with one of our robust 4K NVRs to get the best experience.
Features
Dual 4MP Image Sensors deliver a panoramic 180° 4K view
Red and Blue LEDs and Siren for Active Deterrence
Up to 35ft of facial detail during the day at 180 degree angle of video1
Up to 66ft of White Light for color night vision provided by two LEDs2
Up to 82ft of Infrared Light for black and white night vision
Starlight Video allows the camera to see in color in low-light3
Day & Night Switching (color vs black & white) in complete darkness
H.265 and H.264 Video encoding
H.265+ provides up to 70% in bandwidth savings over H.264
Triple Video Streams: Main Stream, Sub Stream, Substream 2
Video Analytics features when used with our 4K NVRs
Easy to angle turret dome style to point in virtually any direction when mounting
Easy PoE connectivity to send video/power/audio over one CAT5e cable up to 300ft
Internal MicroSD support up to 256GB (optional factory installed)
Records to NVR, Computer, NAS, FTP, or internal MicroSD
View from NVR, Web Browser, Smartphone or Tablet
IP67 Weather Proof5 - Safe to use outdoors or indoors in cold or hot weather
Ceiling, wall, and pole mountable
12VDC, PoE
Metal construction
1. Under ideal daylight conditions
2. Stated illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object.
3. Camera has a 0.005 Lux rating in color mode.
4. Measured in a quiet office environment. Mono audio is captured by the integrated microphone.
5. Not intended for submersion in water. Installation in a sheltered location recommended.
What's included?
(1) Smart Deterrence 4K Panoramic PoE Camera with Mic and Speaker
Specifications
Image Sensor
Dual 1/2.7" 4MP Progressive Scan CMOS with Starlight
Effective Pixels
4096 (H) x 1860 (V)
Electronic Shutter Speed
Auto/Manual, 1/3- 1/100000s
Minimum Illumination
0.005 Lux F1.4 (Color), (0 Lux IR On)
Starlight Video
Yes
S/N Ratio
More than 56dB
IR Distance
82ft
IR On/Off Control
Auto, Manual
IR LEDs
2
White Light LED Distance
66ft
Light On/Off Control
Auto, Manual
White Light LEDs
2
Lens Type
Fixed
Focal Length
2.8mm
Max Aperture
F1.4
Angle of View
Horizontal: 180° ± 10° Vertical: 86°
Focus Control
Fixed
DORI Distance*
Lens
Detect
Observe
Recognize
Identify
3.6mm
166ft
66ft
33ft
17ft
Compression
H.265+, H.265, H.264+, H.264
Bracket Range
Pan: 0° - 360°, Tilt: 0° - 77°, Rotation: 0° - 360° (Not a Pan Tilt Zoom camera)
NVR, NAS (Network Attached Storage), FTP, Local PC for instant recording, MicroSD up to 256GB
MicroSD
Up to 256GB, factory installed (optional)
Web Viewer
IE, Chrome, Firefox, Edge**
Smart Phone
iPhone, iPad, Android Phone
Power Supply
12V DC, PoE+ (802.3at)
Power Consumption
Max. 11W
Operating Conditions
-40° F - +140° F, Less than 95% RH
Weather Protection
IP67
Vandal Resistance
No
Casing
Metal
Dimensions
4.80" diameter x 5.32" height
Net Weight
2.2 lbs
*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identification means positive ID of a face, recognize means ability to tell the likeness of an individual. **Certain functions like audio, digital zoom, and etc are unavailable in Chrome, Firefox, and Edge browsers due to limitations related to HTML5. Windows plugin installation allows access to full feature set in Windows browsers.
Yes. Our professional Avalonix IP cameras support audio detection, and this setting can be managed through the camera’s built-in web interface.
To access these options, the user would open a web browser such as Chrome or Firefox on a Mac or PC that is connected to the same local network as the camera. After logging into the camera through the browser, they can go into the settings menu and turn audio detection on or off as needed.
In simple terms, audio detection lets the camera listen for sound changes in the area and respond when noise reaches a level you set. Through the web interface, the user can enable the feature, adjust how sensitive it is, set the threshold for what should count as an audio event, and choose what the camera should do when sound is detected. For example, the camera can be set to trigger recording or capture a snapshot when an audio event occurs.
Answer by: CCTV Camera World on Mar 13, 2026, 11:12 AM
