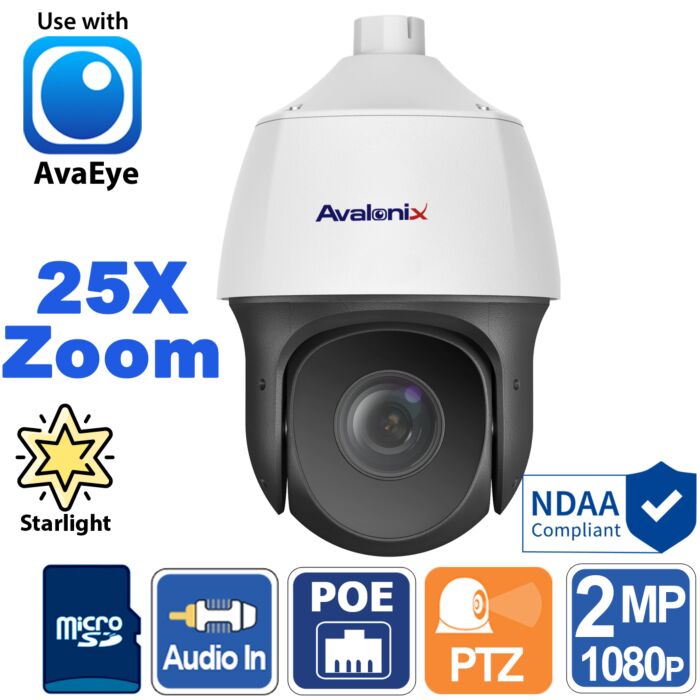

1080P 25X Zoom High Speed Dome, Starlight, Outdoor, AvaEye
- 25X Optical Zoom
- 500ft Infrared Night Vision
- 2MP 1080P 30fps
- Starlight Video
- Video Analytics
- Auto Tracking
- Audio Line-in/out
- Up to 256GB microSD
- IP66 Weather Proof
- Wall or pole mount
- 12VDC or PoE+
This 1080P Starlight PTZ camera comes packed with a 25X optical zoom lens (5-125mm) that allows the operator to zoom in on faraway areas with great visuals, viewing faces from as far away as 1120 feet at full zoom. With the pan-tilt feature, you can cover a large area with relatively little effort using either a web browser, the AvaEye app or software, an AvaEye NVR, or the joystick controller. This camera works great for monitoring large outside areas, parking lots, and buildings. You can even use it inside a warehouse or manufacturing facility to keep an eye on operations.
The professional 1080P resolution sensor provides clear, detailed security footage even when utilizing digital zoom. The excellent imaging technology and professional pan tilt mechanism of this camera provide you with the peace of mind that comes with knowing your property is under constant watch.
![]() |
1080P HD Video1080P security cameras stand as a benchmark in high-definition surveillance, delivering crisp and clear imagery that's a significant leap from older standard-definition systems. With a resolution of 1920x1080 pixels, these cameras capture detailed footage, ensuring that nuances like facial expressions or specific actions are readily discernible. Better digital zoom capabilities made possible by 1080P's superior clarity allow users to concentrate on specific areas of their video feed without suffering a significant loss in image quality. As a widely adopted standard in the surveillance industry, 1080P cameras strike a balance between exceptional video quality and affordability, making them a go-to choice for both homeowners and businesses aiming to enhance their security measures. |
![]() |
Optical ZoomThis PTZ has an optical zoom lens, allowing the user to zoom in and out during live viewing. Coupled with its pan and tilt capabilities, this camera stands out as a top pick for individuals keen on thorough surveillance of their home or business. The 5–125mm motorized zoom lens provides an impressive 25X zoom power. At the widest setting, 5mm, the camera covers a 54.4° view, and when fully zoomed in, it narrows down to a 2.7° angle. Beyond optical zoom, our PTZ cameras also have a digital zoom feature, great for blowing up an area for additional detail in the footage. It's essential to recognize the difference between optical and digital zoom. Optical zoom does actual magnification by physically adjusting the lens and can only alter the viewing angle in real-time. Digital zoom expands the image in real-time or during playback of recorded footage, which will result in pixelation. You can learn more about the difference between optical zoom and digital zoom in the AvaEye security camera system guide. |
![]() |
Auto TrackingExperience the cutting-edge features of some of our AvaEye PoE PTZ Cameras, such as Auto-Tracking. This advanced feature, embedded within the camera, smartly follows people that breach the camera's AI-enabled detection rules that you set up. Depending on the AI based event detection rules offered by the camera, they can be coupled with Auto-tracking to track visible human bodies. |
![]() |
StarlightStarlight video technology enhances the PTZ camera's performance in low-light conditions, providing color video even in dim lighting. Utilizing advanced image processing techniques and a specialized 0.001 Lux image sensor, the camera delivers superior image quality under minimal lighting. Starlight PTZ cameras are particularly suited for poorly-lit outdoor surveillance areas such as parking lots and alleyways. |
![]() |
Night VisionWhether it's daytime or nighttime, the camera seamlessly toggles between color and black and white modes depending on ambient lighting. Starlight video will allow the camera to stay in color mode at lower levels of light than a regular camera. The camera's infrared LEDs provide night vision up to 500 feet, ensuring clear surveillance in complete darkness with black-and-white footage. |
![]() |
Smart CameraWe understand that your security needs are unique. This smart camera features two specialized video analytics for dependable human and vehicle detection with fewer false alarms: Line Crossing, Intrusion Box, Enter/Leave Area. Plus, if you use an add-on microphone connected to the audio input, with audio detection, the camera can initiate recording and alert you when unexpected sounds occur within your set parameters. |
![]() |
Power over Ethernet ConnectivityGone are the days of running multiple cables for pan-tilt-zoom cameras. Thanks to Power over Ethernet (PoE) technology, you can now transfer power, data, and control commands using just one Ethernet cable, reaching up to 300 feet from your NVR or PoE switch. |
![]() |
Many Ways to Control and RecordYou can use our free AvaEye mobile app, the AvaEye PC software, or one of our AvaEye network video recorders (NVRs) to watch and control the camera while away. Avaeye cameras offer versatile storage options. You can choose to save recordings to an AvaEye NVR, utilize the AvaEye software on your PC/Mac, or rely on an internal MicroSD card with a capacity of up to 256GB. |
![]() |
Weather ResistantWith an IP66 rating that protects against dust, water, and high temperatures, this PTZ camera is made for outdoor use. You can also buy different mounting options for the camera, such as a wall mount or a pole mount, for more protection and to make it easier to install. |
![]() |
NDAA CompliantLooking for NDAA-compliant cameras? The National Defense Authorization Act (NDAA) has, in recent times, set restrictions on the utilization of certain surveillance equipment brands in federal and military installations. This limitation also affects businesses and non-profits that benefit from federal grants or sign contracts with the military. Choosing this NDAA-compliant camera provides assurance, guaranteeing your purchase is compliant with these regulations. |
![]() |
AvaEyeAvaEye cameras and NVRs are designed to work really well together, making system setup easy and quick. When you use a compatible NVR, you can enjoy better video analytics and watch footage from your computer or phone. An AvaEye camera and recorder combo is a no-brainer for your home or business security needs. |
Features
- Outdoor 25X Zoom High Speed Pan Tilt Zoom Camera
- Network Based PTZ Camera with built-in webserver
- 2MP Progressive Scan CMOS Image Sensor
- 1920x1080 Resolution Video at 30fps
- Recognize faces up to 56ft at the widest angle, up to 1120ft at maximum zoom1
- Up to 500ft of IR night vision2
- Starlight technology allows camera to see in color at night with ambient light3
- 25X Motorized Optical Zoom
- 16X Digital Zoom
- Day & Night Switching (color vs black & white) in complete darkness
- H.265 and H.264 video encoding
- H.265+ provides up to 70% in bandwidth savings over H.264
- 3 Video Streams: Main Stream, Sub Stream 1, Sub Stream 2
- Advanced Image Features: True WDR / BLC / HLC / 3DNR
- Auto Tracking
- Advanced Video Analytics
- Line Crossing
- Intrusion Detection
- Enter Area
- Leave Area
- Audio-in and -out for external microphone or speaker
- Use with our 2-way audio kit for security cameras
- Learn more about how to add a microphone to a PTZ
- Internal MicroSD support up to 256GB (optional)
- Records to NVR, Computer, NAS, FTP, or internal MicroSD
- View from NVR, Web Browser, Smartphone or Tablet
- IP66 Weather Proof4 - Safe to use outdoors or indoors in cold or hot weather
- 12VDC or 802.3af/at compliant PoE+
- Wall mountable, optional ceiling and pole mounts available
- Easy PoE connectivity to send video/power over one CAT5e cable up to 300ft
- Metal construction
- NDAA Compliant
1. Under ideal daylight conditions
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Camera has a 0.001 Lux rating in color mode. Camera switches to black and white mode in complete darkness.
4. Not intended for submersion in water.
What's included?
- (1) Outdoor 25X Zoom High Speed Dome, Starlight, 1080P
- (1) Wall bracket
Specifications
Camera | ||||||||||||||||||
Image Sensor | 1/2.8" 2MP Progressive Scan CMOS | |||||||||||||||||
Effective Pixels | 1920 (H) x 1080 (V) | |||||||||||||||||
Scanning System | Progressive | |||||||||||||||||
Electronic Shutter Speed | Auto/Manual, 1/1- 1/100000s | |||||||||||||||||
Min. Illumination | 0.001 Lux F1.5 (Color), 0 Lux IR On | |||||||||||||||||
S/N Ratio | More than 52dB | |||||||||||||||||
IR Distance | Up to 500ft | |||||||||||||||||
IR On/Off Control | Auto, Manual | |||||||||||||||||
Wiper | None | |||||||||||||||||
Lens | ||||||||||||||||||
Lens Type | Motorized Zoom with Auto Focus | |||||||||||||||||
Focal Length | 5 – 125mm (25X Optical Zoom) | |||||||||||||||||
Max Aperture | F1.5 - F3.0 | |||||||||||||||||
Angle of View | Horizontal: 54.4° – 2.7° Vertical: 32.2° – 1.5° | |||||||||||||||||
Digital Zoom | Supported | |||||||||||||||||
DORI Distance* | ||||||||||||||||||
|
||||||||||||||||||
Video | ||||||||||||||||||
Video Interface | IP (Network Based Camera) | |||||||||||||||||
Compression | H.265+, H.265, H.264+, H.264 | |||||||||||||||||
Streams | Main Stream, Sub Stream 1, Sub Stream 2 | |||||||||||||||||
Resolution | 1080P (1920x1080), 720P (1280x720), D1 (720x576) | |||||||||||||||||
Frame Rate | Main Stream: 2MP (1-30fps) |
|||||||||||||||||
Bit Rate | 128 Kbps - 16 Mbps | |||||||||||||||||
Day/Night | Auto (ICR), Color, B/W | |||||||||||||||||
Backlight Compensation | BLC, HLC, WDR | |||||||||||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||||||||||
Noise Reduction | DNR (2D/3D) | |||||||||||||||||
Motion Detection | Yes, stream compatible w/ specific NVR or Software | |||||||||||||||||
Region of Interest | Yes | |||||||||||||||||
Electronic Image Stabilization | Yes | |||||||||||||||||
Defog | Yes | |||||||||||||||||
Image Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||||||||||
Privacy Masking | 24 areas, up to 4 per scene | |||||||||||||||||
Video Analytics | ||||||||||||||||||
Auto Tracking | Yes | |||||||||||||||||
Video Analytics | Audio Detection, Motion Detection, Line Crossing, Intrusion Detection, Enter Area, Leave Area | |||||||||||||||||
Audio | ||||||||||||||||||
Compression | G.711U, G.711A | |||||||||||||||||
Audio Interface | 1 Channel-In/Out (2 lead wire) | |||||||||||||||||
Audio Bitrate | 64 Kbps | |||||||||||||||||
Two-way Audio | Supported | |||||||||||||||||
Sampling | 8 kHz | |||||||||||||||||
PTZ | ||||||||||||||||||
Pan/Tilt Range | Pan: 0° – 360° endless; Tilt: -15° – 90° (auto flip) | |||||||||||||||||
Manual Control Speed | Pan: 2° – 75° /s; Tilt: 2° – 75° /s | |||||||||||||||||
Preset Speed | Pan: 180° /s; Tilt: 80° /s | |||||||||||||||||
Number of Presets | 1024 | |||||||||||||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||||||||||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||||||||||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||||||||||||
Patrol Stay Time | 15s - 1800s | |||||||||||||||||
Power up Action | Auto restore to previous zoom and position after power failure | |||||||||||||||||
Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command for a while | |||||||||||||||||
Protocol | PelcoD, Avalonix, or ONVIF | |||||||||||||||||
Network | ||||||||||||||||||
Ethernet | RJ-45 (100Mbps) | |||||||||||||||||
Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS | |||||||||||||||||
Compatibility | ONVIF (Profile S, Profile G, Profile T) | |||||||||||||||||
Max. User Access | 3 Online Users (Up to 32 Accounts, 3 Admin Level Accounts Allowed) | |||||||||||||||||
Recording Methods | NVR, NAS, FTP, Local PC, MicroSD | |||||||||||||||||
Smart Phone | iOS, Android | |||||||||||||||||
Web Viewing | IE,** Edge, Chrome, Safari, Firefox | |||||||||||||||||
Other Connections | ||||||||||||||||||
Memory Slot | MicroSD, Max 256GB (factory installed option) | |||||||||||||||||
BNC | No | |||||||||||||||||
RS485 | Yes | |||||||||||||||||
Power | 5.5mm 12VDC Power Plug, Center Positive | |||||||||||||||||
Alarm | 2/1 channel In/Out | |||||||||||||||||
General | ||||||||||||||||||
Power | 12V DC, PoE+(802.3at) | |||||||||||||||||
Power Consumption | 25W Max (IR LEDs on and PTZ moving) | |||||||||||||||||
Operating Temperature | -22°F to +140°F, Less than 95% Relative Humidity | |||||||||||||||||
Weather Resistance | Yes IP66 | |||||||||||||||||
Vandal Resistance | No | |||||||||||||||||
Dimensions | 14.6" x 8.7" (height x diameter) | |||||||||||||||||
Construction | Metal, Plastic | |||||||||||||||||
Weight | 7.3 lbs | |||||||||||||||||
Certifications | FCC |
*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identify means positive ID of a face, recognize means ability to tell the likeness of an individual.
**IE or Microsoft Edge with IE Mode, provides access to full feature set of the web interface with Plugin installation. Chrome, Firefox, and Edge provide limited functionality of web interface. For full functionality consider using the AvaEye CMS software.
