12V CCTV Power Supply Box

SKU: 12095

Write a Review

Availability: In stock

$50.00

Please choose the number of ports and amps you would like.

* Required Fields

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2 days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

12V Power Supply boxes are a must have for CCTV camera installations with 4 or more cameras. These boxes connect to a regular 110V power outlet and inside have a terminal board that outputs 12V DC voltage for multiple cameras. They come in a few varieties depending on the number of cameras, and the amount of amperage (aka current) they can support:

  • 4 Port 5 Amp
  • 9 Port 5 Amp
  • 9 Port 10 Amp
  • 18 Port 10 Amp
  • 18 Port 20 Amp

Power distribution units such as these are not only preferred by installers, but also every day users installing their own security camera system. Please select the power box you would like to purchase from the selection list above.

What' Included?

Here are specifications of each of the 12V Power Distribution Units you can choose above from this multi-product listing.

12VDC 4 port 5 Amp Model (item 12045)

Specifications

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 1.1 Amp per port
  • Total output current 5 Amp
  • 4 PTC Fuse protected outputs
  • Fuse Rating 1.1Amp
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected

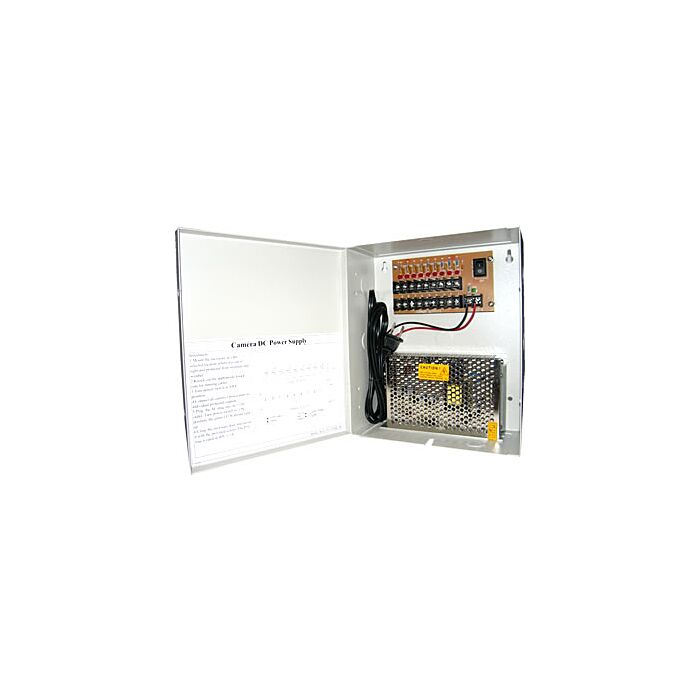

12VDC 9 port 5 Amp Model (item 12095)

Specifications

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 0.55 Amp per port
  • Total output current 5 Amp
  • 9 PTC Fuse protected outputs
  • Fuse Rating 1.1 Amp
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected
  • Size: 9 3/4 x 8 x 3 3/4 inches (HxWxD)



12VDC 9 port 10 Amp Model (item 120910) - High Powered

Specifications

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 1.11 Amp per port
  • Total output current 10 Amp
  • 9 PTC Fuse protected outputs
  • Fuse Rating 2.0 Amp
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected
  • Size: 9 3/4 x 8 x 3 3/4 inches (HxWxD)



12VDC 18 port 10 Amp Model (item 121810)

Specifications

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 0.55 Amp per port
  • Total output current 10 Amp
  • 18 PTC Fuse protected outputs
  • Fuse Rating 1.1 Amp
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected
  • Size: 9 3/4 x 8 x 3 3/4 inches (HxWxD)



12VDC 18 port 20 Amp Model (item 121820) - High Powered

Specifications

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 1.11 Amp per port
  • Total output current 20 Amp
  • 18 PTC Fuse protected outputs
  • Fuse Rating 2.3 Amp
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected
  • Size: 10.2 x 10.5 x 3 inches (HxWxD)

More

More

Return Policy30 Days Return Policy
Warranty1 Year

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

Ask a question... Type Here

Total 4 question(s)

I have TWELVE cameras with individual power adapters. How do the adapters connect to this box? Also which unit would I need?

Question by: Josh on: 2016-09-17

If you currently have premade security camera cabling that is terminated with a DC female connector, you would use the male DC power pigtail with this power box. The male pigtail gets screwed down in to the power terminals inside the power box. If you have 12 cameras, you will need a 18 port power box, and 12 of the male pigtails.


To decide how many amps you need, determine the power consumption for each of your cameras. The 18 port 10 amps power box output 10 amps/18 = 0.55amps per port. The 20 amps power box outputs 1.11 amp per port.

Answer by: Tech Support on: 2016-09-19

Do any of these boxes offer Battery Backup options?

Question by: Alan on: 2016-11-14

Thanks for your question. If you would like to use a battery backup for the power supply box we do carry one that you can find here. However, the run time will vary depending on the draw from the power box. Battery backups are designed to regulate voltage being delivered to devices as well as allow a short period of time to safely power down the unit in case of a power outage.

Don't forget to use Peukert's Law when calculating battery time.

Answer by: David Bloomberg on: 2016-11-14

Hi I need to replace a power supply Model w-12vdc-9p/10a do you have it available and also need one for 18 ports.

Question by: Vidal bravo on: 2016-12-04

On this page you can select the 18port 20amp option to select a 12V 18 port 20amp output power box.

Answer by: Tech Support on: 2016-12-05

Hello.

I am looking to get a 16 channel fused power supply for my dvr system. Currently I am using 15 cameras requiring a 12v power supply and 1 ptz camera requiring a 24v power supply.

I assume I should go with a 12v power supply due to the majority of my cameras requiring a 12v power supply. What would you suggest to do with the ptz camera? Would I be ok running power from 2 channels of the 12v power supply to the ptz? Or should I go a different route? I appreciate your help with this situation.

Question by: David on: 2016-12-29

You cannot run a PTZ requiring 24V AC from a power box that supplies 12V DC. You can use your fixed 12V DC cameras with the power box, and use the 24V AC power supply that came with the PTZ camera to power it. It is not possible to consolidate 24V AC and 12V DC equipment in one box.

Answer by: Tech Support on: 2016-12-29
