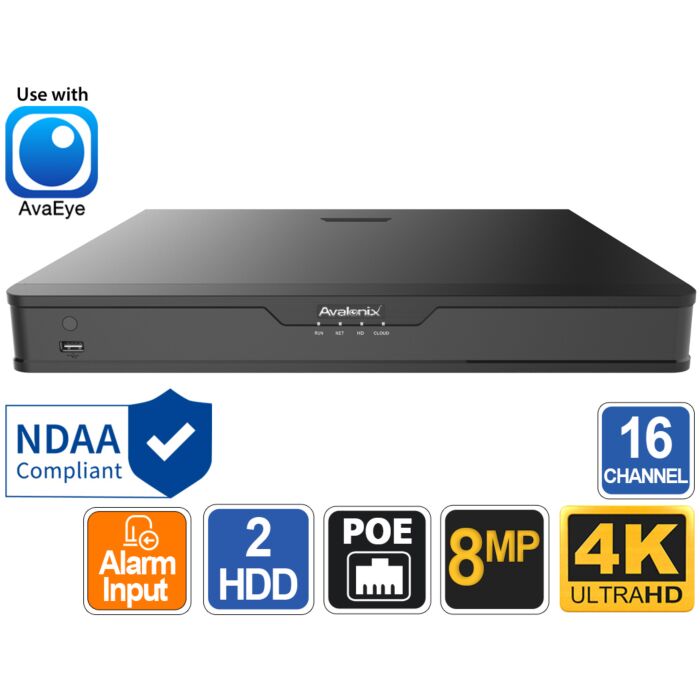

16 Channel 4K NVR with 2 SATA HDD Bays, NDAA Compliant

Special Price $699.99 Regular Price $899.99
In stock
  • 160Mbps Encoding
  • 16 PoE Ports
  • Up to 20TB, 2 HDD
  • HDMI, VGA Output


  • 16 Channel 4K NVR recorder
  • Software embedded on a chip
  • Stay up-to-date with firmware updates at the click of a button
  • H.265 / H.264 Video Encoding
  • Supports up to 8MP or 4K Resolution Recording
  • Mix and Match camera resolutions on one recorder
  • Total 160Mbps Encoding
  • 16 PoE+ ports built-in for easy plug-and-play setup with AvaEye Security cameras
  • Supports extended PoE distances up to 800ft with fixed lens AvaEye cameras
  • Easily configure cameras on the same LAN using on-screen menu
  • Multiple Monitor Outputs
    • HDMI audio/video output supports up to 4K TV
    • VGA Video Output supports up to 1080P
  • Easy remote viewing by scanning QR code
  • IP address and DDNS based remote viewing support
  • FREE Remote Viewing App for iOS and Android
    • iPhone, iPad
    • Android Phones & Tablets
  • FREE Central Monitoring Software for Windows and Mac
  • Customizable recording methods:
    • Continuous
    • Manual
    • Motion activated
    • Schedule based
    • Audio detection
    • Smart Motion Detection
  • Smart Motion Detection event recognition depending on camera model1
    • Line Crossing
    • Intrusion
    • Face Detection
    • People Counting
    • Missing Object Detection
    • Abandoned Object Detection
    • Human body, vehicle, and non-vehicle motion filter
  • Supports up to 2 hard drives, Max 10 TB each
  • Download video evidence multiple ways:
    • Using a small capacity USB drive
    • Using your computer over the LAN or the Internet
  • NDAA Compliant

What's Included?

  • (1) 16 Camera PoE NVR with 2 SATA Ports
  • (1) Power cord
  • (1) USB Mouse
  • SATA HDD screws
  • SATA HDD cables


Operating System Embedded Linux
System Resources Pentaplex function: live, recording, playback, backup & remote access
Control Mode USB mouse, Network, App, PC/Mac Software
Web Browser Support Internet Explorer2, Edge, Chrome, Firefox
IP Camera Inputs 16x RJ45 PoE+ ports (IEEE802.3af/at)
Supported IP Cameras Avalonix, ONVIF Profile S, Profile G, Profile T
Video Output 1 HDMI (video and audio), 1 VGA
Display Split 1 / 4 / 9 / 12 / 16
Display Resolution HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720
VGA: 1920x1080, 1280x1024, 1280x720
Tour Display Supported
Privacy Masking Up to 4 self-defined four-sided zones for privacy masking on each channel
Video / Audio Compression H.265+, H.264+, H.265, H.264
Recording Resolutions 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P/D1/2CIF/CIF
Recording Rate 160 Mbps
Recording Bit Rate 128 Kbps - 16.3 Mbps Per Camera
Outgoing Bandwidth 64Mbps
Recording Mode Manual, Schedule (Regular, Continuous), MD (Motion detection, Camera blank, Video loss), Alarm, Stop, Smart Motion Detection
Recording Interval 60 min, Pre-Record 0-60s, Post-Record 5-600s
Playback Capability 2 channels 4K, 3 channels 5MP, 4 channels 4MP, 5 channels 3MP, 8 channels 1080P
Trigger Events Recording, PTZ movement, Preview, Alarm, Email, Buzzer & Screen Popup
Motion Detection Zones: 396 (22x18), Sensitivity: 1-100 (level 100 is highest)
Video Loss & Camera Blank Supported
Alarm Input / Output 4 channel in / 1 channel out
Playback Grid 1 / 4 / 9 / 12 / 16
Corridor Mode Screen 3/4/5/7/9/10/12/16
Video Search Mode Time/Date, Alarm, MD, Video Loss, Exact search (accurate to second), Smart Search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Backup selection, Digital zoom, Video retrieval
Backup Mode USB Device / LAN / Internet
Ethernet 1x RJ-45 LAN port (1 Gbps)
Network Functions HTTPS, HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Segment Search (Supports ONVIF IP camera, DVR, NVR, etc)
Hard Disk 2 SATA ports, 10TB each
Total HDD Capacity Up to 20 TB
USB Interface 1 Rear USB 3.0, 1 Front USB 2.0
Power Supply 100-240 VAC
Power Consumption Approx Max 10 Watts without HDD
PoE Power Max 30W for single port
Total PoE 240W Max
Working Environment +14°F to +131°F / 10-90% RH
Dimensions 14.9" x 12.4" x 2.1" (WxDxH)
Weight 6 lbs

1. AvaEye security camera with Smart Motion Detection capability required. Event detection based on camera capabilities.
2. Internet Explorer provides access to full feature set of the web interface. Chrome, Firefox, and Edge provide limited functionality of web interface and may require plugin installation.

More Information
Number of PoE Inputs16
RAID RedundancyNo
Warranty1 Year
Recorder TypeNVR
CPUEmbedded Dual Core
Total Cameras Supported16
Supported Camera SignalsIP
Number of BNC InputsDoes Not Support BNC Cameras
Number of IP Cameras Supported16
Hot Swap HDDNo
Encoding SupportedH.264, H.265
Recording Resolutions8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
Number of Audio Inputs16 IP Streams
Power Input110-220V AC
Video Outputs(1) HDMI, (1) VGA
USB Ports(1) USB 2.0, (1) USB 3.0
eSATA PortNone
Encoding Support DetailH.265+, H.265, H.264+, H.264
Return Policy30 Days Return Policy
