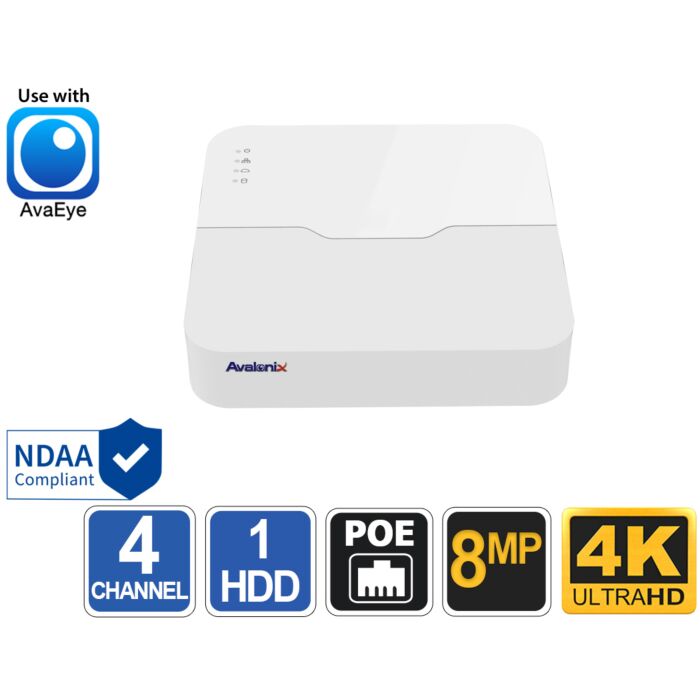

4 Camera 4K NVR with 4 PoE Ports, AvaEye

Special Price $369.99 Regular Price $459.99
In stock
SKU
NVR04P
1TB
2TB
4TB
6TB
8TB
  • 80Mbps Encoding
  • 4 PoE+ Ports
  • Up to 8TB, 1 HDD
  • HDMI, VGA Output
  • For AvaEye Cameras

Features:

  • 4 Channel NVR recorder
  • Software embedded on a chip
  • Stay up-to-date with firmware updates at the click of a button
  • H.265 / H.264 Video Encoding
  • Supports up to 8MP or 4K Resolution Recording
  • Mix and Match camera resolutions on one recorder
  • Total 80Mbps Encoding
  • 4 PoE+ ports built-in for easy plug-and-play setup with AvaEye Security cameras
  • Easily configure cameras on the same LAN using on-screen menu
  • Multiple Monitor Outputs
    • HDMI audio/video output supports up to 4K TV
    • VGA Video Output supports up to 1080P
  • Easy remote viewing by scanning QR code
  • IP address and DDNS based remote viewing support
  • Plugin free web interface for live viewing over LAN on PC or Mac1
  • Free AvaEye Remote Viewing App for iOS and Android
    • iPhone, iPad Compatible
    • Android Phones & Tablets Compatible
  • Free AvaEye Monitoring Software for Windows and Mac
  • Customizable recording methods:
    • Continuous
    • Manual
    • Motion activated
    • Schedule based
    • Smart Event Detection2
    • Audio detection3
  • Smart Event Detection depending on camera model2
    • Line Crossing
    • Intrusion
    • Enter Area
    • Leave Area
    • Scene Change Detection
    • People Counting
    • Missing Object Detection
    • Abandoned Object Detection
    • Auto Tracking
    • Ultra Motion Detection
  • Supports up to 1 hard drive, Max 8TB
  • Download video evidence multiple ways:
    • Using a small capacity USB drive
    • Using your computer over the LAN or the Internet
  • NDAA Compliant

What's Included?

  • (1) 4 Camera PoE NVR
  • (1) Power cord
  • (1) USB Mouse
  • SATA HDD screws
  • SATA HDD cable

Specifications

Operating System Embedded Linux
System Resources Pentaplex function: live, recording, playback, backup & remote access
Control Mode USB mouse, Network, App, PC/Mac Software
Web Browser Support Edge, Chrome, Firefox1
IP Camera Inputs 4x RJ45 PoE+ ports (IEEE802.3af/at)
Supported IP Cameras AvaEye, ONVIF Profile S, Profile G, Profile T
Video Output 1 HDMI (video and audio), 1 VGA
Display Split 1 / 4
Display Resolution HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720
VGA: 1920x1080, 1280x1024, 1280x720
Tour Display Supported
Privacy Masking Up to 4 self-defined four-sided zones for privacy masking on each channel
Video Compression H.265+, H.264+, H.265, H.264
Audio Compression G.711A, G.711U
Recording Resolutions 4K, 5MP, 4MP, 3MP, 1080P, 720P/D1/2CIF/CIF
Recording Rate 80 Mbps
Outgoing Bandwidth 64 Mbps
Smart Detection by Camera2 Intrusion Detection, Line Crossing Detection, Enter Area, Leave Area, Scene Change Detection, Abandoned Object Detection, Missing Object Detection, Auto Tracking, Ultra Motion Detection (UMD), People Flow Counting, Crowd Density Monitoring
Recording Mode Manual, Schedule (Regular, Continuous), MD (Motion detection), Smart Event Detection2
Recording Interval 60 min, Pre-Record 0-60s, Post-Record 5-600s
Playback Capability 2 channels 4K, 3 channels 5MP, 4 channels 4MP, 8 channels 1080P
Trigger Events Recording, PTZ movement, Preview, Alarm, Email, Buzzer & Screen Popup
Motion Detection Zones: 396 (22x18), Sensitivity: 1-100 (level 100 is highest)
Video Loss & Camera Blank Supported
Alarm Input / Output N/A
Playback Grid 1/4 channels
Corridor Mode Screen 3/4
Video Search Mode Time/Date, Alarm, MD, Video Loss, Exact search (accurate to second), Smart Search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Backup selection, Digital zoom, Video retrieval
Backup Mode USB Device / LAN / Internet
Ethernet 1x RJ-45 LAN port (10/100Mbps)
Network Functions HTTPS, HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Segment Search (Supports ONVIF IP camera, DVR, NVR, etc)
Hard Disk 1 SATA port
Total HDD Capacity Up to 8 TB
USB Interface Rear: 1x USB 2.0, 1x USB 3.0
Power Supply 100-240 VAC to 48VDC Adapter included
Power Consumption Approx Max 9 Watts without HDD
PoE Power Max 30W for single port
Total PoE 54W Max
Working Environment +14°F to +131°F / 10-90% RH
Dimensions 8.1" x 8.1" x 1.8" (WxDxH)
Weight 1.3 lbs
CertificationFCC

1. Chrome, Firefox, Edge and other Web Browsers provide limited functionality of web interface such as max 1080P video sampling and single camera viewing in live view mode. Windows Plugin installation provides access to full feature set of the web interface, including support for up to 4K resolution viewing, recorded view playback, and up to 16 channel grid view in live view mode.
2. Smart Event Detection based on camera capabilities. AvaEye PoE camera with Smart Event Detection capability required. Please check the product description of the camera to review its event detection capabilities.
3. AvaEye PoE camera with Audio Detection required.

More Information
Number of PoE Inputs4
Max Hard Drive Capacity1HDD, 8TB
RAID RedundancyNo
Warranty1 Year
Recorder TypeNVR
CPUEmbedded Dual Core
Total Cameras Supported4
Supported Camera SignalsIP
Number of BNC InputsDoes Not Support BNC Cameras
Number of IP Cameras Supported4
Hot Swap HDDNo
Encoding SupportedH.265+, H.265, H.264+, H.264
RackmountableNo
Recording Resolutions8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
Number of Audio Inputs4 IP Streams
Total PoE Power50 W
Power Input110-220V AC
Video Outputs(1) HDMI, (1) VGA
USB Ports(1) USB 2.0, (1) USB 3.0
eSATA PortNone
Total IP Recording Bandwidth80 Mbps
Total Incoming IP Bandwidth80 Mbps
Encoding Support DetailH.265+, H.265, H.264+, H.264
Return Policy30 Days Return Policy
BrandAvaEye
