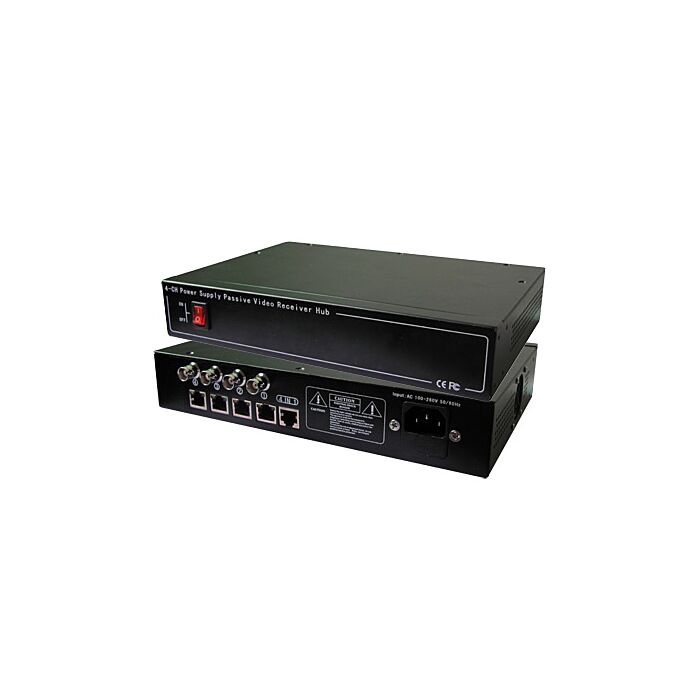

4 Channel Video Balun Receiver and Power Supply Hub

SKU: BPH04

Write a Review

Availability: In stock

$120.00
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

This 4 channel video balun receiver is two units in one. It has a built-in 4 camera passive video balun receiver and 12V DC power supply box so you can carry video and power over a single network cable that is either CAT5e or CAT6 for CCTV cameras. This simplifies the number of devices needed for a CCTV camera system, and allows for video transmission to lengths impossible for a coax siamese wire. This 4 camera video balun receiver with power works with our Video Power Baluns which you will need on the camera end to convert the BNC video signal and power to RJ45. These multi-channel video power balun hubs support 12V DC powered cctv cameras, including bullet, dome, or 12V PTZ Cameras. The total amperage output of the built-in power is 5amps, which is plenty for cameras with up to 100ft infrared, but be sure to check the amperage of your infrared night vision cameras. For cameras without IR, you should have no problem running power up to 750ft.

There are two ways to use this balun + power hub:

Method 1: Direct connection to camera balun and DVR
You can connect your DVR recorder directly to the BNC video outputs on the receiver, with a max 1300ft video transmission distance from the camera using the passive video power baluns, and power up to 750ft.



Method 2: Using the video power balun hub as a relay point between a camera and multi-channel video balun receiver that is active or passive. You can use this video power balun hub up to 750ft away from a video power balun connected to a camera to carry both video power signals. The video signals being received from up to 4 cameras can be retransmitted or relayed using the single RJ45 port labeled "4 in 1" to another multi-channel video balun receiver located near the DVR. This relay method allows the user to transmit video up to an additional 1300ft from this hub. This method is very useful in scenarios where 4 security camera signals need to be consolidated in to one wire to make wiring neater for large business installations with long cable runs.



What's Included?



Specifications

Transceiver Type4 CH Passive Video Balun Receiver & Power Supply Hub (VPS)
Video/Power Inputs4x RJ45
Video Output4x BNC for connection to DVR, 1x RJ45 for relay to multi-channel balun receiver
VideoFrequency Response Range: DC-5MHz;  Common-Mode / Differential-Mode rejection: 5KHz-5MHz 60dB type
Compatible Wire Type24-16AWG UTP CAT5 or higher; DC loop resistance <= 18Ω/ 100m; Differential capacitance: 62pF/m (max)
ImpedanceUTP or Connection or RJ-45: 100Ω;  BNC Coax:75Ω
Power Input110V AC
Power Transmission12V DC up to 750 ft Via UTP CAT5e or CAT6

More

More

Return Policy30 Days Return Policy
Warranty1 Year
