4MP Pro Series Surveillance Camera, 4X Zoom - Clearance
- 4MP IP Bullet Camera, ONVIF compatible
- 2.8-12mm Motorized Zoom Lens
- 108° - 31° Angle of View
- Up to 100ft IR night vision
- True WDR
- Up to 128GB microSD
- 12VDC or PoE
- IP67 Weather Proof
- Ceiling/Wall Mount Design
- Use with Pro Series NVRs

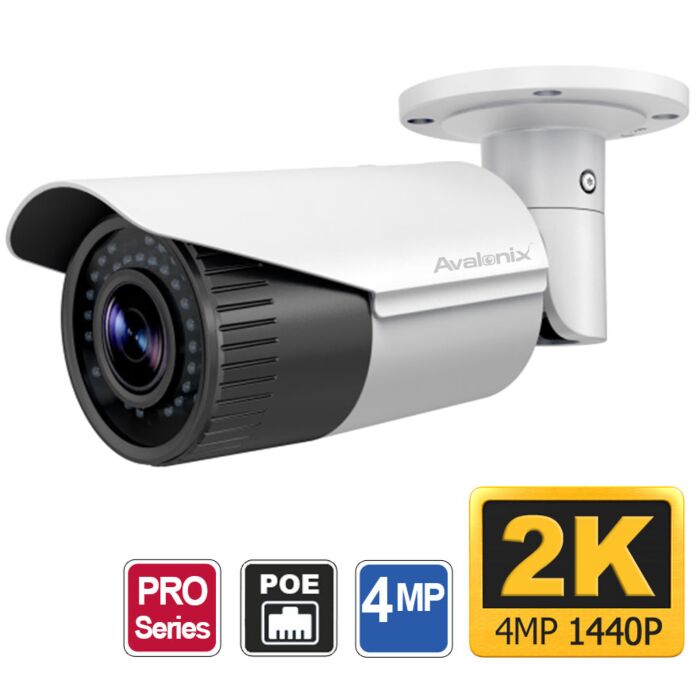

This Avalonix Pro Series 4MP Bullet Camera is a professional IP camera with motorized zoom lens that offers up to 4X optical zoom. Using this camera you can identify a face up to 75ft away in lit conditions when zoomed in all the way. To understand the different between optical and digital zoom, please watch a great video we have explaining how it works on security camera systems.
It is a motorized zoom security camera. You can control the zoom lens on this camera to zoom in or out while viewing in live view mode from either the NVR, computer, or smartphone. It is a must have for retail businesses to have a camera that can be set at a precise angle of view or zoom level to see money being exchanged from a cash register. It is also very popular among schools for perimeter security or long hallways where one camera can be installed and the optimal angle of view can be selected after installation.
The camera produces stunning 2K resolution video that will help prosecute in any application where facial detail up to 75ft is needed. At the widest setting, the camera's video resolution can identify a face up to 40ft; at full 4X optical zoom it can identify a face up to 75ft away. This outdoor bullet security camera also offers up to 100ft of infrared night vision. With a weather proof rating of IP67, it can operate indoor or outdoor without an overhang for weather protection.
Utilize plug-and-play technology as this camera supports Power Over Ethernet (PoE) to be used with one of our Pro Series PoE NVRs. To record video, we suggest using one of our Pro Series NVR for best compatibility. This network camera is also ONVIF compliant and will work with several brands of professional surveillance recording solutions. If you plan to use it with a recording solution other than our Pro Series NVRs, please click on the product question button underneath the product title to check for compatibility.
Features:
- Compatible with Avalonix Pro Series NVRs
- Weather Proof Network Bullet Camera with Motorized Zoom
- 4MP Progressive Scan CMOS Image Sensor
- H.264+/H.264 Dual Stream Video Encoding
- H.264+ provides up to 50% bandwidth savings over H.264
- Selectable recording resolution:
- 20 fps at 4MP (2688x1520)
- 20 fps at 3MP (2304x1296)
- 30 fps at 1080P (1920 x 1080 or 1280x720)
- 2.8-12mm Motorized Zoom Lens
- 108° - 31° Angle of View
- Up to 100ft night vision
- IR glare reduction via Smart IR function
- True WDR for glare reduction
- IR Cut Filter (ICR), 3D Noise Reduction
- Motion detection with user configurable regions
- Built-in Web Server for configuration
- Use as standalone camera for viewing with web browser or Smartphone
- Use Pro Series NVRs for recording and easy management
- Hikvision Compatible
- Supports up 128GB microSD card
- ONVIF Profile S, Profile G Compliant
- Use outdoors or indoors
- IP67 Weather Proof Rating
- 12VDC or PoE (802.3af) Power Input
- Ceiling and wall mount design
What's included?
- (1) 4MP Avalonix Pro Series IP Bullet Camera, 2.8-12mm Varifocal Lens
Specifications:
Image Sensor | 1/3" 4MP Progressive Scan CMOS | ||||||||||||||||||||||||||||||||||
Effective Pixels | 2688(H) x 1520(V) | ||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual, 1/3 - 1/100000s | ||||||||||||||||||||||||||||||||||
Minimum Illumination | 0.01 Lux/F1.2 (Color), 0 Lux (IR on) | ||||||||||||||||||||||||||||||||||
IR Distance | 100ft max | ||||||||||||||||||||||||||||||||||
IR On/Off Control | Auto, Manual | ||||||||||||||||||||||||||||||||||
Lens Type | Motorized | ||||||||||||||||||||||||||||||||||
Focal Length | 2.8-12mm | ||||||||||||||||||||||||||||||||||
Angle of View | Horizontal: 108° - 31° | ||||||||||||||||||||||||||||||||||
Focus Control | Motorized | ||||||||||||||||||||||||||||||||||
Close Focus Distance | N/A | ||||||||||||||||||||||||||||||||||
Distance to Recognize* | Wide: 49ft, Tele: 125ft | ||||||||||||||||||||||||||||||||||
Distance to Identify* | Wide: 40ft, Tele: 75ft | ||||||||||||||||||||||||||||||||||
Compression | H.264+, H.264 | ||||||||||||||||||||||||||||||||||
Streaming Capability | 2 Streams (Main Stream, Sub Stream) | ||||||||||||||||||||||||||||||||||
Main Stream | 4MP (2688x1520), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720) | ||||||||||||||||||||||||||||||||||
Sub Stream | 640x360, 352x240 | ||||||||||||||||||||||||||||||||||
Frame Rate | 4MP/3MP (1 - 20fps), 1080P / 720P / D1 / CIF (1 - 30fps) | ||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR, VBR | ||||||||||||||||||||||||||||||||||
Bit Rate | H264: 32Kpbs - 16Mbps | ||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR), Color, B/W | ||||||||||||||||||||||||||||||||||
BLC Mode | BLC, HLC, WDR 120db | ||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||
Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||
Motion Detection | Off / On (4 Zone, Rectangle) | ||||||||||||||||||||||||||||||||||
Region of Interest | Off / On (1 Zone) | ||||||||||||||||||||||||||||||||||
Smart IR | Yes | ||||||||||||||||||||||||||||||||||
Digital Zoom | Yes | ||||||||||||||||||||||||||||||||||
Flip | 0°, 90°, 180°, 270° | ||||||||||||||||||||||||||||||||||
Mirror | Off, On | ||||||||||||||||||||||||||||||||||
Privacy Masking | Off, On (4 Area, Rectangle) | ||||||||||||||||||||||||||||||||||
Audio Input | No | ||||||||||||||||||||||||||||||||||
Ethernet | RJ-45 100Mbps | ||||||||||||||||||||||||||||||||||
Protocols | HTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, IPv4/v6, UPnP, NTP, Bonjour, 802.1x, ICMP, IGMP, SNMP | ||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | ||||||||||||||||||||||||||||||||||
Max. User Access | 5 Users | ||||||||||||||||||||||||||||||||||
Recording Method | Built-in microSD, NVR, NAS (Network Attached Storage), Local PC for instant recording | ||||||||||||||||||||||||||||||||||
MicroSD | microSD slot support up to 128GB | ||||||||||||||||||||||||||||||||||
Web Viewer | IE | ||||||||||||||||||||||||||||||||||
Smart Phone | iPhone, iPad, Android Phone | ||||||||||||||||||||||||||||||||||
Power Supply | DC12V, PoE (802.3af) | ||||||||||||||||||||||||||||||||||
Power Consumption | 11W | ||||||||||||||||||||||||||||||||||
Operating Conditions | -22°F – +140°F, Less than 95% RH | ||||||||||||||||||||||||||||||||||
Weather Protection | IP67 | ||||||||||||||||||||||||||||||||||
Vandal Resistance | No | ||||||||||||||||||||||||||||||||||
Casing | Metal, Plastic | ||||||||||||||||||||||||||||||||||
Dimensions | 3.6" x 4.1" x 11.6" | ||||||||||||||||||||||||||||||||||
Net Weight | 2.6 lbs |
*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.
Lens | 2.8-12mm |
---|---|
Wide Dynamic Range (WDR) | WDR 120db |
Pan Tilt Zoom | No |
Dimensions | 3.6" x 4.1" x 11.6" |
Operating Temperature | -22°F to +140°F |
Video Encoding | H.264+/H.264 |
Image Sensor | 1/3" 4MP CMOS |
Weather Proof | Yes, IP67 |
Warranty | None, Clearance Item |
Camera Resolution | 4MP |
Signal Type | IP |
Camera Color | White |
Night Vision | 100ft |
Power Input | 12V DC / PoE |
Angle of View | 108° - 31° |
Optical Zoom | Motorized Zoom |
SD Card Slot | Yes |
Microphone | No |
Video Analytics | No |
Return Policy | 30 Days Return Policy |
Brand | Avalonix |
