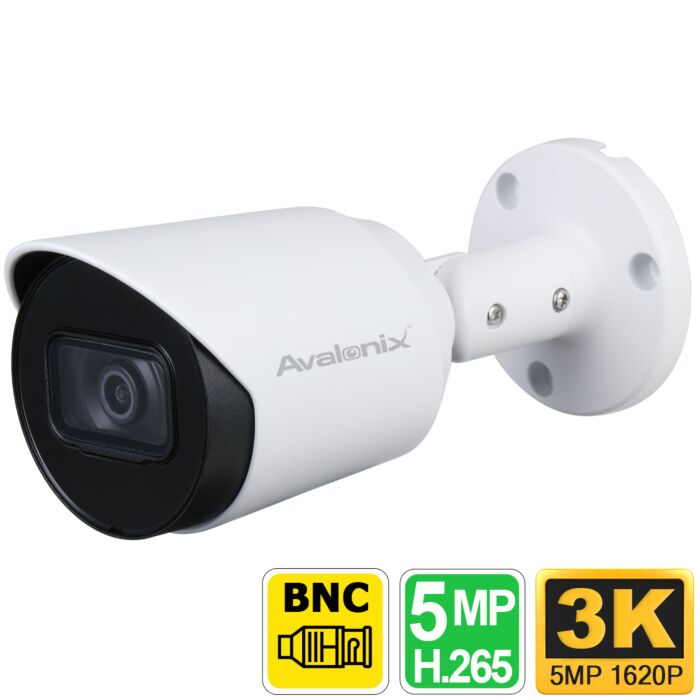

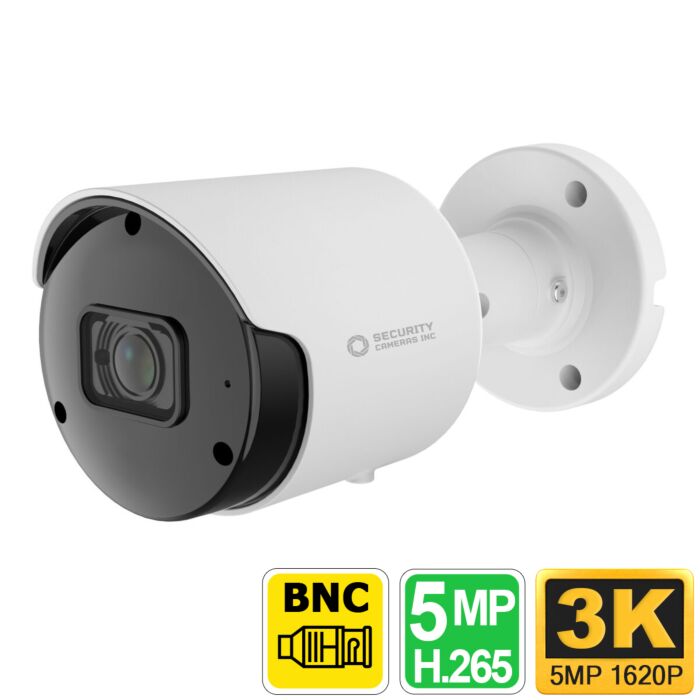

5MP 3K Analog Bullet Security Camera

Special Price $119.99 Regular Price $149.99
In stock
SKU
5M2452
  • Buy 4 for $109.99 each and save 8%
  • Buy 8 for $104.99 each and save 13%
  • Buy 16 for $97.99 each and save 18%
  • 5MP Analog Bullet Camera
  • 3.6mm Lens, 92° View
  • 100ft IR night vision
  • IP67 Weather Proof
  • 12V DC
  • Wall/Ceiling Mount

This 5MP HD Security Camera with Night Vision captures video in 3K 5MP resolution, providing image quality on par with that of IP cameras. An excellent feature of this 3K Analog security camera is its compatibility with commonly available RG59 coax cable. Using a high-quality solid copper conductor RG59 coax cable, the camera's HD security over Coax technology allows the video signal to be run up to 1600 feet without signal loss in HDCVI mode using one of the Premium DVR recorders by Avalonix. It is a great option for people who want to upgrade to an HD security camera system but do not want to incur the cost of rewiring their home or business with network cabling for IP cameras.

Whether you are upgrading an existing security camera system or putting together a brand-new one, this 5MP HD over Coax camera is a great choice. The 3.6 mm fixed lens on this bullet camera captures a wide 92 degree field of view when in 5MP mode. You can keep watch over your property day & night thanks to the high-intensity super-infrared LED that provides night vision for distances of up to 100 feet.

The camera's metal construction makes it suitable for use in harsh weather conditions without protection from an overhang or eave. With the exception of a hurricane or tornado, you can rely on it to keep functioning no matter the conditions. Mounting options for the camera include a wall, ceiling, or pole. Due to its compact size, it can be used anywhere, including inside. The camera bracket protects the camera pigtail from wire snipping and tampering.

The camera also has an on-screen display menu (OSD) that can be controlled using a DVR or XVR when the camera is in HD mode. The OSD allows fine control of the video brightness, contrast, gain, and other key video features.

This camera supports a variety of video signal types thanks to its 4-in-1 switchable TVI/ AHD / CVI / CVBS technology. You can choose 5MP/4MP/1080P HDCVI or 4MP TVI/AHD video or analog CVBSvideo output for compatibility with a standard-definition older 480P, D1, or 960H DVR. To switch the video signal type, you will need a 5MP compatible DVR, or you can contact us using our support form to switch it for you before your order is shipped.

Features

  • 3K 5MP Bullet Camera with Night Vision
  • 5MP Video Resolution
  • Up to 100ft Night Vision
  • 3.6mm fixed lens
  • 92° angle of view
  • Built-in IR cut filter (ICR)
  • SMART IR to minimize IR glare
  • Selectable output resolution
    • 5MP 25fps (CVI)
    • 4MP 30fps (CVI, TVI, AHD)
    • 1080P 30fps (CVI)
    • 960H or D1 (CVBS)
  • Requires a HDCVI DVR or XVR for use in 5MP mode
  • Can be set to 960H analog resolution as well
  • HDCVI, TVI, AHD, Analog CVBS switchable video output using OSD menu
  • IP67 weatherproof rating for protection against rain, snow, dirt
  • Metal construction
  • Small size suitable for indoor or outdoor
  • Wall, ceiling, pole mountable
  • BNC video output
  • 12V DC

Camera Pigtail

connections on camera pigtail

What's Included?

  • (1) 5MP 3K HD Bullet Security Camera

optional mounts available

Specifications

Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 5MP
Effective Pixels 2880 (H) x 1620 (V)
Frame Rate CVI: 25fps 5MP / 30fps 4MP/1080P
TVI/AHD: 30fps 4MP
CVBS: 960H
Shutter Speed 1/30 - 1/100,000s
Lens 3.6mm Fixed Lens
Angle of View 92°
Distance to Detect* 263ft
Distance to Recognize* 52ft
Distance to Identify* 26ft
Minimum Illumination 0.01 Lux, 0 Lux IR On
IR LEDs 1 Super LED
IR Distance 100ft max
IR Control Auto / Manual
Day/ Night Auto (ICR) / Manual
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, Manual
Noise Reduction 2D
Smart IR Auto, Manual
Video Connector (1) BNC
Video Signal HDCVI, HDTVI, AHD, CVBS Switchable via OSD
Microphone None
OSD Via HDCVI DVR
Operating Temperature -40°F to +140°F
Weather Resistance IP67
Construction Aluminum
Dimensions 6.87" x 2.85" x 2.78"
Power 12V DC 3.2W
Weight 1 lb

*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.

More Information
Lens3.6mm
Wide Dynamic Range (WDR)WDR 120db
Pan Tilt ZoomNo
Dimensions6.48" x 2.76" x 2.82"
Operating Temperature-22°F to +140°F
Video EncodingAnalog, H.264, H.265
Important FeaturesRequires 4MP HDCVI DVR for use
Image Sensor1/3" CMOS Sensor
Weather ProofYes, IP67
Warranty1 Year
Camera Resolution4MP
Signal TypeHDCVI
Camera ColorWhite
Night Vision100ft
Power Input12V DC
Angle of View80°
Optical ZoomNo
SD Card SlotNo
MicrophoneNo
Return Policy30 Days Return Policy
BrandAvalonix
