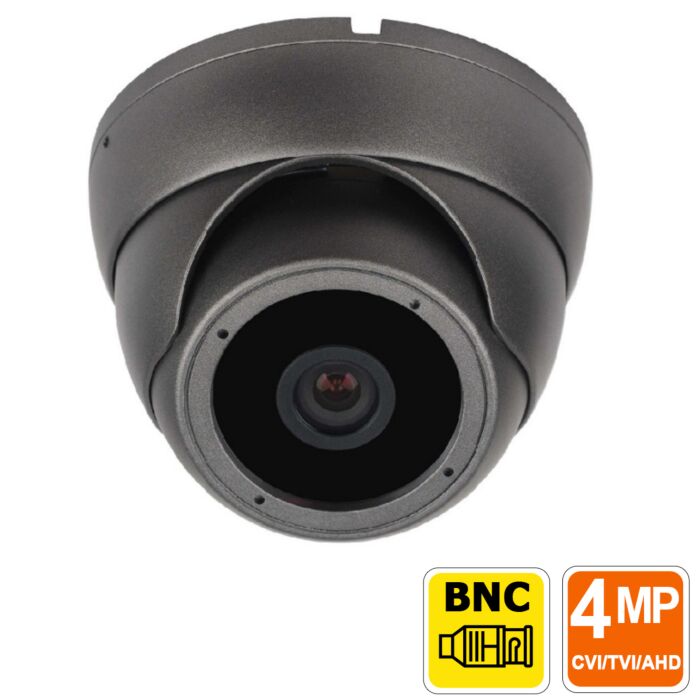

Indoor Turret Dome Analog Security Camera - Clearance

Special Price $65.00 Regular Price $145.00
In stock
SKU
4M62B
  • BNC 4MP and Analog
  • 3.6mm Lens, 75° View
  • 70ft IR night vision
  • Indoor Camera
  • 12V DC
  • Wall/Ceiling Mount

This is an indoor turret dome camera with 4MP sensor can be used with a HD security DVR that support CVI/TVI/AHD signal types or with standard definition CCTV equipment that supports CVBS signal types. There is a joystick on the camera pigtail that let's you easily switch the signal type. The camera provides a 75 degree view, and up to 75ft of night vision in complete darkness. If you're using it in HD mode, you can expect facial detail up to 30ft from the camera in lit conditions. It can be used in a HVAC controlled indoor environment with temperature between 50°F and up to 90°F.

Features

  • 4MP Resolution
  • Easy to mount turret dome design
  • Supports Real Time video at 4MP or CVBS
  • Video signal switchable by joystick on pigtail
  • BNC Video Output
    • 4MP TVI, CVI , or AHD
    • D1 CVBS
  • IR Night Vision up to 75ft
  • Smart IR to minimize glare
  • 3.6mm fixed lens
  • 75° Wide angle of view
  • IR On/Off Control
  • 2D Noise Reduction
  • BLC/HLC/DWDR
  • Indoor Use Only in temperature controlled environment
  • Metal construction
  • Wall, ceiling mountable
  • 12V DC 0.5A power input required
  • Clearance item - all sales final, test on video to be in working order before shipment

What’s Included?

  • (1) 4MP Indoor Turret Dome Analog Security Camera

Specifications

Image Sensor 1/3" Progressive Scan CMOS
Resolution4 MP
Effective Pixels2688 (H) x 1520 (V)
Frame Rate 30fps 4MP
Shutter Speed1/30 - 1/100,000s
Lens3.6mm Fixed Lens
Angle of View 75°
Distance to Recognize*50ft
Distance to Identify* 30ft
Minimum Illumination 0.1 Lux, 0 Lux IR On
IR Distance 75ft max
IR ControlAuto / Manual
Day/ NightAuto (ICR) / Manual
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto, Manual
Noise Reduction2D
Smart IRAuto, Manual
Video Connector1x BNC
Video Signal HDCVI, TVI, AHD, CVBS
MicrophoneNone
OSD Via Joystick on Cable
Operating Temperature +50°F to +90°F
Weather Resistance None
ConstructionAluminum
Dimensions3.68" x 3.13"
Power 12V DC 5W

*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.

More Information
Lens3.6mm
Wide Dynamic Range (WDR)DWDR
Pan Tilt ZoomNo
Dimensions3.7" x 3.2" (diameter x height)
Operating Temperature-40°F to +140°F
Weight1 lb
Video EncodingAnalog, H.264, H.265
Important FeaturesRequires 4MP capable DVR for use
Image Sensor1/3" 4MP CMOS
Weather ProofYes, IP66
WarrantyNone, Clearance Item
Camera Resolution4MP
Signal Type4-in-1
Camera ColorDark Grey
Night Vision70ft
Power Input12V DC
Angle of View75°
Optical ZoomNo
SD Card SlotNo
MicrophoneNo
Return Policy30 Days Return Policy
