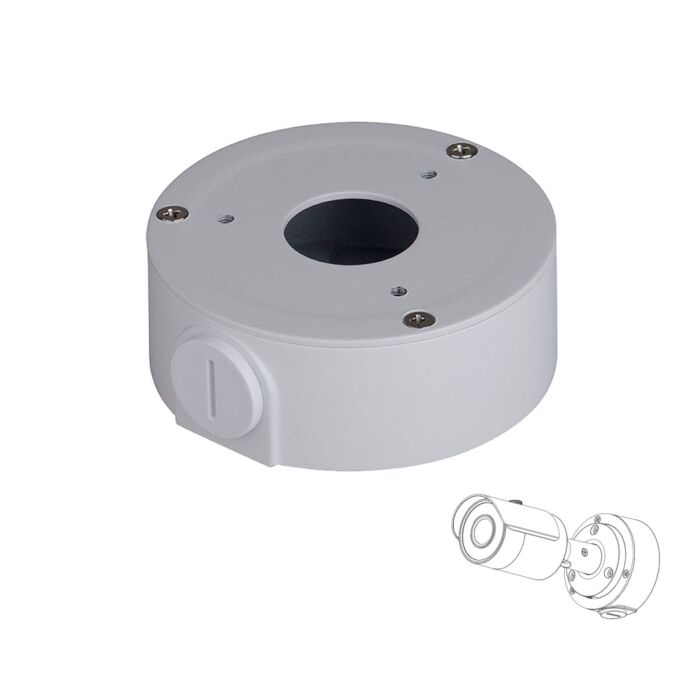

Junction Box for Mini Bullet Cameras
$24.00
Overview
Mini Bullet Camera Junction Box - White aluminum junction box for select mini bullet camera models.
Pigtail Protection - Helps conceal and protect the camera pigtail from weather exposure and tampering when installed correctly.
Conduit Ready - G1/2 conduit thread size for cleaner cable routing into the box.
Mounting Options - Can mount directly to a wall and can connect to compatible pole or corner mount brackets listed for this model.
Compact Size - Measures 3.54 x 1.42 inches with a 2.2 lb load rating and 0.53 lb product weight.
Compatibility Note - Front screws match select mini bullet camera brackets. Check your camera description before ordering.
Metal construction junction box for use with specific models of our mini bullet cameras. This junction box is ideal for installations where you need to conceal and protect the camera's pigtail from the elements and vandals, or connect a conduit to the junction box. This item is available in white only. It can be mounted directly on to a wall and connected to a conduit, or it can be connected to any of the following pole mounts which match the mounting holes on the back of the junction box.
Compatible Pole Mount
Compatible Corner Mount
Please see your camera's description to determine whether it is compatible with this junction box. Screws on the front of this junction box match select bullet camera brackets.
What's Included?
- (1) Junction Box
Specifications
| Material | Aluminum |
| Dimensions | 3.54" x 1.42" (diameter x height) |
| Conduit Thread Size | G1/2" |
| Color | White |
| Operating Temperature | -40°F - +140°F |
| Humidity | 0-90% RH |
| Load Bearing | 2.2 lbs |
| Weight | 0.53 lbs |
| Brand | Avalonix |
|---|---|
| Warranty | None for accessories |
| Return Policy | Accessories are non-returnable, non-refundable. |
