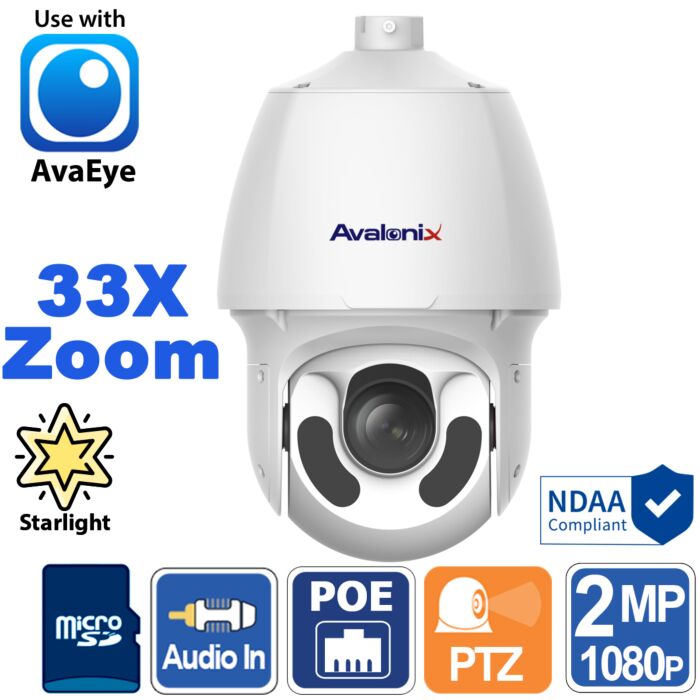

Outdoor 1080P High Speed Dome Camera with 33X Zoom Lens, Deep Learning AI, Starlight, Night Vision, AvaEye

Special Price $1,099.00 Regular Price $1,374.00
In stock
SKU
PTZIR2M33
No microSD Card
128GB microSD Card
256GB microSD Card
No Power Supply
1 Camera PoE Power Injector
6ft CAT5e
25ft CAT5e
50ft CAT5e
100ft CAT5e
100ft CAT5e Full Copper
150ft CAT5e
  • 33X Optical Zoom
  • 500ft Infrared Night Vision
  • 1080P 60fps
  • Starlight Video
  • Video Analytics
  • Face Detection
  • Auto Tracking
  • Audio Line-in/out
  • Up to 256GB microSD
  • IP66 Weather Proof
  • Wall or pole mount
  • 24VAC or 60W PoE

Discover the impressive capabilities of this 1080P PTZ Dome Camera equipped with an impressive 33X optical zoom lens. Zoom into distant scenes with remarkable clarity, recognizing faces up to 1400 feet away when fully zoomed. Its pan-tilt functionality ensures comprehensive coverage, effortlessly spanning vast areas. With a top-tier image sensor, you can be confident in seeing sharp and detailed footage, even when digitally zoomed in. Notably, this camera also boasts a staggering 500 feet of IR night vision, ensuring clear visibility even in pitch-dark conditions. Watch and control the camera remotely through a compatible AvaEye NVR, the AvaEye PC software, or our complimentary AvaEye smartphone app, ensuring your property remains under watchful eyes. It can also be moved around using an optional joystick controller.

With an impressive frame rate of 60 frames per second (fps) at 1080P resolution, this camera excels in fast-paced surveillance scenarios. Capture fluid movements in busy environments, whether it's monitoring traffic or pedestrians. The fluid frame rate ensures that every intricate detail is captured. The combination of high frame rate and resolution positions this camera as an optimal choice for tasks requiring swift and precise monitoring.

1080P Resolution

1080P HD Video

1080P security cameras stand as a benchmark in high-definition surveillance, delivering crisp and clear imagery that's a significant leap from older standard-definition systems. With a resolution of 1920x1080 pixels, these cameras capture detailed footage, ensuring that nuances like facial expressions or specific actions are readily discernible. Better digital zoom capabilities made possible by 1080P's superior clarity allow users to concentrate on specific areas of their video feed without suffering a significant loss in image quality. As a widely adopted standard in the surveillance industry, 1080P cameras strike a balance between exceptional video quality and affordability, making them a go-to choice for both homeowners and businesses aiming to enhance their security measures.
Optical Zoom

Optical Zoom

This PTZ has a powerful optical zoom lens, allowing the user to zoom in and out during live viewing. Coupled with its pan and tilt capabilities, this camera stands out as a top pick for individuals keen on thorough surveillance of their home or business. The 4.5–148.5mm motorized zoom lens provides an impressive 33X zoom power. At the widest setting, 4.5mm, the camera covers a 56.2° view, and when fully zoomed in, it narrows down to a 2.6° angle.

Beyond optical zoom, our PTZ cameras also have a digital zoom feature, great for blowing up an area for additional detail in the footage.

It's essential to recognize the difference between optical and digital zoom. Optical zoom does actual magnification by physically adjusting the lens and can only alter the viewing angle in real-time. Digital zoom expands the image in real-time or during playback of recorded footage, which will result in pixelation. You can learn more about the difference between optical zoom and digital zoom in the AvaEye security camera system guide.

Auto Tracking

Auto Tracking

Experience the cutting-edge features of some of our PTZ cameras, such as auto-tracking. This advanced feature, embedded within the camera, smartly follows people that breach the camera's AI-enabled detection rules that you set up. Depending on the AI-based event detection rules offered by the camera, they can be coupled with auto-tracking to track visible human bodies.
Starlight Video

Starlight

Starlight video technology enhances the PTZ camera's performance in low-light conditions, providing color video even in dim lighting. Utilizing advanced image processing techniques and a specialized 0.001 Lux image sensor, the camera delivers superior image quality under minimal lighting. Starlight PTZ cameras are particularly suited for poorly-lit outdoor surveillance areas such as parking lots and alleyways.
Night Vision

Night Vision

Whether it's daytime or nighttime, the camera seamlessly toggles between color and black and white modes depending on ambient lighting. Starlight video will allow the camera to stay in color mode at lower levels of light than a regular camera. The camera's infrared LEDs provide night vision up to 500 feet, ensuring clear surveillance in complete darkness with black-and-white footage.
Smart Camera with Video Analytics

Smart Camera

We understand that your security needs are unique. This smart camera features specialized video analytics for dependable human and vehicle detection with fewer false alarms: Line Crossing, Intrusion Box, Enter/Leave Area, People Counting, and Crowd Density. Plus, if you use an add-on microphone connected to the audio input, with audio detection, the camera can initiate recording and alert you when unexpected sounds occur within your set parameters.
PoE Power

Power over Ethernet Connectivity

Gone are the days of running multiple cables for pan-tilt-zoom cameras. Thanks to Power over Ethernet (PoE) technology, you can now transfer power, data, and control commands using just one Ethernet cable, reaching up to 300 feet from your NVR or PoE switch.
Many ways to view and record

Many Ways to Control and Record

You can use our free AvaEye mobile app, the AvaEye PC software, or one of our AvaEye network video recorders (NVRs) to watch and control the camera while away. Avaeye cameras offer versatile storage options. You can choose to save recordings to an AvaEye NVR, utilize the AvaEye software on your PC/Mac, or rely on an internal MicroSD card with a capacity of up to 256GB.
Weather Resistant

Weather Resistant

With an IP66 rating that protects against dust, water, and high temperatures, this PTZ camera is made for outdoor use. You can also buy different mounting options for the camera, such as a wall mount or a pole mount, for more protection and to make it easier to install.
NDAA Compliant

NDAA Compliant

Looking for NDAA-compliant cameras? The National Defense Authorization Act (NDAA) has, in recent times, set restrictions on the utilization of certain surveillance equipment brands in federal and military installations. This limitation also affects businesses and non-profits that benefit from federal grants or sign contracts with the military. Choosing this NDAA-compliant camera provides assurance, guaranteeing your purchase is compliant with these regulations.
AvaEye

AvaEye

AvaEye cameras and NVRs are designed to work really well together, making system setup easy and quick. When you use a compatible NVR, you can enjoy better video analytics and watch footage from your computer or phone. An AvaEye camera and recorder combo is a no-brainer for your home or business security needs.

Features

  • Professional High Speed Dome PTZ Camera
  • High Frame Rate 2MP Video at 60fps
  • Network Based PTZ Camera with built-in webserver
  • 33X Optical Zoom
  • Recognize faces up to 48ft of facial detail at the widest angle, and up to 1436ft at maximum zoom1
  • Up to 500ft of IR night vision2
  • See in color in low light with Starlight video technology3
  • Day & Night Switching (color vs black & white) in complete darkness
  • H.265 and H.264 video encoding
  • H.265+ provides up to 70% in bandwidth savings over H.264
  • 3 Video Streams: Main Stream, Sub Stream 1, Sub Stream 2
  • Advanced Image Features: True WDR / BLC / HLC / 3DNR
  • Auto Tracking
  • Advanced Video Analytics
    • Line Crossing
    • Intrusion Detection
    • Enter Area
    • Leave Area
    • People Counting
    • Face Detection up to 5ft from focal distance
  • Audio-in and -out for external microphone or speaker
  • Use with our 2-way audio kit for security cameras
  • Learn more about how to add a microphone to a PTZ
  • Internal MicroSD support up to 256GB (optional)
  • Records to NVR, Computer, NAS, FTP, or internal MicroSD
  • View from NVR, Web Browser, Smartphone or Tablet
  • IP66 Weather Proof4 - Safe to use outdoors or indoors in cold or hot weather
  • 12VDC or 802.3af/at compliant PoE+
  • Wall mountable, optional ceiling and pole mounts available
  • Easy PoE connectivity to send video/power over one CAT5e cable up to 300ft
  • Metal construction
  • NDAA Compliant

1. Under ideal daylight conditions
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Camera has a 0.001 Lux rating in color mode. Camera switches to black and white mode in complete darkness.
4. Not intended for submersion in water.

What's included?

  • (1) Outdoor 1080P High Speed Dome Camera with 33X Zoom Lens, Deep Learning AI, Light Hunter Night Vision
  • (1) Wall Mount

Specifications

Camera
Image Sensor 1/2.8" 2MP Progressive Scan CMOS
Effective Pixels 1920 (H) x 1080 (V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/1- 1/100000s
Min. Illumination 0.001 Lux F1.5 (Color), 0 Lux IR On
S/N Ratio More than 52dB
IR Distance Up to 500ft
IR On/Off Control Auto, Manual
Wiper None
Lens
Lens Type Motorized Zoom with Auto Focus
Focal Length 4.5 – 148.5mm (33X Optical Zoom)
Max Aperture F1.5 - F4.0
Angle of View Horizontal: 56.2° – 2.6° Vertical: 33.5° – 1.4°
Digital Zoom Supported
DORI Distance*
Lens Detect Observe Recognize Identify
4.5mm 239 ft 96 ft 48 ft 24 ft
148.5mm 7178 ft 2871 ft 1436 ft 718 ft
Video
Video Interface IP - Network Based Camera
Compression H.265, H.264
Streams Main Stream, Sub Stream 1, Sub Stream 2
Resolution 1080P (1920x1080), D1 (720x576)
Frame Rate

Main Stream: 2MP (1-60fps)
Sub Stream 1: 2MP (1-60fps)
Sub Stream 2: D1 (1-60fps)

Bit Rate 128 Kbps - 16 Mbps
Day/Night Auto (ICR), Color, B/W
Backlight Compensation BLC, HLC, WDR
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Noise Reduction DNR (2D/3D)
Motion Detection Yes, stream compatible w/ specific NVR or Software
Region of Interest Yes
Electronic Image Stabilization Yes
Defog Yes
Image Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
Privacy Masking 24 areas, up to 4 per scene
Video Analytics
Auto Tracking Yes
Video Analytics Audio Detection, Motion Detection, Line Crossing, Intrusion Detection, Enter Area, Leave Area, People Counting, Face Detection
Audio
Compression G.711U, G.711A
Audio Interface 1 Channel-In/Out (2 lead wire)
Audio Bitrate 64 Kbps
Two-way Audio Supported
Sampling 8 kHz
PTZ
Pan/Tilt Range Pan: 0° – 360° endless; Tilt: -15° – 90° (auto flip)
Manual Control Speed Pan: 0.1° – 200° /s; Tilt: 0.1° – 200° /s
Preset Speed Pan: 300° /s; Tilt: 240° /s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s - 1800s
Power up Action Auto restore to previous zoom and position after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command for a while
Protocol PelcoD, Avalonix, or ONVIF
Network
Ethernet RJ-45 (100Mbps)
Protocol IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS
Compatibility ONVIF (Profile S, Profile G, Profile T)
Max. User Access 3 Online Users (Up to 32 Accounts, 3 User Level Accounts Allowed)
Recording Methods NVR, NAS, FTP, Local PC, MicroSD
Smart Phone iOS, Android
Web Viewing IE,** Edge, Chrome, Safari, Firefox
Other Connections
Memory Slot MicroSD, Max 256GB (factory installed option)
BNC Yes, CVBS output for testing
RS485 Yes
Power Two-lead wire interface
Alarm 2/1 channel In/Out
General
Power 24VDC/24VAC or 60W PoE Injector Required (Sold Separately)
Power Consumption 41W Max (IR LEDs on and PTZ moving)
Operating Temperature -22°F to +140°F, Less than 95% Relative Humidity
Weather Resistance Yes IP66
Vandal Resistance No
Dimensions 15.1" x 8.9" (height x diameter)
Construction Metal, Plastic
Weight 11.9 lbs
Certifications FCC

*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identify means positive ID of a face, recognize means ability to tell the likeness of an individual.
**IE or Microsoft Edge with IE Mode, provides access to full feature set of the web interface with Plugin installation. Chrome, Firefox, and Edge provide limited functionality of web interface. For full functionality consider using the AvaEye CMS software.

More Information
Warranty1 Year
BrandAvaEye
Return Policy30 Days Return Policy
