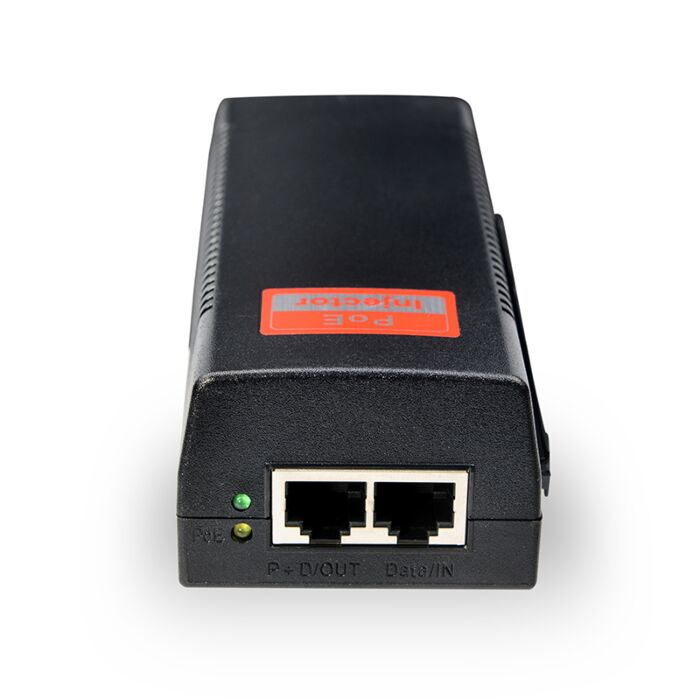

PoE Injector 30W
$25.99
In stock
SKU
1POEU
- 30W PoE Injector - Adds PoE power to one compatible IP camera, access point, VoIP phone, or network device.
- Single Device Power - Practical when one PoE device needs power but the router or network switch does not provide PoE.
- 802.3Af/At Support - Compliant with standard PoE and PoE+ devices that accept 802.3af or 802.3at input.
- 10/100Mbps Data - Supports 10/100Mbps network connections for compatible devices.
- Camera Installation Use - Connect the powered device to the PoE side and connect the data side back to a router, switch, or recorder network.
- Distance Note - Intended for standard Ethernet cable runs up to 300ft when installed with proper cable and compatible equipment.
This small device allows injection of power to IP based devices that accept PoE power input, such as VOIP phones, access points, and IP security cameras. It is great for situations where only one device needs to be powered. This PoE injector is 802.3af/at compliant which is a must for IP cameras and is able to supply up to 30W on demand which is a must for IP PTZ Cameras.
If you're wondering how to use this PoE injector with one of our PoE cameras, be sure to watch the simple video tutorial below.
If your project requires multiple devices to be powered over IP, we suggest purchasing using one of the following:
- 60W PoE+ injector and PoE extender to power up to 2 cameras
- PoE switch ranging in output from 4 cameras up to 24 cameras
Features
- 1 Port PoE Injector
- 30W PoE+ power output
- 1 10/100 Mbps network port for linking to network
- Comes with AC power cord
- Built-in AC/DC power converter
- IEEE802.3x Flow control
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af/at
- Surge protection for data ports
- EMI standards complies with FCC, CE class B
What's Included?
- (1) PoE Power Injector for single device
- (1) Power Cord
Specifications
| Ports | 2 10/100 Base-TX ports |
| LED Indicators | PWR, PoE, Link/Act VLAN LED |
| Input voltage | 100V~240V AC, 50/60Hz |
| Power consumption | 30W |
| Operating temperature | 0°C~40°C |
| Storage temperature | -10°C~70°C |
| Relative humidity | 20%~85% (non-condensing) |
| PoE port | 1 10/100Base-TX ports |
| PoE Standard | PoE+, IEE802.3af/at |
| Pin assignment | V+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8) |
| Dimensions | 7" x 2.8" x 1.4" |
| Brand | Avalonix |
|---|---|
| Warranty | None for accessories |
| Return Policy | Accessories are non-returnable, non-refundable. |
