4MP Mini PoE PTZ Security Camera - Avalonix compact outdoor PTZ camera for lit areas where pan, tilt, and zoom control are more useful than a fixed camera view.
Pan, Tilt, and 4x Optical Zoom - Remotely aim the camera and zoom from a 112.5 degree wide view to a tighter 30 degree view using the 2.8-12mm motorized lens.
2K Video Detail - The 4MP sensor records clear 2K video at up to 30fps for entrances, loading areas, storefronts, building exteriors, and interior spaces.
Preset and Tour Control - Supports presets, tours, patterns, and auto-scan functions for faster repositioning during live viewing.
Lit Area PTZ Coverage - This model does not include built-in IR night vision, so it is best used where daytime or installed lighting is available.
Smart Detection Options - Supports detection features such as tripwire, intrusion, loitering, abandoned or missing object detection, face detection, and human or vehicle alarm classification, with one analytic used at a time.
Recording and Remote Viewing - Record to a compatible NVR, NAS, FTP, local PC, or microSD card up to 256GB, and view from supported mobile apps or browser software.
ONVIF S/G/T Support - Supports ONVIF S/G/T for use with compatible third-party NVRs or video software.
Outdoor PTZ Camera Features - Includes H.265/H.264 video, PoE or 12V DC power, IP66 weather protection, IK10 impact resistance, and wall or ceiling mounting.
128GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
256GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
30W PoE Injector - Adds PoE power to one compatible IP camera, access point, VoIP phone, or network device.
Single Device Power - Practical when one PoE device needs power but the router or network switch does not provide PoE.
802.3Af/At Support - Compliant with standard PoE and PoE+ devices that accept 802.3af or 802.3at input.
10/100Mbps Data - Supports 10/100Mbps network connections for compatible devices.
Camera Installation Use - Connect the powered device to the PoE side and connect the data side back to a router, switch, or recorder network.
Distance Note - Intended for standard Ethernet cable runs up to 300ft when installed with proper cable and compatible equipment.
6ft Cat5E Patch Cable - Pre-made network cable for short indoor network connections, IP cameras, PoE camera systems, and other RJ45 devices.
RJ45 Ends Installed - Factory-terminated connectors save time compared with cutting and crimping your own cable.
Booted Connectors - Booted RJ45 tips help protect the connector latch from accidental damage or disconnection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for clean indoor wiring paths, racks, cabinets, and short patch runs.
Protected Use - Best used indoors or inside conduit where the cable is protected from water.
25ft Cat5E Patch Cable - Pre-made network cable for IP cameras, IP systems, and general RJ45 network connections.
RJ45 Ends Installed - Ready-to-use cable avoids the need to crimp connectors in the field.
Booted Connectors - Connector boots help protect the latch and support a more secure connection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable works well for clean indoor cable routing and short network runs.
Protected Use - Intended for indoor use or conduit-protected runs where the cable is not exposed to water.
50ft Cat5E Network Cable - Pre-made cable for IP cameras, camera systems, and general RJ45 network connections.
RJ45 Tips Installed - Comes with RJ45 connectors already attached, reducing field crimping work.
Booted Connectors - Booted ends help prevent accidental disconnection and protect the connector tab.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for indoor installations, equipment rooms, and protected network runs.
Protected Use - Use indoors or in conduit where the cable is protected from water.
100ft Cat5E Patch Cable - Pre-made white network cable for IP camera, NVR, and general network connections.
Booted RJ45 Connectors - Factory-installed RJ45 ends help avoid field crimping and reduce accidental unplugging.
Indoor Or Protected Runs - Good for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy patch cable for standard network and camera system wiring needs.
150ft Cat5E Patch Cable - Pre-made white network cable for IP cameras, NVRs, and general network connections.
Factory RJ45 Ends - RJ45 connectors are already installed, which saves time compared with crimping ends in the field.
Booted Connector Design - Booted RJ45 ends help protect the latch and reduce accidental unplugging.
Indoor Or Protected Runs - Suitable for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy cable option for standard camera system and network wiring.
150ft Solid Copper Cat5E Cable - Pre-made white network cable for longer IP camera, NVR, and network patch runs.
350Mhz Rated Wire - Solid bare copper CAT5e construction supports reliable data and video signal quality.
Booted RJ45 Connectors - Factory-installed RJ45 ends reduce field crimping work and help prevent accidental disconnects.
Gigabit Ready When Supported - Can be used in Gigabit network applications with compatible network cards and switches.
Indoor Or Protected Installs - Best for indoor use or conduit runs where the cable is protected from water.
Includes One Cable - Includes one 150ft CAT5e cable with RJ45 connectors already attached.
Wall Mount Arm Bracket - For installing compatible turret and dome cameras on walls where ceiling mounting is not practical.
Clean Camera Installation - Arm style design positions the camera away from the wall and gives room to conceal pigtail connectors.
White Aluminum Construction - Solid aluminum body with a white finish to match many camera housings.
Outdoor Or Indoor Use - Suitable for exterior walls, garage walls, fence posts, columns, and similar mounting surfaces.
Compatibility Note - Intended for select compatible camera models. Check the camera page before ordering.
4.8 Inch Dome Camera Junction Box - White aluminum junction box for select dome camera models with matching mounting holes.
Cable Protection - Helps conceal and protect the camera pigtail from outdoor exposure and tampering when installed correctly.
Conduit Ready - G1/2 inch conduit thread size for installations where conduit needs to enter the junction box.
Mounting Options - Can mount directly to a wall or be used with a compatible mini pole mount bracket when supported by the installation.
Size And Load Rating - Measures 4.80 x 1.35 inches and supports up to 2.2 lb according to the product specs.
Compatibility Note - Review the camera description before ordering, since this is not a universal dome camera junction box.
Compatible set · All 2 products below are added together.
Pole Mount Bracket Mini
Pole Mount Bracket Mini
SKU: JB152
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
Wall Mount Arm Bracket - For installing compatible turret and dome cameras on walls where ceiling mounting is not practical.
Clean Camera Installation - Arm style design positions the camera away from the wall and gives room to conceal pigtail connectors.
White Aluminum Construction - Solid aluminum body with a white finish to match many camera housings.
Outdoor Or Indoor Use - Suitable for exterior walls, garage walls, fence posts, columns, and similar mounting surfaces.
Compatibility Note - Intended for select compatible camera models. Check the camera page before ordering.
Recessed Ceiling Mount - In-ceiling mount for select dome cameras where only the lower dome section should remain visible below the ceiling tile.
3.34 Inch Clearance - Short description lists 3.34 inch diameter clearance for compatible dome camera fitment.
Plastic Body - White plastic recessed mount for indoor ceiling tile style installations.
G3/4 Thread Size - G3/4 pipe thread size for compatible mounting setups.
Load Rating - Supports up to 2.2 lb according to the listed specifications.
Size Details - Mount dimensions are 6.54 x 2.98 inches, diameter x height.
Compatibility Note - Check the camera product description before ordering because this recessed mount only fits select dome cameras.

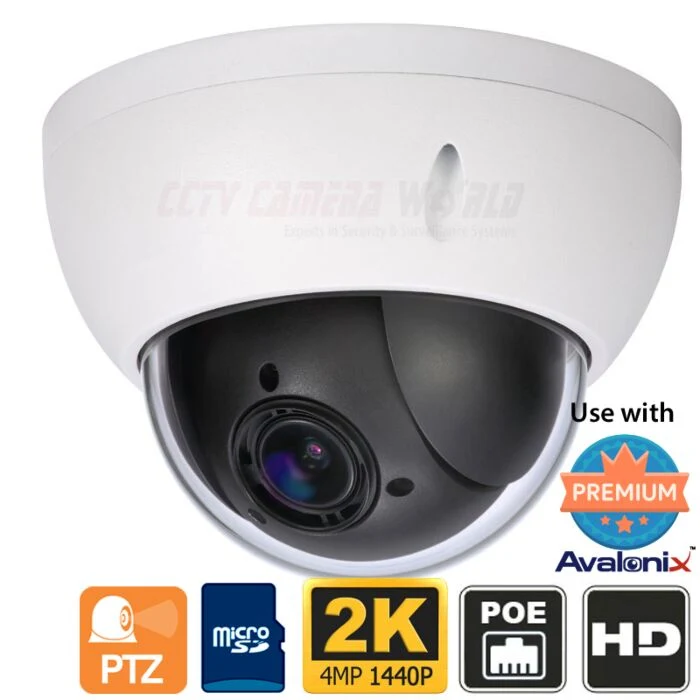

2K 4MP Mini PTZ camera for flexible daytime security coverage
The IPSDM4MP is a compact outdoor PTZ security camera designed for situations where fixed cameras are too limiting. Using a 4MP image sensor, it delivers crisp 2K video and gives operators the ability to pan, tilt, and zoom in real time to follow activity or investigate areas of interest.
This camera is best suited for daytime security monitoring where lighting is available and a single PTZ camera needs to cover multiple zones. Common uses include entrances, parking areas, loading zones, building exteriors, and interior spaces where active monitoring is preferred over static views.
2K clarity: 4MP resolution at up to 30fps for smooth motion
True PTZ control: remotely pan, tilt, and zoom with presets, tours, and patterns
4X motorized optical zoom: 2.8–12mm lens for wide overview or tighter detail
Efficient compression: H.265 or H.264 selectable
Power options: PoE (802.3af) or 12V DC
Flexible recording: microSD up to 256GB (card not included) or use with an
NVR
When connected to an Avalonix Premium Series NVR, the camera can be powered and brought online over a single PoE cable for plug-and-play operation in most installations.
Daytime PTZ video sample (wide angle vs zoom)
Daytime PTZ Video Sample: The video below shows real-world daytime footage from the IPSDM4MP, demonstrating image clarity at both the widest field of view and when zoomed in. The footage highlights how the motorized zoom performs during live pan, tilt, and zoom operation, and what usable facial detail looks like at practical distances.
Facial detail (day, approximate): 112.5 degree view, up to 50 ft
Facial detail (day, approximate): about 30 degree view, up to 90 ft
Zoom performance and usable image detail
Optical zoom allows operators to maintain situational awareness with a wide view, then zoom in when attention is needed. Image enhancement features such as WDR help maintain usable video in challenging lighting conditions like bright sun, shadows, or backlit entrances.
Smart detection analytics (on-camera)
The IPSDM4MP includes multiple on-camera video analytics designed to detect specific behaviors and reduce false alerts compared to basic motion detection.
Tripwire detection
Intrusion detection
Loitering detection
Abandoned or missing object detection
Fast moving object detection
Parking detection
People gathering detection
Face detection
Human and vehicle alarm classification
Smart Motion Detection
Important note: Only one analytics function can be enabled at a time, allowing the camera to dedicate processing resources to the selected detection type.
PTZ control, presets, and remote viewing
Presets, tours, and patterns can be configured directly on the camera or through a compatible NVR, enabling fast repositioning during live monitoring. Like our other
IP cameras and
IP security camera systems, the IPSDM4MP supports remote viewing from Windows or Mac computers using its built-in web interface, as well as iOS and Android mobile apps. No browser plugins are required on modern browsers.
Outdoor-ready construction
The camera is rated IP66 weatherproof for outdoor use and is also suitable for indoor environments such as warehouses, offices, retail spaces, and lobbies. Its IK10-rated housing provides resistance against impact and vandalism.
Planning note: This model does not include built-in IR night vision. For nighttime monitoring, provide adequate ambient lighting or choose a PTZ model designed specifically for low-light or IR-based operation.
Why choose this Mini PTZ camera?
The IPSDM4MP is a strong choice when you need a compact PTZ camera for daytime security monitoring with flexible coverage and manual operator control. It works well in environments where lighting is present and a single PTZ camera can replace multiple fixed views.
If your application requires built-in night vision, simultaneous analytics, or fully automated tracking, a different PTZ model may be a better fit. To compare this model with other options, see our full selection of
PTZ security cameras.
*Distance is calculated based on sensor specifications and lab test results set at full optical zoom according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.
**Plugin-free live viewing is available in Edge, Chrome, and Firefox browsers on PC or Mac. HTML5 browsers limit features such as playback, video download, and two-way talk. Installing the Windows plugin enables access to all camera features.
Yes. Our professional Avalonix IP cameras support audio detection, and this setting can be managed through the camera’s built-in web interface.
To access these options, the user would open a web browser such as Chrome or Firefox on a Mac or PC that is connected to the same local network as the camera. After logging into the camera through the browser, they can go into the settings menu and turn audio detection on or off as needed.
In simple terms, audio detection lets the camera listen for sound changes in the area and respond when noise reaches a level you set. Through the web interface, the user can enable the feature, adjust how sensitive it is, set the threshold for what should count as an audio event, and choose what the camera should do when sound is detected. For example, the camera can be set to trigger recording or capture a snapshot when an audio event occurs.
Answer by: CCTV Camera World on Mar 13, 2026, 11:12 AM
