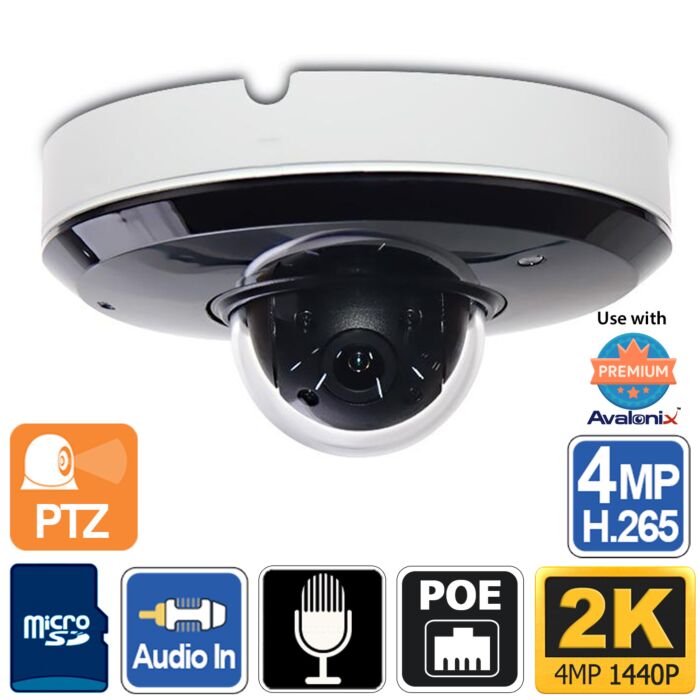

2K Mini PTZ PoE, Night Vision, Audio, Outdoor

Rating:
97% of 100
Special Price $319.99 Regular Price $439.99
In stock
SKU
IPSDIR3X4M
No microSD Card
128GB microSD Card
256GB microSD Card
No Power Supply
1 Camera PoE Power Injector
6ft CAT5e
25ft CAT5e
50ft CAT5e
100ft CAT5e
100ft CAT5e Full Copper
150ft CAT5e
  • 4MP
  • Low profile
  • H.265, H.264
  • 4X Optical Zoom, 16X Digital
  • Up to 50ft Night vision
  • Video Analytics
  • Starlight Technology
  • Built-in Mic, audio in/out
  • IP66 Weather Proof
  • Ceiling mount
  • 12V DC or PoE+

This security camera is a low profile Pan Tilt Zoom Camera (PTZ Camera) that combines several sought after features that are usually only found in larger size cameras up until now. This PoE PTZ camera is great for low-profile surveillance in a medical or dental office, corporate office, retail store, warehouse, or home. These features include:

  • The freedom to pan tilt the camera so you can move the camera in a 360 degree environment
  • 4X optical zoom
  • HD 4MP image sensor that produces clear 2K video
  • Infrared night vision
  • Built-in microphone to listen in
  • Audio-out RCA connector to add an optional speaker using a 2 way audio kit for security cameras
  • PoE functionality 802.3af/at compliant

Wondering how this camera performs? Please watch the video below in which we show video recorded from this 2K Mini PTZ camera. The camera is mounted outside our office at about 15ft high. We show how you can use the camera to zoom in on license plates of parked vehicles during the day and survey a parking lot.

Below is a video demo of this camera in our office to provide you a better idea of what to expect from a 4x Zoom PTZ camera.

This 2K PTZ Security Camera is a PoE camera that uses one ethernet cable to send video, data and power over one cable. PoE cameras make it easy to setup a security camera system by simplifying the cabling process, and when you use one of our PoE NVRs, system setup is plug and play as shown in our guide on how to setup a security camera system.

This mini PTZ camera has a built-in motor for panning up to 355° and tilting up to 90°. The 4X motorized zoom lens allows the user to control how far the camera can see in live-view mode. The 4X optical zoom allows facial identification up to 90ft away when fully zoomed in. All of these functions are usable using free remote viewing apps for smartphones and can be remotely controlled using our Free PC/Mac software or while in front of the NVR.

Starlight technology allows this camera to see in color in very low light

Its 4MP sensor is complimented by Starlight Technology enabling the camera to see color in low-light situations. For night vision the camera has 3 IR LEDs that illuminate up to 50ft in complete darkness.

With a built-in microphone this small PTZ camera is able to capture conversations up to 30ft away in a quiet environment. For short video clips or on-board storage the camera has a micro SD card slot to which video can be recorded.

Since we specialize in professional security cameras, this camera is part of smart security cameras with AI that include video analytics such as Tripwire, Intrusion, Abandoned/Missing Object Detection, People Counting, and human/vehicular specific motion detection. Video analytics captured by our cameras are transmitted to our NVRs; when paired together with this camera an advanced security camera system with video analytics is within reach at an affordable cost.

Features

What's included?

  • (1) 2K Mini PTZ with Night Vision, 4X Optical Zoom

Optional mounts

Specifications

Image Sensor 1/2.8" 4MP Sony Starvis CMOS
Effective Pixels 2560 (H) x 1440 (V)
Electronic Shutter Speed Auto/Manual, 1/1- 1/30000s
Minimum Illumination 0.005 Lux F1.8 (Color), 0.0005 Lux F1.8(B/W), 0 Lux IR On
S/N Ratio More than 50dB
IR Distance Up to 50ft
IR On/Off Control Auto, Manual
IR LEDs 3 IR LED
Lens Type Motorized Zoom
Focal Length 2.8mm - 12mm
Max Aperture F1.8 – F2.7
Angle of View Horizontal: 96.9° – 31.6°; Vertical: 51.4° - 17.8°
Close Focus Distance 7.9 inches at Wide View, 19.7 inches at Tele View
Focus Control Auto, Manual
Max Distances* at 4X Zoom
Detect Recognize Identify
482ft 180ft 90ft
Compression H.265+, H.265, H.264+, H.264
Pan Tilt Range Pan: 0° - 355°, Tilt: 5° - 90°
Manual Control Speed Pan: 0.1° - 70° /s; Tilt: 0.1° - 30° /s
Preset Speed Pan: 80° /s; Tilt: 40° /s
Presets 300, 8 Tours
Power Up State Auto restore to previous PTZ and lens status after power failure
Idle State Continue Preset/Tour if there is no command in the specified period
Auto Tracking No
Video Analytics Tripwire, Intrusion, Abandoned and Missing Object Detection, People Counting, Face Detection, Human Body and Vehicle Specific Motion Detection
Streaming Capability 3 Streams (Main Stream, Sub Stream 1, Sub Stream 2)
Resolution 4MP (2560 x 1440), 1080P (1920x1080), 720P (1280x720), D1 (704x480), VGA (640x480), CIF (342x240)
Frame Rate Main Stream: 4MP / 1080P / 720P (1-30fps), Sub Stream 1: D1 / CIF (1-30fps), Sub Stream 2: 720P / D1 / CIF (1-30fps)
Bit Rate Control CBR, VBR
Bit Rate H.265 or H264: 3Kbps - 20480 Kbps
Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, WDR 120db
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Smart IR Yes
Digital Zoom 16X
Defog Yes, electronic
Flip 180°
Mirror Off / On
Privacy Masking Off / On (24 Area, Rectangle)
Audio Input Built-in Mic, Audio Line-In and Out
Audio Compression G.711a/G.711Mu/G.726/AAC/MPEG2-Layer2/G.722.1/G.729/G.723
Alarm

None

Ethernet RJ-45 100Mbps
Protocols HTTP, HTTPs, TCP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Interoperability ONVIF Profile S, G, T
Streaming Method Unicast / Multicast
Max. User Access 20 Users
Recording Method NVR, NAS, Local PC, Optional MicroSD card 256GB
Web Viewer Chrome, Firefox, Safari, IE** (learn more)
Smart Phone iOS or Android
Power Supply 12V 2A DC or PoE (802.3af)
Power Consumption 3W (IR off), 8.5W (IR on)
Operating Conditions -22°F – +140°F, Less than 95% RH
Weather Protection IP66
Vandal Resistance IK08
Casing Metal
Dimensions 5.1" x 2.6"(diameter x height)
Net Weight 1.1 lbs
Certifications CE, FCC

*Distance is calculated based on sensor specifications and lab test results set at full optical zoom. Identification means positive ID of a face. Recognize means ability to tell the likeness of an individual already known. Detect means ability to detect an intruder at a distance without identification.

**Internet Explorer required with admin rights for access to all features in web interface of camera.

More Information
Lens2.7mm - 8.1mm
Wide Dynamic Range (WDR)WDR
Pan Tilt ZoomYes
Dimensions5.1" x 2.5"(diameter x height)
Operating Temperature-22°F to +140°F
Video EncodingH.265+, H.265, H.264+, H.264
Image Sensor1/2.8" 2MP SONY Starvis CMOS
Weather ProofYes, IP66
Warranty1 Year
Camera Resolution1080P
Signal TypeIP
Camera ColorBlack
Night Vision50ft
Power Input12V DC / PoE+
Angle of View105° - 35°
Optical ZoomMotorized Zoom
SD Card SlotYes
MicrophoneAudio Line-in & Built-in Mic
Video AnalyticsTripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
Return Policy30 Days Return Policy
BrandAvalonix
