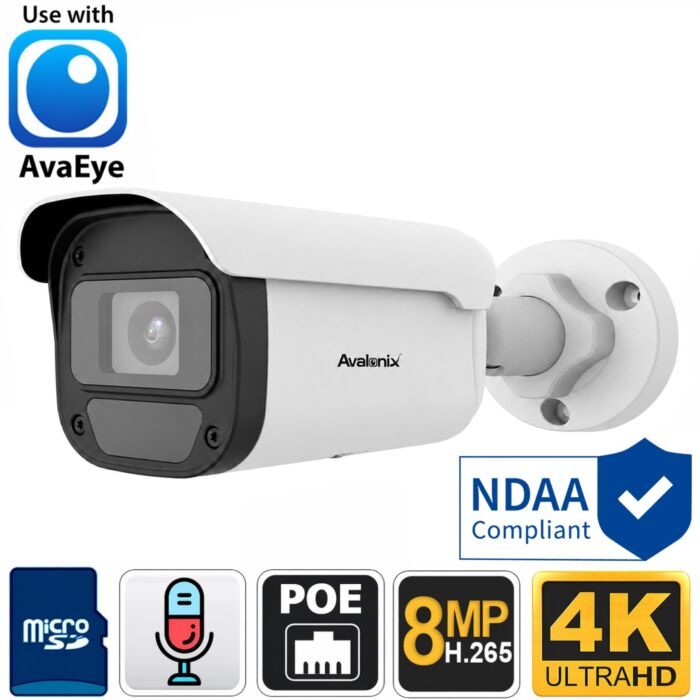

4K PoE Bullet Security Camera - AvaEye AECOB4K outdoor bullet camera with 8MP 4K video, PoE power, built-in microphone, human-body event filtering, and MicroSD recording.
Wide 107 Degree View - The fixed 2.8mm lens provides a 107 degree horizontal field of view for entrances, driveways, storefronts, building exteriors, warehouses, and other broad coverage areas.
Up to 98.4ft IR Night Vision - Smart IR provides black-and-white nighttime video with infrared illumination rated up to 98.4ft.
Human-Filtered Event Detection - Cross-line and intrusion rules can use human-body detection to make those events more selective than basic motion detection alone.
Built-In Microphone - Records audio with video and supports audio detection. This model does not have a built-in speaker or two-way audio.
Standalone or NVR Recording - Record to a compatible AvaEye NVR, NAS, or MicroSD card up to 256GB for flexible local or centralized video storage.
ONVIF S/G/T Support - Supports ONVIF Profiles S, G, and T for use with compatible third-party NVRs and video software.
Plug-In-Free Browser Viewing - Supports live viewing in compatible Chrome, Firefox, and Microsoft Edge browsers without relying on an old browser plug-in.
Outdoor NDAA Compliant Build - IP67 weather protection, 12VDC or PoE power, wired Ethernet, no built-in Wi-Fi, and NDAA compliant status support professional installations.
Choose quantities for each item. Set a quantity to 0 to remove it.
Optional Mounts
Junction Box for Fixed Lens Bullet Cameras, AvaEye
Junction Box for Fixed Lens Bullet Cameras, AvaEye
SKU: MB05A
Fixed Lens Bullet Camera Junction Box - Designed for select AvaEye fixed lens bullet camera models.
Weather Resistant Aluminum Body - Helps protect the camera pigtail and cable connections in outdoor camera installations.
Pre-Drilled Mounting Holes - Made for compatible AvaEye bullet cameras to simplify alignment during installation.
Flexible Mounting - Can be used on a wall, flat surface, or compatible pole mounting setup when the installation supports it.
Compatibility Note - Verify the camera product page before ordering, especially if the camera was not purchased from CCTV Camera World.
Avaeye Pole Mount - White pole mount for select AvaEye bullet cameras when a wall or ceiling mount is not the right fit.
Bullet Camera Compatibility - Designed for specific AvaEye bullet camera and junction box combinations. Check the camera page before ordering.
Aluminum Construction - Weather resistant aluminum build for outdoor camera mounting locations.
Junction Box Connection - Made to pair with compatible AvaEye junction boxes so camera wiring can be routed through a cleaner mounting setup.
Field Adjustable Fit - Pre-drilled holes fit select models. New holes may be drilled with a metal bit if needed, but modified equipment is not returnable.
128GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
256GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
30W PoE Injector - Adds PoE power to one compatible IP camera, access point, VoIP phone, or network device.
Single Device Power - Practical when one PoE device needs power but the router or network switch does not provide PoE.
802.3Af/At Support - Compliant with standard PoE and PoE+ devices that accept 802.3af or 802.3at input.
10/100Mbps Data - Supports 10/100Mbps network connections for compatible devices.
Camera Installation Use - Connect the powered device to the PoE side and connect the data side back to a router, switch, or recorder network.
Distance Note - Intended for standard Ethernet cable runs up to 300ft when installed with proper cable and compatible equipment.
6ft Cat5E Patch Cable - Pre-made network cable for short indoor network connections, IP cameras, PoE camera systems, and other RJ45 devices.
RJ45 Ends Installed - Factory-terminated connectors save time compared with cutting and crimping your own cable.
Booted Connectors - Booted RJ45 tips help protect the connector latch from accidental damage or disconnection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for clean indoor wiring paths, racks, cabinets, and short patch runs.
Protected Use - Best used indoors or inside conduit where the cable is protected from water.
25ft Cat5E Patch Cable - Pre-made network cable for IP cameras, IP systems, and general RJ45 network connections.
RJ45 Ends Installed - Ready-to-use cable avoids the need to crimp connectors in the field.
Booted Connectors - Connector boots help protect the latch and support a more secure connection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable works well for clean indoor cable routing and short network runs.
Protected Use - Intended for indoor use or conduit-protected runs where the cable is not exposed to water.
50ft Cat5E Network Cable - Pre-made cable for IP cameras, camera systems, and general RJ45 network connections.
RJ45 Tips Installed - Comes with RJ45 connectors already attached, reducing field crimping work.
Booted Connectors - Booted ends help prevent accidental disconnection and protect the connector tab.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for indoor installations, equipment rooms, and protected network runs.
Protected Use - Use indoors or in conduit where the cable is protected from water.
100ft Cat5E Patch Cable - Pre-made white network cable for IP camera, NVR, and general network connections.
Booted RJ45 Connectors - Factory-installed RJ45 ends help avoid field crimping and reduce accidental unplugging.
Indoor Or Protected Runs - Good for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy patch cable for standard network and camera system wiring needs.
150ft Cat5E Patch Cable - Pre-made white network cable for IP cameras, NVRs, and general network connections.
Factory RJ45 Ends - RJ45 connectors are already installed, which saves time compared with crimping ends in the field.
Booted Connector Design - Booted RJ45 ends help protect the latch and reduce accidental unplugging.
Indoor Or Protected Runs - Suitable for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy cable option for standard camera system and network wiring.
150ft Solid Copper Cat5E Cable - Pre-made white network cable for longer IP camera, NVR, and network patch runs.
350Mhz Rated Wire - Solid bare copper CAT5e construction supports reliable data and video signal quality.
Booted RJ45 Connectors - Factory-installed RJ45 ends reduce field crimping work and help prevent accidental disconnects.
Gigabit Ready When Supported - Can be used in Gigabit network applications with compatible network cards and switches.
Indoor Or Protected Installs - Best for indoor use or conduit runs where the cable is protected from water.
Includes One Cable - Includes one 150ft CAT5e cable with RJ45 connectors already attached.
AvaEye SeriesUse with AvaEye PoE cameras and NVRsMatched recorders, cameras and mounts from the same series set up together on one app.Browse AvaEye
The AvaEye AECOB4K is an 8MP 4K security camera in a compact bullet housing with a wide 2.8mm lens, built-in microphone, human-body filtering for supported event rules, 98.4ft infrared night vision, and MicroSD recording up to 256GB. Its 107° horizontal field of view is designed for broad coverage rather than long-distance magnification, making it practical for entrances, driveways, storefronts, warehouses, garages, loading areas, and building exteriors.
This is a wired PoE security camera. When connected to a compatible PoE NVR, PoE switch, or injector, one Ethernet cable can carry both network data and power. The AECOB4K can also be powered from 12V DC when PoE is not being used. It does not contain built-in Wi-Fi.
Key Features of the AvaEye AECOB4K
8MP 4K Video: Records 3840 x 2160 video at up to 15fps for detailed wide-area coverage.
Wide 107° View: The fixed 2.8mm F1.6 lens covers a broad scene from one camera position.
Human-Body Event Filtering: Cross-line and intrusion detection can use human-body detection for more selective event rules.
Built-In Microphone: Records audio and supports audio detection without requiring an external microphone.
98.4ft Smart IR: Built-in 850nm infrared illumination provides black-and-white night video in dark scenes.
120dB WDR: Helps balance scenes containing bright and dark areas at the same time.
256GB MicroSD Support: Provides an option for standalone edge recording or supplemental storage.
Plug-In-Free Browser Viewing: Compatible browser versions can display live video without an old-style browser plug-in.
ONVIF Profiles S/G/T: Supports integration with many compatible third-party NVRs and video platforms.
NDAA Compliant: Part of the AvaEye NDAA compliant product series for professional residential, commercial, and institutional installations.
IP67 Outdoor Housing: Designed for indoor or outdoor installation in temperatures from -22°F to 140°F.
8MP 4K Video with Flexible Frame Rates
The AECOB4K uses a 1/2.7" CMOS image sensor and can record 3840 x 2160 8MP video at up to 15 frames per second. Full 4K resolution is useful when image detail and a wide overview are more important than having the highest possible frame rate.
The camera can also operate at lower resolutions when smoother motion is preferred. Supported modes include 5MP and 4MP at up to 25/20fps, while 3MP and 1080P can reach up to 30/25fps. This gives you flexibility when balancing resolution, motion smoothness, bandwidth, and storage consumption.
The AECOB4K supports H.265, H.264, and MJPEG video compression.
107 Degree Wide-Angle Coverage
The fixed 2.8mm F1.6 lens provides a 107° horizontal, 59.7° vertical, and 111.5° diagonal field of view. That makes the AECOB4K particularly useful when you want one camera to see a large portion of a driveway, entrance, loading area, retail exterior, garage, warehouse, or similar scene.
A wide lens does not provide the same long-distance detail as a motorized zoom or telephoto camera. Using DORI as a planning reference, the 2.8mm lens provides approximately 206.7ft detection, 82.7ft observation, 41.3ft recognition, and 20.7ft identification distances.
In practical terms, the camera can show that activity is occurring much farther away than the distance at which you should expect strong identifying detail. Mounting height, camera angle, available lighting, movement, target size, weather, and other scene conditions affect the actual detail recorded.
If the primary goal is identifying a person or object at a longer distance, consider a motorized zoom security camera instead.
Human-Body Detection for Cross-Line and Intrusion Rules
The AECOB4K supports ordinary motion detection along with more selective cross-line and intrusion rules. For cross-line and intrusion events, the camera can use human-body detection so the rule is focused on a person rather than responding solely to changes in image pixels.
A cross-line rule can be useful when you want to know when a person moves across a selected boundary, such as an entrance path, doorway, or restricted side of a building. Intrusion detection can watch a defined area and generate an event when a human target enters the selected zone.
Motion Detection: Conventional video motion detection for selected portions of the image.
Cross-Line Detection: Can use human-body detection when watching a selected virtual boundary.
Intrusion Detection: Can use human-body detection inside a defined area.
Tampering Alarm: Can generate an event when the camera view is interfered with.
Audio Detection: Uses the built-in microphone for supported sound-related event detection.
Built-In Microphone for Video with Audio
The AECOB4K has a built-in microphone, so supported recordings can include sound without installing a separate external microphone. This makes it useful for entrances, customer counters, warehouses, loading areas, offices, and other locations where recorded audio can provide additional context.
The microphone also allows the camera to use supported audio-detection functions. The AECOB4K does not have a built-in speaker and does not provide two-way audio. If live talk-back is required, choose a camera specifically equipped with both a microphone and speaker.
Browse additional IP cameras with audio when comparing different audio capabilities.
98.4ft Smart IR Night Vision
The AECOB4K includes 850nm Smart IR illumination rated up to 98.4ft. When available light becomes too low for normal color video, the camera can switch into infrared-assisted black-and-white viewing so the scene remains visible in darkness.
Smart IR helps manage infrared output so a person or object moving closer to the camera is less likely to become excessively bright. The quoted 98.4ft figure describes the rated reach of the infrared illumination and should not be confused with an identification distance.
Image-processing features include 120dB WDR, 2D/3D digital noise reduction, HLC, BLC, and digital defog. WDR is particularly useful at entrances and other scenes where bright daylight and shaded areas can appear in the same image.
Record to MicroSD, NVR, or Network Storage
The AECOB4K can record locally to a MicroSD card up to 256GB, allowing the camera to operate as a standalone recording device in supported applications. It also supports ANR and NAS storage using NFS.
The AECOB4K supports ONVIF Profiles S, G, and T along with API and SDK integration. ONVIF allows the camera to provide video and supported functions to many compatible third-party NVRs and video platforms.
Third-party compatibility varies by recorder and software. Basic video and recording compatibility does not guarantee that every camera-side event, audio feature, or configuration option will be available through a third-party interface. A compatible AvaEye NVR provides the most predictable integration with AvaEye cameras.
Plug-In-Free Browser Viewing
The AECOB4K supports plug-in-free live video through compatible versions of Chrome, Firefox, and Microsoft Edge. This is especially useful for customers replacing older cameras that depended on Internet Explorer, ActiveX, or outdated browser plug-ins simply to view live video.
Browser access can also be useful for live viewing, camera configuration, and system administration from a computer connected to the appropriate network.
NDAA Compliant AvaEye Camera
The AECOB4K is part of the AvaEye series and is NDAA compliant. It is a suitable option for customers and organizations that specifically require NDAA compliant security camera equipment while still wanting a cost-effective 4K PoE camera with audio recording and local MicroSD storage.
Wired PoE Installation with No Built-In Wi-Fi
The AECOB4K connects through a 10/100 Ethernet port and does not contain a Wi-Fi radio. When IEEE 802.3af PoE is used, the same Ethernet cable carries network communication and electrical power. A separate 12V DC input is available when camera power and network connectivity are supplied separately.
The three-axis bullet mount provides 0° to 360° pan, 0° to 90° tilt, and 0° to 360° rotation adjustment. This makes it straightforward to aim the camera along a building wall, across an entrance, down a driveway, or toward another fixed area of interest.
When to Choose the AECOB4K
This camera is a good choice when you need:
A visible exterior bullet camera with a wide 107° field of view
4K detail without paying for a motorized zoom lens
Built-in audio recording
Human-body filtering for supported cross-line and intrusion rules
Color: 0.01 Lux at F1.6 with AGC on; 0 Lux with IR on
Night Vision
850nm Smart IR
IR Distance
Up to 98.4ft
WDR
120dB
Image Processing
2D/3D DNR, HLC, BLC, digital defog
Video Streams
Dual streams
Event Detection
Motion detection, tampering alarm, audio detection, cross-line detection based on human-body detection, intrusion detection based on human-body detection
Built-In Microphone
Yes
Built-In Speaker
No
Two-Way Audio
No
Audio Compression
G.711U, G.711A
Local Storage
MicroSD card up to 256GB
Network Storage
ANR, NAS using NFS
ONVIF
Profiles S, G, T
Browser Viewing
Plug-in-free live viewing supported in compatible Chrome, Firefox, and Microsoft Edge browsers
Network Connection
Wired Ethernet only; no built-in Wi-Fi
Network Port
1 x RJ45 10M/100M Base-TX Ethernet
Power
12V DC +/-25% or PoE IEEE 802.3af
Maximum Power Consumption
5.0W
Adjustment
Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Weather Rating
IP67
Operating Temperature
-22°F to 140°F
Operating Humidity
Up to 95% RH, non-condensing
Material
Graphene + metal
Dimensions
6.6" x 2.6" x 2.7"
Weight
0.72 lb
FAQ
Is the AvaEye AECOB4K NDAA compliant?
Yes. The AECOB4K is part of the AvaEye series and is NDAA compliant.
Does the AvaEye AECOB4K have a built-in microphone?
Yes. The AECOB4K has a built-in microphone for recording audio and for supported audio-detection events. It does not have a built-in speaker, so it does not provide two-way audio.
Does the AECOB4K have Wi-Fi?
No. The AECOB4K is a wired Ethernet security camera. It supports IEEE 802.3af PoE so power and network data can travel over the same Ethernet cable.
Can the AECOB4K record without an NVR?
Yes. A MicroSD card up to 256GB can be installed for local edge recording. The camera can also record to compatible network storage or be used with an NVR.
How wide is the viewing angle of the AECOB4K?
The fixed 2.8mm lens provides a 107 degree horizontal field of view. This makes the camera better suited to wide overview coverage than narrow long-distance viewing.
How far away can the AECOB4K identify a person?
The DORI identification reference distance is approximately 20.7ft. Recognition is approximately 41.3ft, observation is 82.7ft, and detection is 206.7ft. These are planning references, and actual usable detail depends on lighting, mounting height, viewing angle, movement, and other scene conditions.
What event detection does the AECOB4K support?
The camera supports standard motion detection, tampering alarms, audio detection, and human-body-based cross-line and intrusion detection.
Does the AECOB4K have Smart Motion Detection (SMD)?
No. The AECOB4K does not have Smart Motion Detection (SMD). It supports standard motion detection along with human-body-based cross-line and intrusion detection. If you specifically want an AvaEye 4K camera with SMD, consider the IP4K1BLG 4K PoE bullet camera or the IP4K2T 4K PoE turret camera.
Can I view the AECOB4K in Chrome, Firefox, or Microsoft Edge without a plug-in?
Yes. Compatible versions of Chrome, Firefox, and Microsoft Edge support plug-in-free live viewing, so an old-style browser plug-in is not required for normal live video access.
Will the AECOB4K work with a third-party ONVIF NVR?
Yes. The AECOB4K supports ONVIF Profiles S, G, and T and can work with many compatible third-party NVRs. Basic video and recording may work while camera-side events, audio features, and other functions can vary depending on the recorder and its ONVIF implementation.
