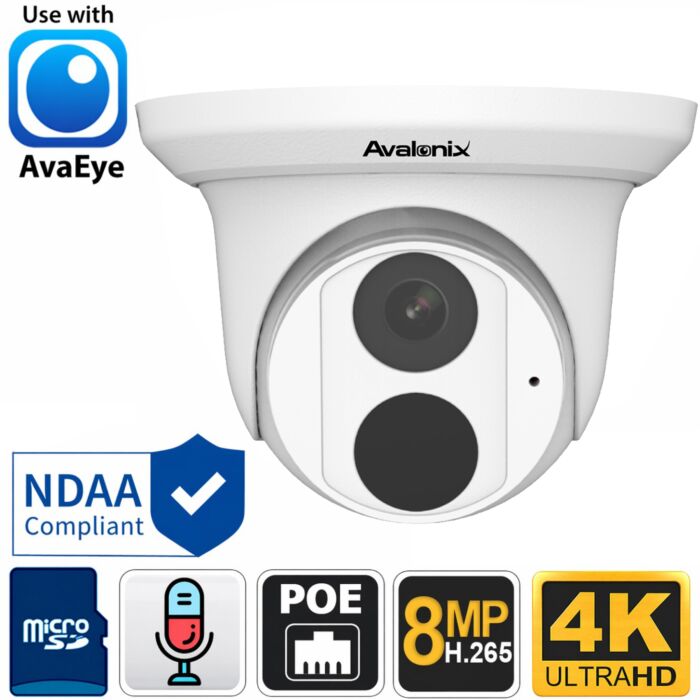

4K PoE Turret Security Camera - AvaEye AECOTD4K compact turret camera with 8MP 4K video, PoE power, built-in microphone, human-body event filtering, and MicroSD recording.
Wide 107 Degree View - The fixed 2.8mm lens provides broad coverage for entrances, hallways, offices, retail spaces, warehouses, porches, and building exteriors.
Up to 98.4ft IR Night Vision - Smart IR provides black-and-white nighttime video with infrared illumination rated up to 98.4ft.
Human-Filtered Event Detection - Cross-line and intrusion rules can use human-body detection to make selected events more useful than basic motion detection alone.
Built-In Microphone - Records audio with video and supports audio detection. This camera does not have a built-in speaker or two-way audio.
Standalone or NVR Recording - Record to a compatible AvaEye NVR, NAS, or MicroSD card up to 256GB for local edge storage.
ONVIF S/G/T Support - Supports ONVIF Profiles S, G, and T for integration with compatible third-party NVRs and video software.
Plug-In-Free Browser Viewing - Compatible Chrome, Firefox, and Microsoft Edge versions can display live video without an old browser plug-in.
Outdoor NDAA Compliant Build - IP67 weather protection, compact turret housing, wired Ethernet, PoE or 12VDC power, no built-in Wi-Fi, and NDAA compliant status support professional installations.
Choose quantities for each item. Set a quantity to 0 to remove it.
Optional Mounts
Junction Box for Fixed Lens Dome Cameras, AvaEye
Junction Box for Fixed Lens Dome Cameras, AvaEye
SKU: MB03G
Fixed Lens Dome Camera Junction Box - AvaEye white junction box for select fixed lens dome camera installations.
Weather Resistant Design - Helps shield the camera pigtail and cable connections from outdoor conditions when installed correctly.
Ceiling Mount Application - Product specs list this model for ceiling mounting of compatible fixed lens dome cameras.
Aluminum Body - Measures about 4.29 x 1.42 inches (10.9 x 3.6cm) with a white finish.
G3/4 Pipe Thread - Supports conduit-style cable entry with a G 3/4 inch pipe thread.
Compatibility Note - Check the camera product description before ordering. Fit is only supported for select AvaEye dome camera models.
Outdoor Wall Mount Bracket for Small Dome Cameras by AvaEye
Outdoor Wall Mount Bracket for Small Dome Cameras by AvaEye
SKU: WM03D
Avaeye Small Dome Bracket - White outdoor wall mount bracket for select AvaEye fixed lens dome cameras.
Arm Style Installation - Moves the compatible dome camera away from the wall to help set the correct viewing direction.
Aluminum Construction - Weather resistant aluminum bracket for outdoor or exposed mounting locations.
Pre-Drilled Mounting - Designed to align with specific AvaEye dome camera models.
Field Adjustable Fit - Holes may be adjusted with a metal drill bit if needed for a compatible camera.
Compatibility Note - Check the camera product page before ordering because this mount is for select AvaEye dome cameras only.
Color - White finish for matching compatible white dome camera housings.
Compatible set: these 2 products are selected together.
Outdoor Wall Mount Bracket for Small Dome Cameras by AvaEye
Outdoor Wall Mount Bracket for Small Dome Cameras by AvaEye
SKU: WM03D
Avaeye Small Dome Bracket - White outdoor wall mount bracket for select AvaEye fixed lens dome cameras.
Arm Style Installation - Moves the compatible dome camera away from the wall to help set the correct viewing direction.
Aluminum Construction - Weather resistant aluminum bracket for outdoor or exposed mounting locations.
Pre-Drilled Mounting - Designed to align with specific AvaEye dome camera models.
Field Adjustable Fit - Holes may be adjusted with a metal drill bit if needed for a compatible camera.
Compatibility Note - Check the camera product page before ordering because this mount is for select AvaEye dome cameras only.
Color - White finish for matching compatible white dome camera housings.
Avaeye Pole Mount - White pole mount for select AvaEye bullet cameras when a wall or ceiling mount is not the right fit.
Bullet Camera Compatibility - Designed for specific AvaEye bullet camera and junction box combinations. Check the camera page before ordering.
Aluminum Construction - Weather resistant aluminum build for outdoor camera mounting locations.
Junction Box Connection - Made to pair with compatible AvaEye junction boxes so camera wiring can be routed through a cleaner mounting setup.
Field Adjustable Fit - Pre-drilled holes fit select models. New holes may be drilled with a metal bit if needed, but modified equipment is not returnable.
Wall Bracket with Junction Box for Small Dome Cameras by AvaEye
Wall Bracket with Junction Box for Small Dome Cameras by AvaEye
SKU: WB03GJB
Wall Mount With Junction Box - White arm-style wall bracket with integrated junction box for select AvaEye fixed lens dome cameras.
Fixed Dome Camera Mounting - Extends a compatible dome camera away from the wall for improved placement.
Built-In Cable Space - Integrated junction box helps conceal and protect the camera pigtail and wiring.
Aluminum Alloy Body - Durable white aluminum alloy construction for indoor or outdoor use.
Pass Through Outlet - Provides a pass-through path for compatible camera wiring.
Size And Weight - 12.7cm x 12.6cm x 22.8cm bracket, weighing 2.20 lbs.
Compatibility Note - Pre-drilled for select AvaEye fixed lens dome cameras. Confirm your camera model before ordering.
Compatible set: these 2 products are selected together.
Wall Bracket with Junction Box for Small Dome Cameras by AvaEye
Wall Bracket with Junction Box for Small Dome Cameras by AvaEye
SKU: WB03GJB
Wall Mount With Junction Box - White arm-style wall bracket with integrated junction box for select AvaEye fixed lens dome cameras.
Fixed Dome Camera Mounting - Extends a compatible dome camera away from the wall for improved placement.
Built-In Cable Space - Integrated junction box helps conceal and protect the camera pigtail and wiring.
Aluminum Alloy Body - Durable white aluminum alloy construction for indoor or outdoor use.
Pass Through Outlet - Provides a pass-through path for compatible camera wiring.
Size And Weight - 12.7cm x 12.6cm x 22.8cm bracket, weighing 2.20 lbs.
Compatibility Note - Pre-drilled for select AvaEye fixed lens dome cameras. Confirm your camera model before ordering.
Avaeye Pole Mount - White pole mount for select AvaEye bullet cameras when a wall or ceiling mount is not the right fit.
Bullet Camera Compatibility - Designed for specific AvaEye bullet camera and junction box combinations. Check the camera page before ordering.
Aluminum Construction - Weather resistant aluminum build for outdoor camera mounting locations.
Junction Box Connection - Made to pair with compatible AvaEye junction boxes so camera wiring can be routed through a cleaner mounting setup.
Field Adjustable Fit - Pre-drilled holes fit select models. New holes may be drilled with a metal bit if needed, but modified equipment is not returnable.
128GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
256GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
30W PoE Injector - Adds PoE power to one compatible IP camera, access point, VoIP phone, or network device.
Single Device Power - Practical when one PoE device needs power but the router or network switch does not provide PoE.
802.3Af/At Support - Compliant with standard PoE and PoE+ devices that accept 802.3af or 802.3at input.
10/100Mbps Data - Supports 10/100Mbps network connections for compatible devices.
Camera Installation Use - Connect the powered device to the PoE side and connect the data side back to a router, switch, or recorder network.
Distance Note - Intended for standard Ethernet cable runs up to 300ft when installed with proper cable and compatible equipment.
6ft Cat5E Patch Cable - Pre-made network cable for short indoor network connections, IP cameras, PoE camera systems, and other RJ45 devices.
RJ45 Ends Installed - Factory-terminated connectors save time compared with cutting and crimping your own cable.
Booted Connectors - Booted RJ45 tips help protect the connector latch from accidental damage or disconnection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for clean indoor wiring paths, racks, cabinets, and short patch runs.
Protected Use - Best used indoors or inside conduit where the cable is protected from water.
25ft Cat5E Patch Cable - Pre-made network cable for IP cameras, IP systems, and general RJ45 network connections.
RJ45 Ends Installed - Ready-to-use cable avoids the need to crimp connectors in the field.
Booted Connectors - Connector boots help protect the latch and support a more secure connection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable works well for clean indoor cable routing and short network runs.
Protected Use - Intended for indoor use or conduit-protected runs where the cable is not exposed to water.
50ft Cat5E Network Cable - Pre-made cable for IP cameras, camera systems, and general RJ45 network connections.
RJ45 Tips Installed - Comes with RJ45 connectors already attached, reducing field crimping work.
Booted Connectors - Booted ends help prevent accidental disconnection and protect the connector tab.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for indoor installations, equipment rooms, and protected network runs.
Protected Use - Use indoors or in conduit where the cable is protected from water.
100ft Cat5E Patch Cable - Pre-made white network cable for IP camera, NVR, and general network connections.
Booted RJ45 Connectors - Factory-installed RJ45 ends help avoid field crimping and reduce accidental unplugging.
Indoor Or Protected Runs - Good for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy patch cable for standard network and camera system wiring needs.
150ft Cat5E Patch Cable - Pre-made white network cable for IP cameras, NVRs, and general network connections.
Factory RJ45 Ends - RJ45 connectors are already installed, which saves time compared with crimping ends in the field.
Booted Connector Design - Booted RJ45 ends help protect the latch and reduce accidental unplugging.
Indoor Or Protected Runs - Suitable for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy cable option for standard camera system and network wiring.
150ft Solid Copper Cat5E Cable - Pre-made white network cable for longer IP camera, NVR, and network patch runs.
350Mhz Rated Wire - Solid bare copper CAT5e construction supports reliable data and video signal quality.
Booted RJ45 Connectors - Factory-installed RJ45 ends reduce field crimping work and help prevent accidental disconnects.
Gigabit Ready When Supported - Can be used in Gigabit network applications with compatible network cards and switches.
Indoor Or Protected Installs - Best for indoor use or conduit runs where the cable is protected from water.
Includes One Cable - Includes one 150ft CAT5e cable with RJ45 connectors already attached.
AvaEye SeriesUse with AvaEye PoE cameras and NVRsMatched recorders, cameras and mounts from the same series set up together on one app.Browse AvaEye
The AvaEye AECOTD4K is a compact 8MP 4K PoE security camera built around a wide 2.8mm lens, built-in microphone, human-body filtering for supported event rules, 98.4ft Smart IR night vision, and MicroSD recording up to 256GB. Its turret-style housing works especially well beneath soffits, on ceilings, along hallways, above entrances, and in other locations where a compact fixed camera is preferred.
The 107° horizontal field of view covers a broad scene without requiring a motorized lens. Power and network communication can travel over one Ethernet cable when the AECOTD4K is connected to a compatible PoE switch or PoE NVR. A 12V DC input is also available. This is a wired camera and does not have built-in Wi-Fi.
Key Features of the AvaEye AECOTD4K
8MP 4K Resolution: Captures 3840 x 2160 video at up to 15fps.
107° Wide-Angle Lens: The fixed 2.8mm F1.6 lens covers entrances, rooms, aisles, hallways, and exterior areas.
Human-Body Event Filtering: Supported cross-line and intrusion rules can use human-body detection.
Built-In Microphone: Captures audio with video and provides support for audio-detection events.
98.4ft Smart IR: Provides infrared-assisted nighttime viewing in dark scenes.
120dB WDR: Helps preserve usable detail when bright and dark areas appear in the same scene.
Up to 256GB MicroSD: Allows local edge recording without requiring an NVR for every installation.
ONVIF Profiles S/G/T: Provides standards-based compatibility with many third-party recorders.
Modern Browser Viewing: Supports plug-in-free live view through compatible Chrome, Firefox, and Edge versions.
NDAA Compliant: Part of the AvaEye NDAA compliant series for professional installations.
IP67 Weather Protection: Suitable for indoor and outdoor installation.
4K Detail for Wide Overview Coverage
The AECOTD4K uses an 8MP 1/2.7" CMOS sensor and records at a maximum resolution of 3840 x 2160. At full 8MP resolution, the maximum frame rate is 15fps. That is a useful tradeoff when the purpose of the camera is to capture a detailed overview of a fixed scene rather than fast-action video at 30fps.
If smoother video is more important than recording at maximum resolution, supported lower-resolution settings provide higher frame rates. The camera supports 5MP and 4MP at up to 25/20fps, with 3MP and 1080P modes reaching up to 30/25fps.
Supported video compression includes H.265, H.264, and MJPEG.
107 Degree View from a Compact Turret Camera
The 2.8mm F1.6 lens provides a 107° horizontal view, 59.7° vertical view, and 111.5° diagonal view. This wide perspective works well over doorways, along retail aisles, in office interiors, in warehouse areas, beneath exterior soffits, and in other installations where one fixed camera needs to see a broad portion of the scene.
The camera is designed for wide coverage rather than distant close-ups. Its DORI planning references are approximately 206.7ft for detection, 82.7ft for observation, 41.3ft for recognition, and 20.7ft for identification.
This means someone may be visible in the scene at a considerable distance while still being too far away for reliable identifying detail. Camera height, viewing angle, lighting, movement, weather, target size, and other scene conditions affect what can actually be seen in recorded video.
In addition to conventional motion detection, the AECOTD4K provides cross-line and intrusion rules that can use human-body detection. This allows the camera to focus those particular events on a person rather than treating every change in the image as equally important.
A line can be placed across a doorway, walkway, aisle, or other boundary, while an intrusion area can be drawn around a location where a person entering the zone should generate an event.
Cross-Line Detection: Human-body-based detection can be applied to a selected virtual boundary.
Intrusion Detection: Human-body-based detection can be used within a defined area.
Motion Detection: Standard configurable image motion detection is also available.
Tampering Alarm: Helps identify interference with the camera view.
Audio Detection: Uses the internal microphone for supported sound-related events.
Built-In Audio Recording
The AECOTD4K includes a microphone inside the camera housing, allowing compatible recordings to include sound without adding a separate external microphone. For retail entrances, reception areas, offices, interior hallways, loading areas, and other applications, recorded audio can provide useful context alongside the video.
The built-in microphone also supports audio-detection functions. This model does not have a built-in speaker and therefore does not provide two-way talk. Customers who need to speak through the camera should select a model with both a microphone and speaker.
Built-in 850nm infrared LEDs provide Smart IR illumination rated up to 98.4ft. When the scene becomes dark, the camera can switch from normal color viewing to infrared-assisted black-and-white video.
Smart IR adjusts the infrared output to help keep nearby subjects from becoming overly bright as they approach the camera. The 98.4ft rating describes the reach of the illuminator and does not mean that a face can necessarily be identified at 98.4ft.
The AECOTD4K also supports 120dB WDR, 2D and 3D noise reduction, HLC, BLC, and digital defog to help improve video in difficult lighting.
Up to 256GB of On-Camera Recording
A MicroSD card up to 256GB can be installed for local edge recording. This makes the AECOTD4K useful both as part of a larger NVR system and in supported standalone applications where a recorder is not required at the camera location.
Network storage options include ANR and NAS using NFS. For customers who want centralized management of multiple cameras, a compatible NVR recorder provides easier search, playback, and multi-camera recording.
The AECOTD4K supports ONVIF Profiles S, G, and T along with API and SDK integration. This allows the camera to work with many compatible third-party NVRs and video platforms.
ONVIF does not guarantee that every camera-side function will appear in every third-party recorder interface. Video and basic recording may be available while specialized event configuration, audio functions, or other settings vary by manufacturer and ONVIF implementation. A compatible AvaEye NVR is recommended when complete AvaEye integration is important.
Plug-In-Free Viewing in Modern Browsers
Compatible versions of Chrome, Firefox, and Microsoft Edge can display live video without an old-style browser plug-in. This is a meaningful convenience for customers replacing older IP cameras that depended on Internet Explorer, ActiveX, or obsolete browser extensions simply to access live video.
Browser access can also provide a convenient way to view and configure the camera from a computer connected to the appropriate network.
NDAA Compliant AvaEye Camera
The AECOTD4K is part of the AvaEye series and is NDAA compliant. It is a practical choice for customers looking for NDAA compliant security cameras while still wanting an economical fixed-lens 4K PoE camera with a built-in microphone and local recording capability.
Compact Wired PoE Installation
The turret housing measures approximately 5 inches in diameter and 3.7 inches tall. Its three-axis adjustment provides 360° pan, up to 75° tilt, and 360° rotation, making it suitable for ceiling, soffit, and wall mounting in a variety of fixed-camera installations.
The camera uses wired 10/100 Ethernet and supports IEEE 802.3af PoE or 12V DC power. It does not contain built-in Wi-Fi. Maximum camera power consumption is 4W.
IP67 weather protection supports indoor and outdoor use, while the rated operating range extends from -22°F to 140°F.
When to Choose the AECOTD4K
This camera is a good choice when you need:
A compact turret camera for ceilings, soffits, entrances, or wall mounting
A wide 107° view from a fixed 2.8mm lens
8MP 4K video for detailed overview coverage
Built-in audio recording without an external microphone
Human-body filtering for supported cross-line and intrusion rules
Color: 0.01 Lux at F1.6 with AGC on; 0 Lux with IR on
Night Vision
850nm Smart IR
IR Distance
Up to 98.4ft
WDR
120dB
Image Processing
2D/3D DNR, HLC, BLC, digital defog
Video Streams
Dual streams
Event Detection
Motion detection, tampering alarm, audio detection, cross-line detection based on human-body detection, intrusion detection based on human-body detection
Built-In Microphone
Yes
Built-In Speaker
No
Two-Way Audio
No
Audio Compression
G.711U, G.711A
Local Storage
MicroSD card up to 256GB
Network Storage
ANR, NAS using NFS
ONVIF
Profiles S, G, T
Browser Viewing
Plug-in-free live viewing supported in compatible Chrome, Firefox, and Microsoft Edge browsers
Network Connection
Wired Ethernet only; no built-in Wi-Fi
Network Port
1 x RJ45 10M/100M Base-TX Ethernet
Power
12V DC +/-25% or PoE IEEE 802.3af
Maximum Power Consumption
4.0W
Adjustment
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Weather Rating
IP67
Operating Temperature
-22°F to 140°F
Operating Humidity
Up to 95% RH, non-condensing
Material
Metal + plastic
Dimensions
5.0" diameter x 3.7" height
Weight
0.63 lb
FAQ
Is the AvaEye AECOTD4K NDAA compliant?
Yes. The AECOTD4K is part of the AvaEye series and is NDAA compliant.
Does the AvaEye AECOTD4K have a built-in microphone?
Yes. The AECOTD4K has a built-in microphone for recording audio and for supported audio-detection events. It does not have a built-in speaker, so it does not provide two-way audio.
Does the AECOTD4K have Wi-Fi?
No. The AECOTD4K is a wired Ethernet security camera. It supports IEEE 802.3af PoE so power and network data can travel over the same Ethernet cable.
Can the AECOTD4K record without an NVR?
Yes. A MicroSD card up to 256GB can be installed for local edge recording. The camera can also record to compatible network storage or be used with an NVR.
How wide is the viewing angle of the AECOTD4K?
The fixed 2.8mm lens provides a 107 degree horizontal field of view, making the camera well suited to entrances, rooms, hallways, warehouse areas, and other locations where broad overview coverage is more important than a narrow long-distance view.
How far away can the AECOTD4K identify a person?
The DORI identification reference distance is approximately 20.7ft. Recognition is approximately 41.3ft, observation is 82.7ft, and detection is 206.7ft. These are planning references, and actual usable detail depends on lighting, mounting height, viewing angle, movement, and other scene conditions.
What event detection does the AECOTD4K support?
The camera supports standard motion detection, tampering alarms, audio detection, and human-body-based cross-line and intrusion detection.
Does the AECOTD4K have Smart Motion Detection (SMD)?
No. The AECOTD4K does not have Smart Motion Detection (SMD). It supports standard motion detection along with human-body-based cross-line and intrusion detection. If you specifically want an AvaEye 4K camera with SMD, consider the IP4K2T 4K PoE turret camera or the IP4K1BLG 4K PoE bullet camera.
Can I view the AECOTD4K in Chrome, Firefox, or Microsoft Edge without a plug-in?
Yes. Compatible versions of Chrome, Firefox, and Microsoft Edge support plug-in-free live viewing, so an old-style browser plug-in is not required for normal live video access.
Will the AECOTD4K work with a third-party ONVIF NVR?
Yes. The AECOTD4K supports ONVIF Profiles S, G, and T and can work with many compatible third-party NVRs. Basic video and recording may work while camera-side events, audio features, and other functions can vary depending on the recorder and its ONVIF implementation.
