4K HDCVI Analog Bullet Camera - Avalonix 8MP bullet camera for upgrading compatible coax DVR systems to 4K video without replacing existing RG59 cabling.
Motorized 3.7-11mm Zoom - Adjust the lens from a 112 degree wide view to a 46 degree tighter view through a compatible DVR or mobile app.
4K Over Coax Video - Sends Ultra HD 4K video over compatible HDCVI DVRs while keeping the simple BNC-style installation of analog camera systems.
328ft IR Night Vision - Four Super IR LEDs provide long range black-and-white night video for outdoor areas after dark.
True WDR and Smart IR - True WDR helps balance strong backlight and shadows, while Smart IR helps reduce night vision glare on closer objects.
Dual BNC Outputs - Includes HDCVI video output plus CVBS analog output for testing or standard definition viewing where needed.
Audio Input Option - Supports an add-on microphone through the audio input when used with compatible recording equipment.
Outdoor Analog Camera Features - Includes IP67 weather protection, metal construction, wall or eave mounting, and 12V DC power with optional 24VAC selection where supported.
IP66 White Junction Box - Weather resistant aluminum junction box for select bullet and turret dome security cameras.
Pigtail Coverage - Helps conceal the camera pigtail and protect the connection area when properly installed.
Conduit Ready - G3/4 inch conduit thread cutout supports conduit-based wiring at the camera mount.
Wall Or Pole Mount Use - Can mount directly to a wall or connect to the compatible mini pole mount listed for this product.
Metal Camera Compatibility - Made for specific metal camera models with matching mounting holes.
Size And Load Rating - 4.88 inches diameter x 1.61 inches height with a 6.6 lb load rating.
Temperature Range - Rated for -40F to +140F operating temperature.
Compatibility Note - Check your camera description before ordering.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
PTZ Corner Mount - Outdoor corner mount bracket for select full size PTZ cameras.
Compatible Camera Types - Works with select analog, HDCVI, and IP based PTZ models with or without IR.
Not For Mini PTZ Cameras - This mount is not compatible with mini-size pan tilt zoom cameras.
Aluminum Construction - Aluminum bracket supports outdoor installations when mounted properly.
Load Rating - Supports up to 22 lbs, with 3.8 lb bracket weight.
Size Details - Dimensions are 9.6 x 6.7 x 5.5 inches.
Compatibility Note - Confirm your PTZ camera model and mounting pattern before purchase.

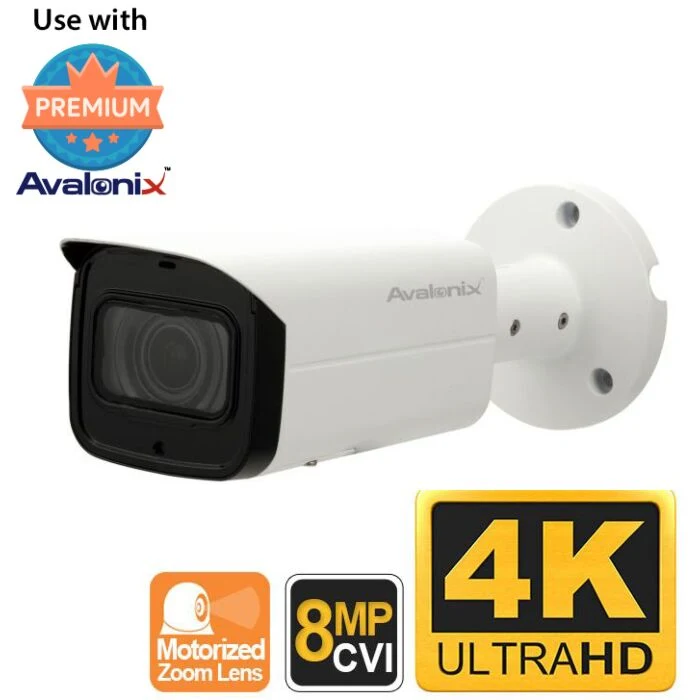

We are proud to present the 4K HDCVI Security Camera with Zoom which is the world’s first 4K over coaxial cable camera. Just like our 4K IP cameras, this camera has an 8 Megapixel Image Sensor to produce 4K Resolution Ultra HD video, which is 4 times the resolution of 1080P. You can see farther with more detail with one camera and reduce the number of cameras needed, thus reducing the cost of your security project.
You no longer have to redo your existing coax cabling to CAT5e to upgrade to a 4K security camera system. Our 4K over coax cameras are easy to install and configure with plug & play BNC connections like traditional analog camera systems without the complicated nature of configuring a network. Using CCTV Camera World’s HDCVI cameras you can seamlessly upgrade security camera systems without replacing existing coax cabling. RG59U 20awg wire is required for good signal quality; this is the cable you get from a spool of RG59 wire.
Have a long cable run? No problem. HDCVI signals can be transmitted up to 1600ft on RG59U and 1000ft via use of HD video baluns on network UTP cabling.
Our HDCVI cameras allow video, data and audio (where available) to be transmitted over a single coax wire. Our HDCVI DVRs and Tribrid / Pentabrid DVRs are compatible with HDCVI cameras that we sell.
This camera offers both HDCVI and analog (CVBS) video outputs simultaneously with two BNC connectors present on the pigtail. You can use its CVBS output with an analog video tester for making camera adjustments at time of installation, and you can even connect this camera to an analog DVR to output at 480P.
This 4K Security camera adds more power to its 4K video resolution by providing the user with a motorized zoom lens to see farther and wider than the traditional 80 degree view of most cameras on the market. It has a motorized zoom lens that can be adjusted from the DVR or through the mobile app. At the widest 3.7mm setting, the camera provides a wide angle view of 112 degrees with the ability to recognize a face up to 50ft away. When zoomed in all the way (Tele lens setting) to the 11mm setting, the camera provides a 46 degree angle of view with the ability to recognize a face up to 125ft. These figures have been tested in ideal daylight conditions without glare when recording at 4K resolution and 15fps.
Although you could use this camera to look at license plates during the day for vehicles moving 30mph or less, it cannot be used at night for plate capture because of IR glare from the license plate. Nothing beats an actual license plate capture camera for recording plates in both day and night.
This camera has long range infrared capabilities as well for general perimeter security. At night its Super IR LEDs can provide up to 328ft of night vision, enabling long distance intruder detection. To manage its infrared intensity, this 4K security camera’s Smart IR function helps reduce IR glare and over-exposure by reducing IR intensity when objects are detected close to the camera.
In addition to providing Ultra HD video, the camera has True WDR (120dB) which optimizes both the bright and dark areas of the video at the same time to provide amazing usable video. For example, this is useful in situations where the camera is mounted inside in a warehouse and looking out towards the roll-up door. The camera will be able to see both inside where it is darker and outside where it is brighter.
This is a bullet shaped camera that can be mounted on a wall, ceiling, eaves, or pole thanks to its 3-axis bracket which allows flexibility in mounting. It is rated IP67 and made of metal, making it rugged enough for outdoor use without the need for additional cover.
What's included?
(1) 4K HDCVI Security Camera Bullet with Motorized Zoom Lens
Features
8MP CMOS Sensor provides crystal clear Ultra HD 4K video
Facial Detail up to 125ft with lens set at 11mm, 46 degree angle of view1
Facial Detail up to 50ft with lens set at 3.7mm, 112 degree angle of view1
Varifocal Motorized 3.7mm-11mm Lens controllable from DVR, Smartphone or Computer
328ft Long Range Infrared provided by four IR LEDs2
0.01 Low Lux Sensitivity allows camera to see in color with little ambient light3
Auto Day/Night Switching Technology to switch to black & white in total darkness
1. Under ideal daylight conditions. Camera not for use as license plate camera at night. 2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white. 3. Camera has a 0.01 Lux rating in color mode. Camera switches to black and white mode in complete darkness 4. Not intended for submersion in water. Installation in a sheltered location recommended.
12VDC (24VAC optional, choose when adding to cart)
Power Consumption
18.4W
Power Output
12VDC 4W max (for add on mic)
Weight
2.4 lbs
*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.
