12V DC 1 Amp Power Supply - Provides 12V DC output for compatible CCTV cameras and other low-voltage security camera equipment.
Center Positive 2.1Mm Plug - Uses a common 2.1mm center-positive DC connector for compatible devices.
Indoor Or Enclosure Use - Designed for indoor use or placement inside a suitable outdoor enclosure.
Power Matching Required - Check the device voltage, amperage, connector size, and polarity before connecting.
Long Run Note - For cable runs over 100ft on 18 AWG power wire, a higher amperage 12V supply may be needed to account for voltage drop.
60ft Analog Siamese Cable - Low-cost premade white cable for standard definition CVBS camera installations.
Video And Power In One Run - Carries BNC video and 12V DC power over the same cable.
BNC Male Video Ends - Video connectors are already installed for plug-in use with compatible analog equipment.
12V DC Power Connection - 2.1mm DC jack and plug for compatible 12V DC devices.
Non-HD Signal Use - Intended for analog CVBS video and not for HD over coax camera signals.
Indoor Friendly Design - Thin, lightweight cable is best suited for indoor or protected runs.
150ft CVBS Siamese Cable - Premade white video and power cable for standard definition analog camera signals.
BNC Video Ends - BNC male connectors are already installed for compatible CVBS equipment.
12V DC Power Ends - Includes 2.1mm DC jack and plug for compatible 12V DC power.
480P Or D1 Use - Suitable for analog video up to 480P or D1 resolution.
Not For HD Signals - Not suitable for HD over coax camera signals.
Indoor Or Covered Use - Best for indoor runs or protected outdoor areas under cover.
28Awg Wire - Lightweight premade cable for basic analog installations.
Premade Cable Limit - Cable cannot be cut and crimped again.

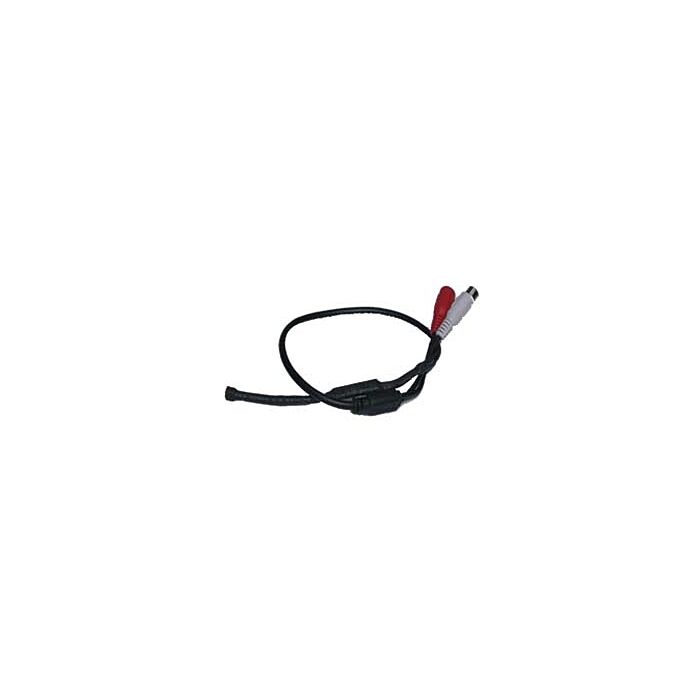

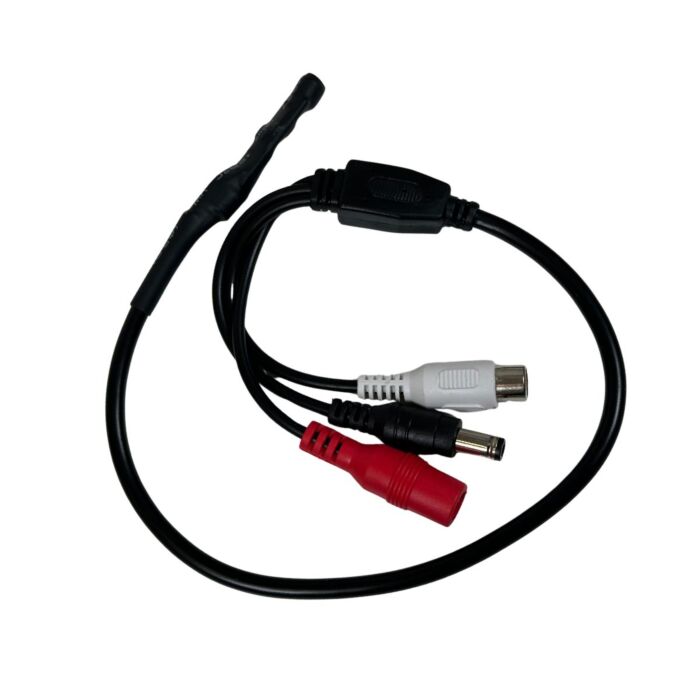

If you are looking to add audio monitoring to your security camera or surveillance system, then this small microphone will be a perfect add-on accessory. It is a small mono aural microphone for indoor use, and has good audio listening capability up to 60ft away indoors. Be sure to account for having an extra coax line to run the audio signal from this mic, and a 12V DC power source. You can wire this add-on security camera microphone several different ways, including the following:
If adding to an existing camera location, you can get a new premade BNC Siamese Cable to run this security camera microphone and use BNC Female to RCA Male connectors to terminate the BNC to RCA to connect the microphone and DVR. The DC power connectors will simply connect from the cable to the mic, and to a 12VDC power supply. You can purchase a 12V DC 1amp power supply here.
If you are adding a new camera and microphone, then we suggest purchasing our Audio Video Power CCTV Wire which together will let you connect a camera and microphone together on one cable and power both at the same time as well. For the power supply in this case, we suggesting using at least a 12V 1amp power supply to make sure ample current is provided to both the camera and microphone.
Features
Add audio to any CCTV Camera
Audio pick-up from up to 60ft away
RCA Female Jack for Audio Output
12V DC Power Jack with Power Splitter to connect to camera
100mA power consumption
What’s included?
(1) Add-on Security Camera Microphone with Power Splitter built-in
