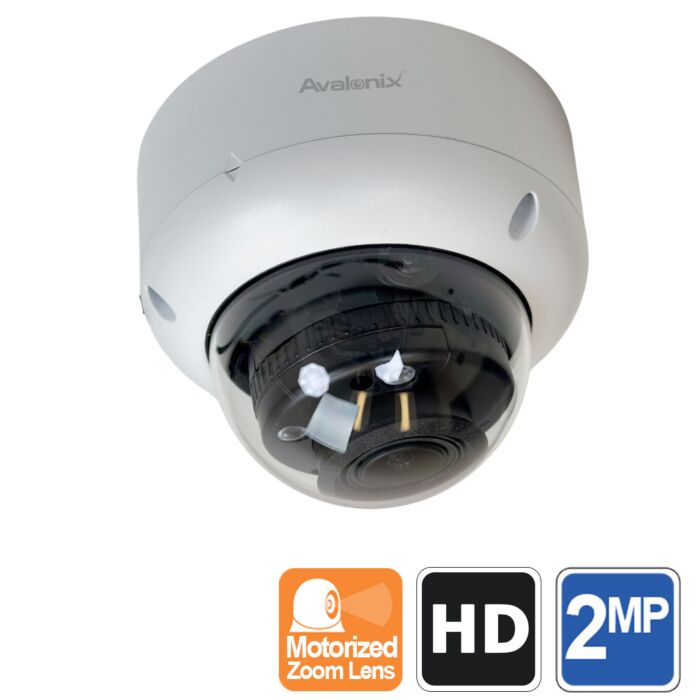

1080P Dome Security Camera, 24VAC 12VDC Dual Voltage

SKU: HD2560A

Write a Review

Availability: In stock

Regular Price: $245.00

On Sale: $199.99

Select a power adaptor if you do not have a 12V DC power adaptor or power supply already.

Select cabling for your camera. This camera only has a small 4 inch pigtail on it, which has a BNC video out and a 12V DC jack.

You can choose from the following optional brackets to aid in installation.

  • Junction Box for Dome Cameras
  • Wall Mount Arm Bracket for Security Cameras
  • Pole Mount Bracket Mini
  • Recessed Mount for Dome Cameras

* Required Fields

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

This powerful HD over Coax camera has a 2MP image sensor that produces 1080P HD video. 2MP Resolution security footage provides good detail by providing the ability to use digital zoom on recorded or live footage when use with a HD DVR. With our HDCVI cameras such as this, you can easily get HD quality video using simple RG59U coaxial cable that has BNC connections. No matter if you are looking to install a new system, or upgrade your old system, cameras like this HDCVI 2MP security camera are an affordable choice when paired with a HDCVI DVR.

Unlike almost all other security cameras, this camera is dual voltage. For customers replacing older analog cameras that are 24VAC or with long distance runs above 300ft, this camera's dual voltage feature allows use of 24VAC to power the camera.

The camera takes it's HD video another step by having a motorized zoom lens. With its 5X optical zoom lens the user can see farther than traditional surveillance cameras on the market. Not only is the lens motorized, it can be controlled from the DVR or using the mobile app connected to the DVR, which is super convenience for users to adjust the camera's field of view after installation. At the widest 2.7mm setting, the camera provides a wide angle view of 108.7 degrees with the ability to recognize a face up to 25ft away. When zoomed in all the way to the 13.5mm setting, the camera provides a 28.7 degree angle of view with the ability to recognize a face up to 100ft. These distances were measured during the day with the camera recording at 2MP resolution and 30fps.

Starlight technology allows this camera to see in color in very low light

Complimenting the HD video is Starlight Technology that allows for color capture in lowlight at dusk and at night with adequate ambient lighting. In conditions as low as 0.004 Lux the camera will stay in color mode. In complete darkness or where there is little ambient lighting the camera will switch to black and white night mode. To help the camera see in complete darkness there are 2 Super IR LEDs that provide night vision up to 100ft away.

The camera also has True WDR (120dB) which provides improvements for video capture with varying light levels. For example, this is useful in situations where the camera is used inside in an office and looking towards an entrance or window.

1080P HDCVI signals can be transmitted up to 1600ft on RG59U solid copper cable and 800ft via use of HD video baluns on bare copper CAT6 cable. Video, and audio (where available) can be transmitted over a single coax wire using HDCVI technology. This camera offers HDCVI or analog (CVBS) video output using the built-in OSD through a HD DVR or UTC controller. You can set the camera to analog CVBS video output for testing, or you can even connect this camera to an older DVR to record 480P video.

This dome shaped camera can be mounted by itself on a drop ceiling. There are optional wall, ceiling and pole mounts available as well. It is IP67 weather resistant rated. Its construction and glass are rated and tested to meet IK10 impact and vandal resistance standards. It is suitable for outdoor or indoor use without the need for additional protections. It is also dual voltage and supports 12VDC or 24VAC power input.

Features

  • 2MP Starlight Sensor provides clear 1080P video
  • Facial Detail up to 25ft with lens set at 2.7mm, 108.7 degree angle of view1
  • Facial Detail up to 100ft with lens set at 13.5mm, 28.7 degree angle of view1
  • Varifocal Motorized 2.7mm-13.5mm Lens controllable from DVR, Smartphone or Computer
  • 100ft Night Vision provided by four IR LEDs2
  • 0.004 Low Lux Sensitivity allows camera to see in color with little ambient light3
  • Auto Day/Night Switching Technology to switch to black & white in total darkness
  • True WDR 120db for glare compensation
  • Works with HDCVI Compatible DVR
  • BNC connection for HDCVI Video
  • Switchable to 480P analog(CVBS) video output using UTC controller
  • Audio input for connecting add-on mic
  • Mounts directly to drop ceiling
  • Pole, ceiling, and wall mounts available
  • IP67 Weather Proof4 - Safe to use outdoors or indoors in cold or hot weather
  • IK10 Impact and vandal resistant
  • Metal construction
  • Dual Voltage 12VDC / 24VAC input

1. Under ideal daylight conditions. Camera not for use as license plate camera at night.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Camera has a 0.004 Lux rating in color mode. Camera switches to black and white mode in complete darkness
4. Not intended for submersion in water. Installation in a sheltered location recommended.

What's included?

  • (1) 2MP 1080P Dual Voltage Dome Camera

junction box and mount options

Specifications

Image Sensor1/2.8" 4MP Progressive Scan Starlight CMOS
Effective Pixels1920 (H) x 1080 (V)
Frame Rate30fps at 2MP, Up to 60fps at 720P
Shutter Speed1/1 - 1/100,000s
Minimum Illumination0.004 Lux F1.5 (Color), 0 Lux (IR On)
IR LEDs2 Super IR LEDs
IR Distance100ft
IR ControlAuto / Manual
Lens2.7-13.5mm Motorized Auto Iris Lens
Angle of View108.7° – 28.7°
Lens Mount TypeBoard-in
Max ApertureF1.6
Focus ControlAuto, Manual
Close Focus Distance7.87"
Distance to Recognize*Wide: 30ft, Tele: 102ft
Distance to Identify*Wide: 20ft, Tele: 49ft
Day/ NightAuto (ICR) / Manual
Backlight CompensationBLC / HLC / True WDR 120db
White BalanceAuto, Manual
Noise Reduction2D, 3D
Smart IRAuto, Manual
Video Connector1x BNC
Video SignalHDCVI or CVBS switchable via OSD
Microphone1 channel audio-in
Alarm in/outnone
OSDVia HDCVI DVR
Bracket RangePan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Operating Temperature-22°F to +140°F, less than 95% RH
Weather ResistanceIP67
Vandal ResistantIK10
ConstructionAluminum
Dimensions4.8" x 3.5" (diameter x height)
Power12VDC or 24VAC
Power Consumption6W
Weight1 lbs
CertificationsCE, UL

*Distance is calculated based on sensor specifications and lab test results during daylight without glare.

More

More

Return Policy30 Days Return Policy
Signal Type4-in-1
Camera Resolution1080P
Image Sensor1/2.8" 2MP SONY CMOS
Night Vision100ft
Lens2.8-12mm
Optical ZoomMotorized Zoom
Angle of View112° - 46°
Wide Dynamic Range (WDR)WDR
MicrophoneMic Input
Pan Tilt ZoomNo
Video AnalyticsNo
Important FeaturesNo
SD Card SlotNo
Power Input12V DC / 24V AC
Operating Temperature-22°F to +140°F
Dimensions4.8" x 3.5" (diameter x height)
Weight1 lbs
Weather ProofYes, IP67
Camera ColorWhite
Video EncodingH.264
Warranty1 Year

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

You need to log in to ask a question.

Total 1 question(s)

I currently have 4 outdoor cameras model CMD715 that say they are NTSC signal system.
First what does NTSC mean in relation to the 4 in 1 for camera selection on your page.
I need to replace all 4 cameras and want ones that will just hook up to the existing BNC and have excellent night vision. Which cameras that you sell would be a good replacement. Thanks

Question by: Tom on: 2019-03-08

NTSC is simply the video standard used in the United States. PAL is used in Europe and Asia. Our security cameras are NTSC unless otherwise requested or specified. 4-in-1 relates to a camera being able to support older CVBS (Analog) and newer HD over Coax signal types. Your old cameras and recorder are Analog (CVBS) signal type only, in other words they will not work with something that is HD-only. This means that 4-in-1 security cameras are what you are looking for.



The 1080P 2MP Dome Camera is a good replacement without manual zoom.


The Dual voltage 1080P Dome security camera is a good replacement with manual zoom, which is the one you inquired about.


Answer by: Tech Support on: 2019-03-12
