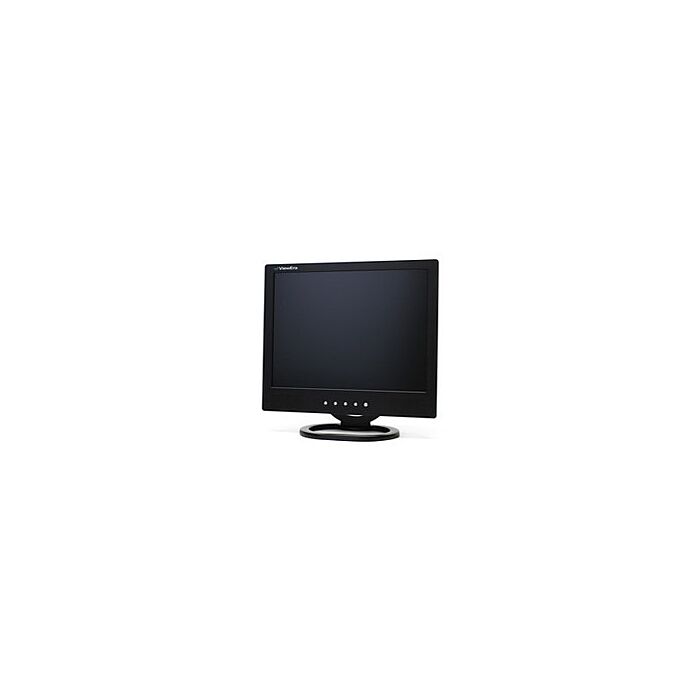

15" CCTV Security Monitor, BNC VGA Inputs

SKU: MTFT15

Write a Review

Availability: In stock

Regular Price: $339.95

On Sale: $320.00

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

Gone are the old type CRT security monitors that were heavy and took a lot of desk space. This new slim style CCTV monitor is a specially designed 15" LCD with BNC video input that is compatible with security cameras, time lapse VCRs, video multiplexers, quad video processors, and other industrial equipment that outputs in BNC. The Security BNC Monitor is made of high quality components and built to last. It is very different from regular LCD TVs. It has a power supply external to the LCD screen, which is extremely important for 24/7 use so that the monitor does not heat up and burn out in a small period of time. It comes with a 3 Year Warranty against manufacturing defects.

There are also built-in speakers for audio, and a VGA input just in case you need to connect a computer or DVR. There is also a simple and friendly on-screen display menu to alter monitor settings. Let's not forget the super useful VESA mount on the back to mount this screen to any VESA compatible mount.

Features

  • Sleek and compact design with Ultra Slim Bezel
  • Active TFT LCD
  • 15" Diagonal Screen
  • Max Resolution 1024x768
  • 4:3 Aspect Ratio
  • Response Time 12ms
  • Contrast Ratio 500:1
  • (1) BNC Video input
  • (2) RCA Audio Input (left & right channel)
  • (1) VGA Input
  • (1) BNC Video Output for relay
  • Built-in Speakers
  • 12V DC
  • VESA Wall Mount Compatible

What's Included?

  • (1) 15inch Flat Screen Color Liquid Crystal Display TFT Monitor
  • (1) Power Supply
  • (1) VGA cable
  • (1) Audio Cable
  • (1) User Manual

Specifications

LCD Display Size15” Active Matrix TFT LCD Panel
Max Resolution1024(H) x 768(V) XGA
Supported ResolutionsVGA, SVGA, XGA
Pixel Pitch0.294mm
Color Depth16.2 million
Contrast Ratio500 : 1 (Typ)
Brightness250 cd/m²
Viewing AngleHorizontal: 140°, Vertical: 130°
Response Time12 ms
Image Processing3D Comb Filter
Signal InputVGA Analog D-sub; Composite BNC
Audio-in (speaker)3 Watts x 2
ConnectionsD-sub VGA, Power DC IN, BNC IN x1, BNC OUT x1, Composite Audio-in (2x RCA)
Power Consumption30 Watts (Max.); 3 Watts (standby)
Power AdapterAC Input: 100-240V~1.8A, 50-60HzDC
DC Output: 12V/5A
Front ControlMenu, Down, Up, Auto Adjustment, Power
OSD FunctionContrast, Brightness, Auto Image Adjust, H. Position, H. Phase, V. position, H. Width, Sharpness, Color Temperature, Hue, Saturation, Flesh tone,OSD position, Language, Recall, Volume
Monitor Size13.59" (W) x 12.09" (H) x 5.5" (D
Monitor Size Without Stand13.59" (W) x 10.79" (H) x 1.22" (D)
Weight 6 lbs
Wall MountVESA 75; Screw Spec: M4x8
Safety & EMIFCC-B, CE
Warranty3 year

More

More

Return Policy30 Days Return Policy
Warranty1 Year
