16 Channel Passive Video Balun Receiver & Power Supply Hub

SKU: BPH16

Write a Review

Availability: In stock

$299.00
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

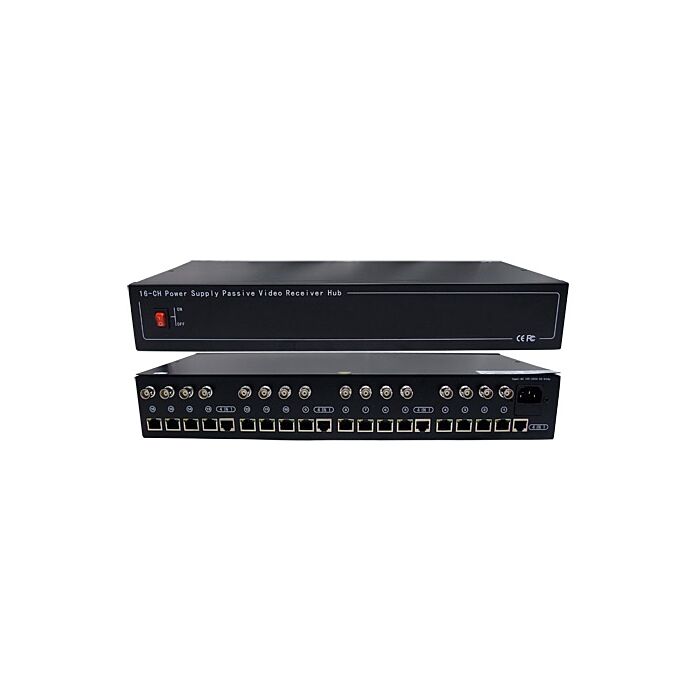

16 Camera Video Balun Receiver with Power Distribution capabilities, allows for video and power transmission to analog cameras using CAT5e or CAT6 cable with our video power baluns. This 16 channel passive video power balun hub allows you to consolidate your power supply into one source as opposed to 16 individual power adapters, or using a separate video balun hub and cctv power distribution box.

Possible system setups:

Method 1: Direct connection to video balun and DVR
Connect DVR directly to the BNC video outputs on the receiver, and run network or UTP twisted pair cable to camera location (max 1300ft wire run) and terminate with passive video power baluns. Note max power distance is 750ft for this type of video/power balun hub.




Method 2: Relay method
Use this video power balun hub as a relay point between a camera and 16 channel video balun receiver that is active or passive. You can use this hub up to 750ft away from a video power balun connected to a camera to carry both video power signals. Video signals from up to 4 cameras can be retransmitted or relayed using a single RJ45 port labeled "4 in 1" to another multi-channel video balun receiver. This relay method allows the user to transmit video up to an additional 1300ft from this hub. This method is very useful in scenarios where several camera signals need to be consolidated to make wiring neater for large business installations with long cable runs.



What's Included?

Specifications

Transceiver Type16 CH Passive Video Balun Receiver & Power Supply Hub (VPS)
Video/Power Inputs16 x RJ45
Video Output16 x BNC for connection to DVR, 2 x RJ45 for relay to multi-channel balun receiver
VideoFrequency Response Range: DC-5MHz;  Common-Mode / Differential-Mode rejection: 5KHz-5MHz 60dB type
Compatible Wire Type24-16AWG UTP CAT5 or higher; DC loop resistance <= 18Ω/ 100m; Differential capacitance: 62pF/m (max)
ImpedanceUTP or Connection or RJ-45: 100Ω;  BNC Coax:75Ω
Power Input110V AC
Power Output12VDC 1.06 Amp (Total 8.5 Amp)
Power Transmission12V DC up to 750 ft Via UTP CAT5e or CAT6
Dimensions19.4" x 6.7" x 1.8"
Weight7.1 lbs

More

More

Return Policy30 Days Return Policy
Warranty1 Year
