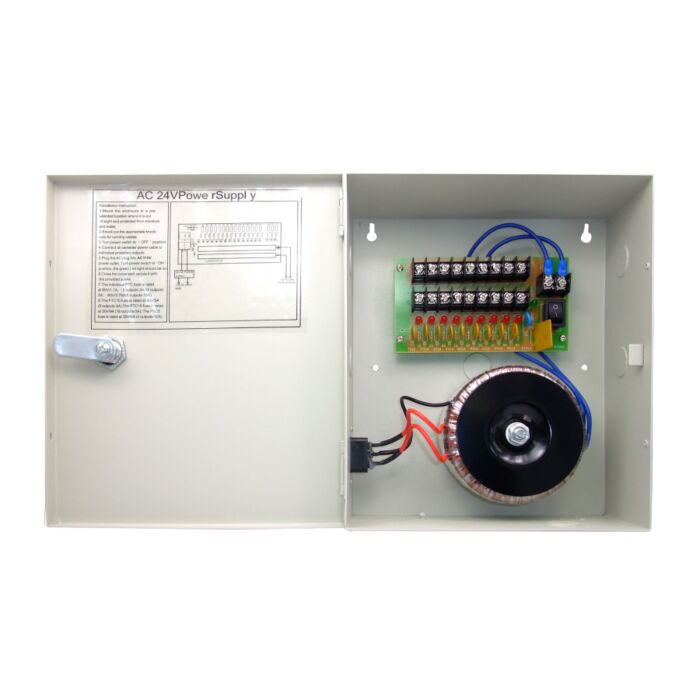

24V AC 9 Port 10 Amp Power Supply Box
$120.00
Overview
24V Ac Power Box - Provides centralized 24V AC power distribution for compatible cameras, heater blower housings, and other 24V AC accessories.
9 Port Output - Rated for 10 amps total with about 1.1 amps available per port.
Ptc Fuse Protection - Uses PTC fuse protection with LED indicators for each channel, a power switch, regulated filtered output, and surge protection.
110V Ac Input - Includes the power cable needed to connect the box to a standard 110V outlet.
Check Voltage First - Use only with devices that accept 24V AC power. Do not connect 12V DC equipment unless a proper converter is used.
Enclosure Size - Measures about 9 5/8 x 8 1/8 x 3 1/2 inches and weighs about 8.25 lb.
This power box is meant for use with security cameras that accept 24V AC and other peripherals like heather blower enclosures for box cameras. Please make sure your cameras accept 24VAC before using this power box with them. This power box has 9 ports and is rated at 10 Amps total, which equates to an output of 1.1A per port.
Power distribution units such as these are not only preferred by installers, but also every day users installing their own security camera system. Please select the power box you need based on the voltage and amperage required by the device you are powering.
What' Included?
- (1) 24V AC Power Distribution Box
- (1) Power Cable to connect box to 110V outlet
Specifications
- 24V AC, 9CH
- PTC Fuse
- 10Amps Power Box
- Fuse Rating: 2.3 Amp
- 110V AC input
- Power on/off switch
- LED indicator for each channel
- Surge protected
- Regulated and filtered
- Dimensions: 9 5/8" x 8 1/8" x 3 1/2" (HxWxD)
- Weight: 8.25lbs
| Brand | AvaEye |
|---|---|
| Warranty | None for accessories |
| Return Policy | Accessories are non-returnable, non-refundable. |
