Description
Details

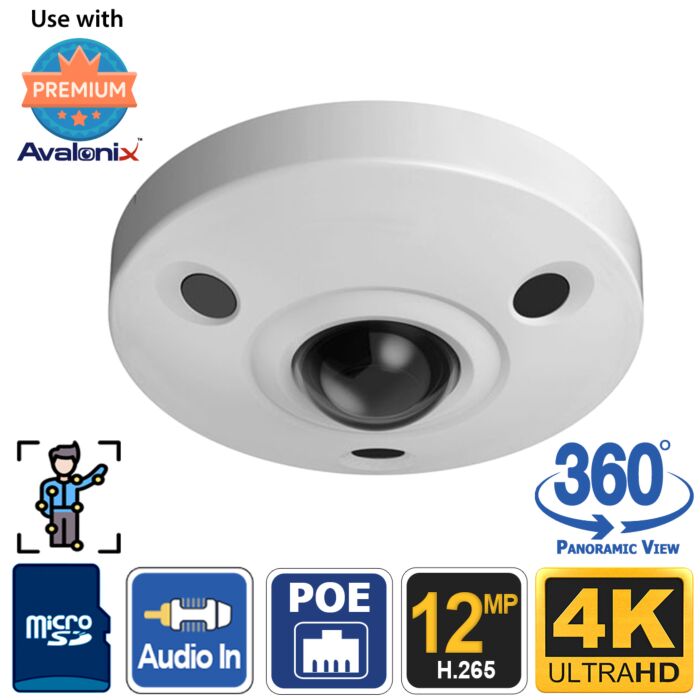

Here we have the all new Fisheye 360 Dome Camera. This 4K IP dome camera is top of the line in visual quality and supports some very unique and impressive features. It has a 12MP sensor and can record video either at 12MP resolution or 4K resolution in realtime 25fps. This 360 degree dome camera is meant to be mounted on a ceiling or wall where it can truly make use of the incredible range of its fisheye lens to capture a wide view. The angle of view is a full 360 degrees, meaning one camera can easily cover a large scale area for general observation. This fisheye dome camera has a fixed 1.98mm lens that can be adjusted within the software for some very impressive ePTZ like effects. This camera can monitor up to 4 different areas at once, instead of having 4 cameras pointed in different directions. For consumers looking for one camera to capture detail up to 30ft in a 360 pattern, with an incredible 4K resolution, we strongly suggest you try out this camera.
Powering the camera is easy. You can use either our PoE Switches, or a 12V DC power adaptor. Like all of our IP cameras, it can be streamed directly to a computer, NVR, mobile phone, or tablet device. To record video and play it back with the dewarp-feature shown in the video below, one of the following NVRs is required:
- 16 Channel 4K NVR PoE H.265, NVR516P4K
- 16 Channel PoE 4K NVR, H.265+, NVR5164KPOE
- 16 Channel PoE 4K NVR with RAID, H.265+, NVR584K16POE
- 32 Channel 4K NVR H.265, NVR584K32
- 32 Channel 4K NVR H.265 RAID PoE, NVR584K32POE
- 64 Channel 4K NVR, NVR584K64
- Hot Swap 64 Channel 4K NVR, NVR4K64A
- 64 Channel Hot Swap 4K NVR, 16 SATA, RAID, NVR644KE
- 128 Channel NVR 4K, NVR1284KR
If you're interested in watching what this camera has to offer, please watch the video below that demostrates how this panoramic camera works.
How To Set Custom Views For Your Panoramic Security Camera in Smart PSS
Features
- 12MP Network IP Camera
- 12MP Video Resolution (4000 x 3000 pixels)
- 4K Video Resolution 3840x2160 pixels
- H.265 and H.264 Video Encoding
- Digital WDR, 3D Digital Noise Reduction, Back Light Compensation
- Day & Night IR Cut Filter
- 1.98mm Fixed Lens for Fisheye 360° view
- 33ft Night Vision
- De-Warp feature supported with select CCTV Camera World NVRs
- Weather proof IP67 for outdoor use
- Vandal Resistant IK10
- Suitable for Indoor or Outdoor Use
- Usable with NVR recorder, PC Windows Software, or Mobile Applications
- Accepts PoE or 12V DC Power
What's included?
Specifications
| Image Sensor | 1/1.7" 12MP Progressive Scan CMOS | ||||||||||||||||||||||||||||||||||
| Effective Pixels | 4000 (H) x 3000 (V) | ||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual, 1/- 1/100,000s | ||||||||||||||||||||||||||||||||||
| Minimum Illumination | 0.001 Lux F2.8 Lux (Color), 0 Lux IR On | ||||||||||||||||||||||||||||||||||
| S/N Ratio | More than 50dB | ||||||||||||||||||||||||||||||||||
| IR Distance | Up to 33ft | ||||||||||||||||||||||||||||||||||
| IR On/Off Control | Auto, Manual | ||||||||||||||||||||||||||||||||||
| IR LEDs | 3 IR LED | ||||||||||||||||||||||||||||||||||
| Lens Type | Fixed Fisheye | ||||||||||||||||||||||||||||||||||
| Focal Length | 1.98mm | ||||||||||||||||||||||||||||||||||
| Max Aperture | F2.8 | ||||||||||||||||||||||||||||||||||
| Angle of View | H: 180°, V: 180° | ||||||||||||||||||||||||||||||||||
| Focus Control | Fixed | ||||||||||||||||||||||||||||||||||
| Max Distances* | |||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||
| Compression | H.265, H.264 | ||||||||||||||||||||||||||||||||||
| Video Analytics | Tripwire, Intrusion, Heat Map | ||||||||||||||||||||||||||||||||||
| Streaming Capability | 3 Streams (Main Stream, Sub Stream 1, Sub Stream 2) | ||||||||||||||||||||||||||||||||||
| Resolution | 12MP (4000x3000), 8MP (2880x2880), 6MP (2880x2160), 3MP (2048x1536), 1.3MP (1280x960), D1 (704x576), CIF(352x288) | ||||||||||||||||||||||||||||||||||
| Frame Rate | Main Stream: 12MP (1-25fps), 8MP (1-30fps) | ||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR, VBR | ||||||||||||||||||||||||||||||||||
| Bit Rate | H.265: 3 - 9984Kbps | ||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR), Color, B/W | ||||||||||||||||||||||||||||||||||
| BLC Mode | BLC, HLC, WDR 120db | ||||||||||||||||||||||||||||||||||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||||||||||||||||||||||||||||||||
| Gain Control | Auto, Manual | ||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||
| Motion Detection | Off / On (4 Zone, Rectangle) | ||||||||||||||||||||||||||||||||||
| Region of Interest | Off / On (4 Zone) | ||||||||||||||||||||||||||||||||||
| Smart IR | Yes | ||||||||||||||||||||||||||||||||||
| Digital Zoom | 16X | ||||||||||||||||||||||||||||||||||
| Defog | Supported | ||||||||||||||||||||||||||||||||||
| Flip | N/A | ||||||||||||||||||||||||||||||||||
| Mirror | N/A | ||||||||||||||||||||||||||||||||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||||||||||||||||||||||||||||||||
| Audio Input | Built-in Mic, Audio Line and Out | ||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a/G.711mu/G.726/AAC | ||||||||||||||||||||||||||||||||||
| Alarm | 2 channel In: 5mA 5VDC | ||||||||||||||||||||||||||||||||||
| Ethernet | RJ-45 100Mbps/1000Mbps | ||||||||||||||||||||||||||||||||||
| Protocols | HTTP, HTTPs, TCP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | ||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF compatible with select NVRs and software | ||||||||||||||||||||||||||||||||||
| Max. User Access | 20 Users | ||||||||||||||||||||||||||||||||||
| Recording Method | NVR, NAS, Local PC, Optional MicroSD card 128GB | ||||||||||||||||||||||||||||||||||
| Web Viewer | IE** | ||||||||||||||||||||||||||||||||||
| Smart Phone | iOS or Android | ||||||||||||||||||||||||||||||||||
| Power Supply | 12V DC or PoE (802.3af) | ||||||||||||||||||||||||||||||||||
| Power Consumption | 12W Max | ||||||||||||||||||||||||||||||||||
| Operating Conditions | -22°F – +140°F, Less than 95% RH | ||||||||||||||||||||||||||||||||||
| Weather Protection | IP67 | ||||||||||||||||||||||||||||||||||
| Vandal Resistance | IK10 | ||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||
| Dimensions | 5.9" x 1.88"(diameter x height) not including pigtail | ||||||||||||||||||||||||||||||||||
| Net Weight | 1.3 lbs | ||||||||||||||||||||||||||||||||||
| Certifications | CE, UL, FCC Part 15 Subpart B | ||||||||||||||||||||||||||||||||||
*Distance is calculated based on sensor specifications and lab test results.
**Internet Explorer required with admin rights for access to webserver in camera.
More
More
| Return Policy | 30 Days Return Policy |
|---|---|
| Signal Type | IP |
| Camera Resolution | 4K 12MP |
| Image Sensor | 1/2.3" 12MP CMOS Sensor |
| Night Vision | 32ft |
| Lens | 1.57mm |
| Optical Zoom | No |
| Angle of View | 360° |
| Wide Dynamic Range (WDR) | DWDR |
| Microphone | Built-in |
| Pan Tilt Zoom | No |
| Video Analytics | No |
| Important Features | 360 Degree View with ePTZ function |
| SD Card Slot | Yes |
| Power Input | 12V DC / PoE |
| Operating Temperature | -22°F to +140°F |
| Dimensions | 2.8" x 6" (diameter x height) |
| Weight | 1.3 lbs |
| Weather Proof | Yes, IP67 |
| Camera Color | White |
| Video Encoding | H.265/H.264 |
| Warranty | 1 Year |
Reviews
Product Questions
You need to log in to ask a question.
Total 8 question(s)
4k 360
Does this come in black?
Question by: Michael on: 2016-09-09
No it is only available in white.
Answer by: Tech Support on: 2016-09-09
Is this ip camera has audio recording.
Question by: Sunil on: 2016-11-11
Yes there is a built-in mic, and also the option to add your own external mic.
Answer by: Tech Support on: 2016-11-14
When you play back the video on a 4k camera system, can you slow the video down without losing quality?
Question by: russ on: 2017-08-16
Playing back at a slow speed does not degrade quality. You can watch each instance frame by frame. If there is any blurriness it would be due to an object moving fast.
Answer by: Tech Support on: 2017-08-16
Can i use this camera with a lorax DVR model LNR6108?
Question by: Dave on: 2017-08-30
The lorex unit you mentioned will not allow you to see this camera in 12mp mode, and neither will it support the de-warp feature. It will only support the 4k video mode in 360 degree view. We recommend one of the following NVRs to take full advantage of this camera.
- 16 Channel 4K NVR PoE H.265, NVR516P4K
- 16 Channel PoE 4K NVR, Enterprise Series, NVR5164KPOE
- 16 Channel PoE 4K NVR, 8 SATA Enterprise Series, NVR8516P4K
- 32 Channel 4K NVR H.265 with RAID, NVR584K32
- 64 Channel 4K NVR with RAID, NVR584K64
Answer by: Tech Support on: 2017-09-01
Does this camera have IR features? What the visibility of the recording in the dark?
Question by: Dirk on: 2018-02-04
As stated in the product description the camera has 32ft of night vision.
Answer by: Tech Support on: 2018-02-07
Has this been tested with Blue Iris? What about Mobilinc?
Question by: Randy on: 2018-04-21
Our fixed lens and motorized lens security cameras are supported by Blue Iris. You will need to contact Blue Iris to determine whether their software support de-warping of video produced by 360 degree panoramic cameras.
Answer by: Tech Support on: 2018-04-23
Can this camera be mounted facing down from a ceiling tile? Or does it have to be wall mounted.
Question by: Richard on: 2018-05-04
Yes it can be mounted from a ceiling tile. It can be mounted either on a ceiling tile or on a wall.
Answer by: Tech Support on: 2018-05-04
What is the frames per second (FPS) rating for this camera?
Question by: Jeffrey Hunt on: 2019-06-14
As noted in the specifications table, it can do 25 fps at 12MP and 30fps at 8MP. Please be sure to watch the video on how to use the camera's dewarp feature with the NVRs recommended in the product description.
Answer by: Tech Support on: 2019-06-14
